Wireless transducerized BMTH 4004-Q 3/8
Wireless transducerized BMTH 4004-Q 3/8
Suitable with the Industry 4.0 requirements, BMTH4004-Q 3/8 wireless tool with built in torque transducer and angle encoder combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool.
Technical details
Benefits
• Torque target accuracy >= +/- 7% within a capability Cmk>1.67
• Brushless motor
• Torque and angle strategies
• Advanced features
• Light and well balanced tool
• Clear and detailled AMOLED display
• Program selection on display
• Torque and speed setting on display for each program
• Embedded web server for tool setting on local network
• Real time torque data and curve display on PC software
• Real time fastening data output by WiFi or USB port
• Modbus, DOGANet, Open Protocol, Profinet, Ethernet IP proctocols
• Easy parameters setting
Product description

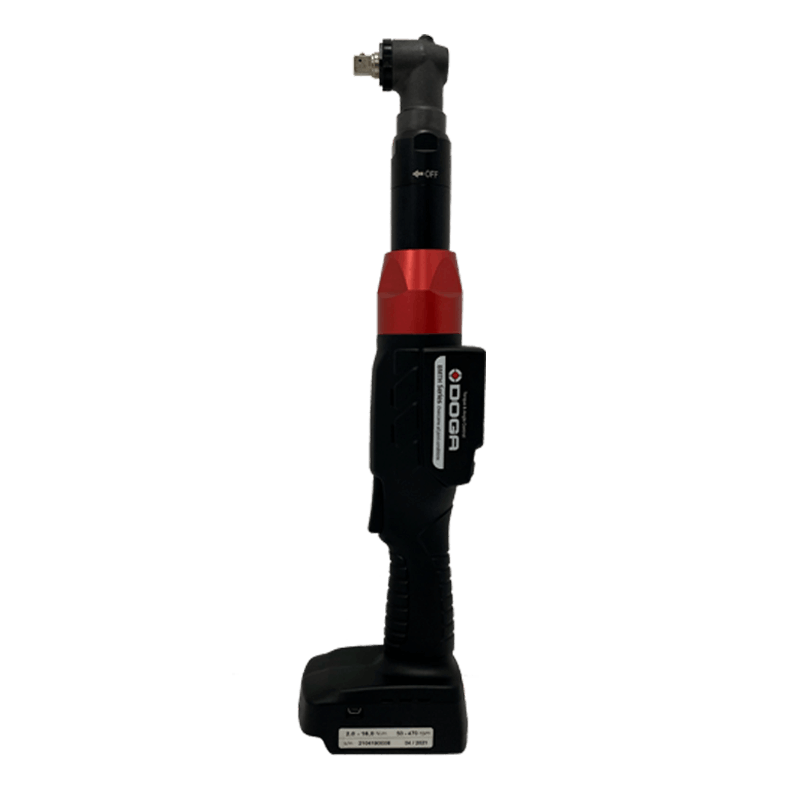

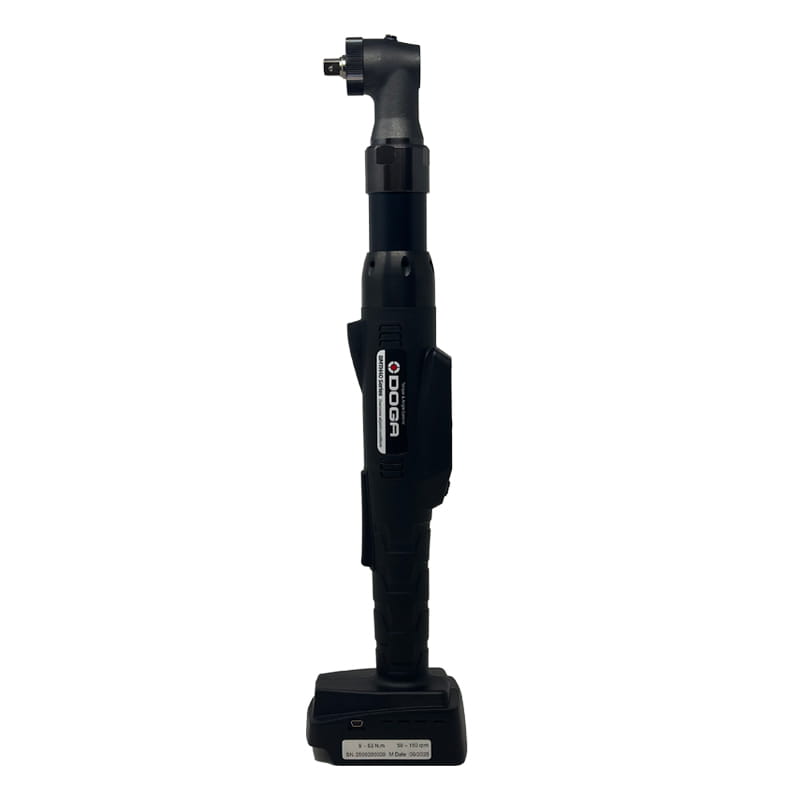

BMTH4004-Q 3/8 wireless screwdriver enjoys an intelligent control mode with torque transducer and angle encoder ensuring high assembly precision.
Closed-loop control allows real-time correction of the current and speed to precisely reach the torque target.
Grâce à son écran couleur intuitif, l’opérateur accède facilement à la sélection de programmes (31 programmes et 2 multiséquences).
Cet écran affiche aussi les consignes de couple et de vitesse. Il permet l’ajustement de ces consignes.

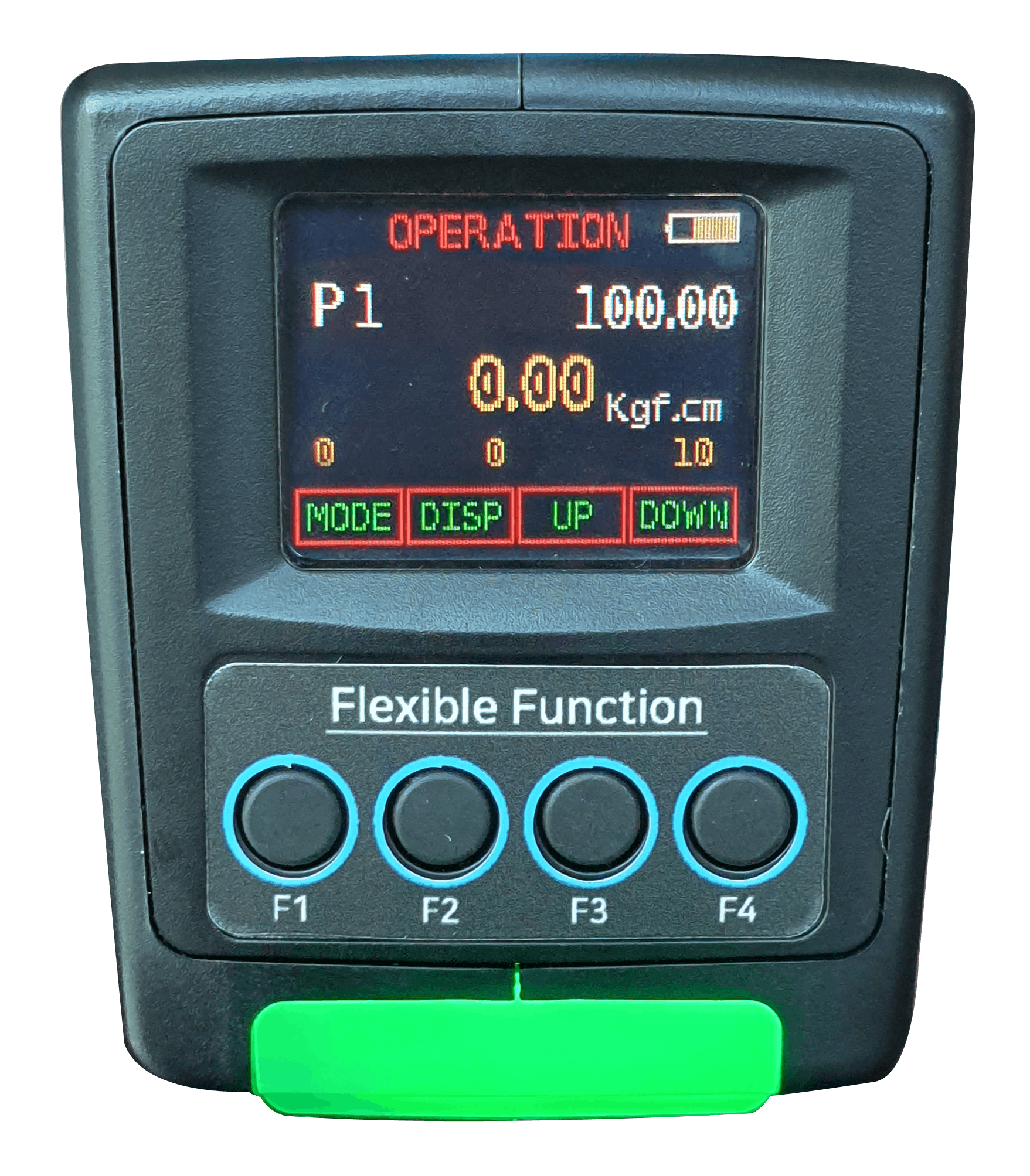

Operator can easily select presets (15 programs and 2 multisequences) thanks to intuitive embedded color display.
This screen display also torque and speed target as well as the adjustment of these settings.
BMT screwdrivers combine innovative technologies adapted to the requirements of Industry 4.0.
• Access to each screwdriver web server connected on the local area network via a web browser for setting, saving or loading parameters, viewing graph and results.
• In addition to the embedded web server, ParaMon4 software allows you to configure and monitor data on a computer in real time via a WiFi or USB connection.
• Real time fastening data output by WiFi with DOGANet, Open Protocol Modbus, Profinet, or Ethernet IP.
• Full tightening settings read and write by WiFi with Modbus protocol
• WiFi Remote control.
Associated products
ParaMon-Pro X controller
DOGANet software for collecting and analyzing assembly data
A complete and ready-to-use software that meets your assembly process traceability needs with your DOGA torque and angle controlled screwdrivers. Easy to install on a network-connected PC
Resources
4Software
ParaMon software
For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database.
- Controller firmware and LCD firmware
Update compatible with any actual tool and controller (except MDCv1 legacy product).
Files version:
- BM_FW v1.34.3 + XML v1.10
- BM_FW_v1.54.5_RS9116+XML_v1.10
- BMT_FW v1.44.3 + XML v1.10
- BMT_FW_v1.54.5_RS9116+XML_v1.10
- MDC22_MINI_FW_v3.01.2+XML_v1.10
- MDC26&32_FW_v2.32.7+XML_v1.10
- MDTC38_Normal_FW_v1.34.4+XML_v1.12
- ParaMon_v3.00.8_20240517
- ParaMon III user manual - DOC.60505
- 60205 ParaMon XML vs Firmware 11-2025
2Technical documentation
COM Modbus BM / BMT protocol and registers lists - DOC.60427 - DOC.60451 - DOC.60452
- Com Protocole MODBUS BM/BMT – DOC.60427
- Modbus BM address and function – DOC.60451
- Modbus BMT address and function – DOC.60452
Instruction manual - Wireless DC tool - Transducerized BMT series - DOC.60425
- BMT specification
- Battery & charger specifications
- Operation
- Connections overview
- Fastening parameters for preset
- Screwdriver setup with ParaMon AirT & web server
- BMT web serveur
- Firmware upgrade
- Modbus com protocol
- Maintenance
- Safety
- Standards
- Appendices
