Angle head wireless DC tool - BM / BMT series

Angle head wireless tools are designed in both current control BMH series and transducerized BMTH series. Angle head can be rotated through 360° which allow access to hard-to-reach areas in complete autonomy.
They have 15 tightening programs with torque and angle control and 2 multi-sequence programs and are designed to meet your production rates and your repeatability requirements. Combined with the ParaMon-Pro X controller, you monitor real-time data from multiple tools or a station sequencing with process visual guidance.

Produits

  • Angle head wireless DC screwdriver BMH 3204-A/S with barcode scanner
    Code 4-1055074

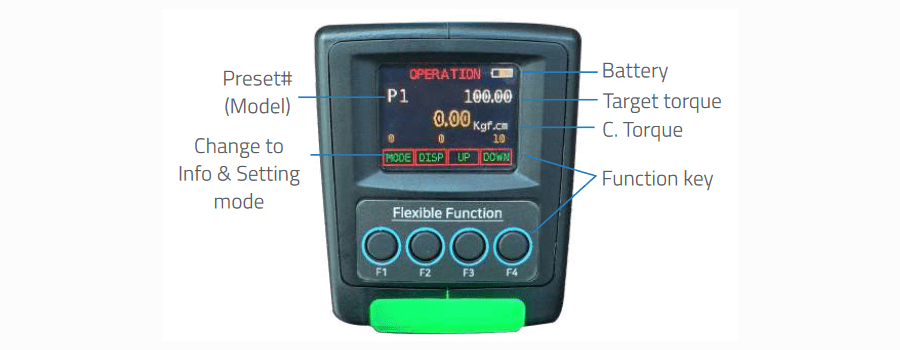

    Suitable with Industry 4.0, BMH3204-A/S torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is 1/4 " Hex. female.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    0.4 Nm lbf.in
    Max Torque
    4.4 Nm lbf.in
    Min speed rotation
    100 tr/min rpm
    Maxi speed rotation
    1800 tr/min rpm
    Drive Size
    1/4" F/Hex
    Weight
    1.4 kg lbs
    Shape
    Angle head
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3204-Q/S 3/8 with barcode scanner
    Code 4-1055075

    Suitable with Industry 4.0, BMH3204-Q/S 3/8 torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is square 3/8 " male.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    0.4 Nm lbf.in
    Max Torque
    4.4 Nm lbf.in
    Min speed rotation
    100 tr/min rpm
    Maxi speed rotation
    1800 tr/min rpm
    Drive Size
    3/8 Square
    Weight
    1.4 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3206-A/S with barcode scanner
    Code 4-1055076

    Suitable with Industry 4.0, BMH3206-A/S torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is 1/4 " Hex. female.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    0.8 Nm lbf.in
    Max Torque
    6.4 Nm lbf.in
    Min speed rotation
    100 tr/min rpm
    Maxi speed rotation
    1250 tr/min rpm
    Drive Size
    1/4" F/Hex
    Weight
    1.4 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3206-Q/S 3/8 with barcode scanner
    Code 4-1055077

    Suitable with Industry 4.0, BMH3206-Q/S 3/8 torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is square 3/8 " male.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    0.8 Nm lbf.in
    Max Torque
    6.4 Nm lbf.in
    Min speed rotation
    100 tr/min rpm
    Maxi speed rotation
    1250 tr/min rpm
    Drive Size
    3/8 Square
    Weight
    1.4 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3211-A/S with barcode scanner
    Code 4-1055078

    Suitable with Industry 4.0, BMH3211-A/S torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is 1/4 " Hex. female.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    1.5 Nm lbf.in
    Max Torque
    11.3 Nm lbf.in
    Min speed rotation
    50 tr/min rpm
    Maxi speed rotation
    690 tr/min rpm
    Drive Size
    1/4" F/Hex
    Weight
    1.6 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3211-Q/S 3/8 with barcode scanner
    Code 4-1055079

    Suitable with Industry 4.0, BMH3204-A/S torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is square 3/8 " male.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    1.5 Nm lbf.in
    Max Torque
    11.3 Nm lbf.in
    Min speed rotation
    50 tr/min rpm
    Maxi speed rotation
    690 tr/min rpm
    Drive Size
    3/8 Square
    Weight
    1.6 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3216-A/S with barcode scanner
    Code 4-1055080

    Suitable with Industry 4.0, BMH3216-A/S torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is 1/4 " Hex. female.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    2 Nm lbf.in
    Max Torque
    15.7 Nm lbf.in
    Min speed rotation
    50 tr/min rpm
    Maxi speed rotation
    470 tr/min rpm
    Drive Size
    1/4" F/Hex
    Weight
    1.6 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3216-Q/S 3/8 with barcode scanner
    Code 4-1055081

    Suitable with Industry 4.0, BMH3216-Q/S 3/8 torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is square 3/8 " male.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    2 Nm lbf.in
    Max Torque
    15.7 Nm lbf.in
    Min speed rotation
    50 tr/min rpm
    Maxi speed rotation
    470 tr/min rpm
    Drive Size
    3/8 Square
    Weight
    1.6 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3224-A/S with barcode scanner
    Code 4-1055082

    Suitable with Industry 4.0, BMH3224-A/S torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is 1/4 " Hex. female.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    3.9 Nm lbf.in
    Max Torque
    23.5 Nm lbf.in
    Min speed rotation
    50 tr/min rpm
    Maxi speed rotation
    310 tr/min rpm
    Drive Size
    1/4" F/Hex
    Weight
    1.6 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
  • Angle head wireless DC screwdriver BMH 3224-Q/S 3/8 with barcode scanner
    Code 4-1055083

    Suitable with Industry 4.0, BMH3224-Q/S 3/8 torque and angle current control battery screwdriver combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and view easily the results directly on the tool. Drive size is square 3/8 " male.

    Type of screwdriver
    Visseuse asservie autonome
    Min Torque
    3.9 Nm lbf.in
    Max Torque
    23.5 Nm lbf.in
    Min speed rotation
    50 tr/min rpm
    Maxi speed rotation
    310 tr/min rpm
    Drive Size
    3/8 Square
    Weight
    1.6 kg lbs
    Shape
    Angle head
    Starting system
    Lever
    Power
    Batterie Li-ion 25,2 V
    Functionalities
    Torque programmable,
    Network communication,
    Integrated barcode scanner
    Suitable controller
    Paramon-Pro X (en option)
