Wireless transducerized BMTH 3216-Q3/8
Wireless transducerized BMTH 3216-Q3/8

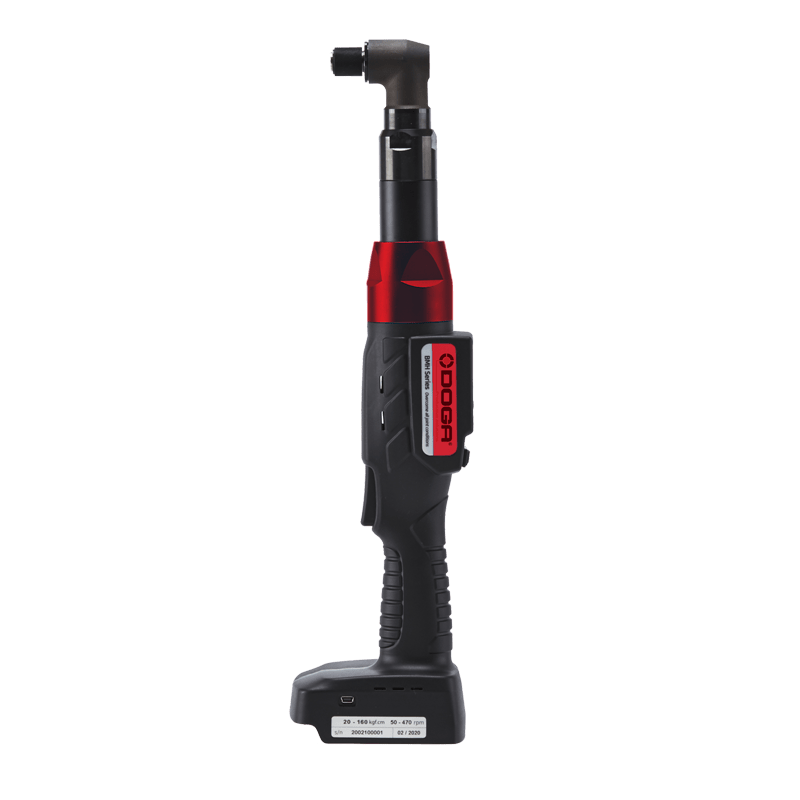

Suitable with Industry 4.0 requirements, BMTH3216-Q3/8 wireless tool with built in torque transducer and angle encoder combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and easily view the results directly on the tool. Drive size is square 3/8 " male.
Technical details
Benefits
- Torque target accuracy >= +/- 7% within a capability Cmk>1.67
- Average repeatability of +/- 2%
- Torque and angle strategies
- Advanced features
- Not sensitive to joint type
- Light and well balanced tool
- Clear and detailled AMOLED display
- Program selection on display
- Torque and speed setting on display for each program
- Embedded web server for tool setting on local network
- Real time torque data and curve display on PC software
- Real time fastening data output by WiFi or USB port
- Modbus protocol
- Easy parameters setting
Product description
BMTH3216-Q3/8 wireless screwdriver enjoys an intelligent control mode with torque transducer and angle encoder ensuring high assembly precision.
Closed-loop control allows real-time correction of the current and speed to precisely reach the torque target.

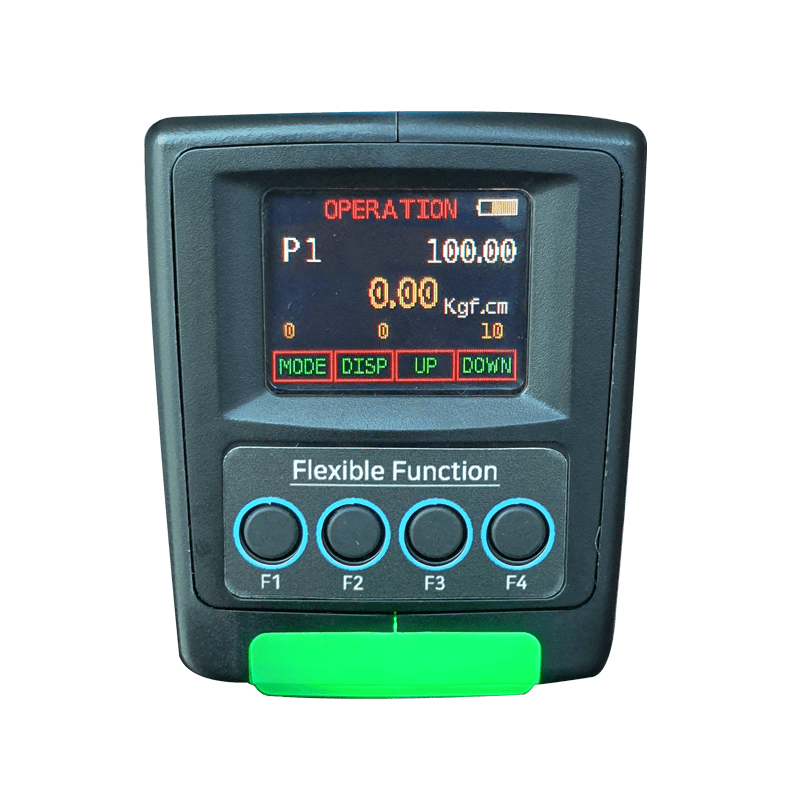

Operator can easily select presets (15 programs and 2 multisequences) and view tightening results thanks to intuitive embedded color display.
This screen display also torque and speed target as well as the adjustment of these settings.
BM screwdrivers combine innovative technologies adapted to the requirements of Industry 4.0.
- Access to each screwdriver web server connected on the local area network via a web browser for setting, saving or loading parameters, viewing graph and results.
- In addition to the embedded web server, ParaMon software allows you to configure and monitor data on a computer in real time via a WiFi or USB connection.
- Real time fastening data output by WiFi with Modbus protocol
- Full tightening settings read and write by WiFi with Modbus protocol
- WiFi Remote control with Modbus protocol
“BMTH” angle head models are designed to be equipped with geared offset heads for applications in narrow environments.
Dedicated parameters allow customized settings for both open and closed geared offset heads.
Videos
Associated products
ParaMon-Pro X controller
Resources
1Commercial documentation
Wireless advanced transducerized tools - BMT serie - DOC.60407
- A range of powerful and connected wireless transducerized screwdrivers
- Accessories
- Paramon-Pro X interface controller (optional)
- Related products
- Our services
4Software
ParaMon software
The compressed file contains 2 generations of software and screwdriver firmware.
You should use the generation corresponding to the firmware currently installed on your screwdriver or controller in order to update it to the latest version without changing settings.
- ParaMon III for GEN1 screwdrivers with firmware versions v2.3.xx and v3.xx.xx
- ParaMon4 for GEN2 screwdrivers with firmware versions v4.xx.xx and v5.xx.xx
Upgrading from GEN1 to GEN2 is possible but will result in incompatibilities if your equipment communicates with an existing automation system, as well as a loss of settings (please contact us first).
Please note that BM(T) screwdrivers have two distinct firmware versions depending on the Wi-Fi module model installed. If the character ‘+’ appears after the text ‘network info’, the firmware to use is the one with a filename containing xxx_9116_xxx.bin.
Please refer to document 60205, which lists all firmware versions.
Files version:
• Readme
• 60205 ParaMon XML vs Firmware 07-2026
ParaMon III:
• BM_FW v1.34.6 + XML v1.10
• BM_FW_v1.54.6_RS9116+XML_v1.10
• BMT_FW v1.44.7 + XML v1.11
• BMT_FW_v1.54.7_RS9116+XML_v1.11
• MDC22_MINI_FW_v3.01.2+XML_v1.10
• MDC26&32_FW_v2.32.7+XML_v1.10
• MDTC38_Normal_FW_v1.34.5+XML_v1.13
• ParaMon_v3.00.9_20260402
• ParaMon III manuel d'utilisation - DOC.41014
• ParaMon III user manual - DOC.60505
ParaMon4:
• BM_FW_v4.0.12+XML_v4.2.1
• BM_FW_v4.3.12_RS9116+XML_v4.2.1
• BMT_FW_ v4.0.13+XML_v4.2.1
• BMT_FW_ v4.3.13_RS9116+XML_v4.2.1
• BMT40_FW_v4.0.14+XML_v4.2.1
• MDC_FW_v4.0.12+XML_v4.2.1
• MDC_MINI_FW v4.0.12+XML_v4.2.1
• MDTC_MINI_FW_v4.0.14+XML_v4.2.1
• MDTC38_FW_v4.0.14+XML_v4.2.1
• ParaMon_4.1.2_net8.0_20260508
• ParaMon-Pro X v4.2.2 20251216
• Mise à jour firmware vers Gen 2
• Update to Gen 2 firmware
Download the file in zip
2Technical documentation
COM Modbus BM / BMT protocol and registers lists - DOC.60427 - DOC.60451 - DOC.60452
- Com Protocole MODBUS BM/BMT – DOC.60427
- Modbus BM address and function – DOC.60451
- Modbus BMT address and function – DOC.60452
Instruction manual - Wireless DC tool - Transducerized BMT series - DOC.60425
- BMT specification
- Battery & charger specifications
- Operation
- Connections overview
- Fastening parameters for preset
- Screwdriver setup with ParaMon AirT & web server
- BMT web serveur
- Firmware upgrade
- Modbus com protocol
- Maintenance
- Safety
- Standards
- Appendices
