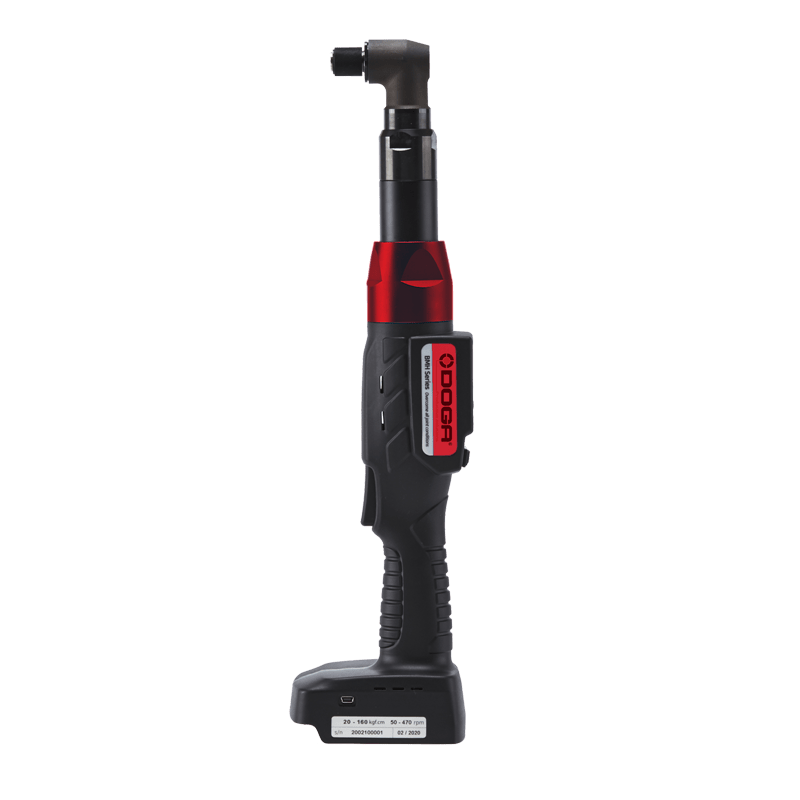

Wireless transducerized BMTH 3206-A
Wireless transducerized BMTH 3206-A
Suitable with Industry 4.0 requirements, BMTH3206-A wireless tool with built in torque transducer and angle encoder combines autonomy, multi-torque, multi-strategy, and connectivity for optimized horizontal tightenings. With its embedded digital screen, you program and easily view the results directly on the tool. Drive size is 1/4 " Hex. female.
Technical details
Benefits
- Torque target accuracy >= +/- 7% within a capability Cmk>1.67
- Average repeatability of +/- 2%
- Torque and angle strategies
- Advanced features
- Not sensitive to joint type
- Light and well balanced tool
- Clear and detailled AMOLED display
- Program selection on display
- Torque and speed setting on display for each program
- Embedded web server for tool setting on local network
- Real time torque data and curve display on PC software
- Real time fastening data output by WiFi or USB port
- Modbus protocol
- Easy parameters setting
Product description
BMTH3206-A wireless screwdriver enjoys an intelligent control mode with torque transducer and angle encoder ensuring high assembly precision.
Closed-loop control allows real-time correction of the current and speed to precisely reach the torque target.

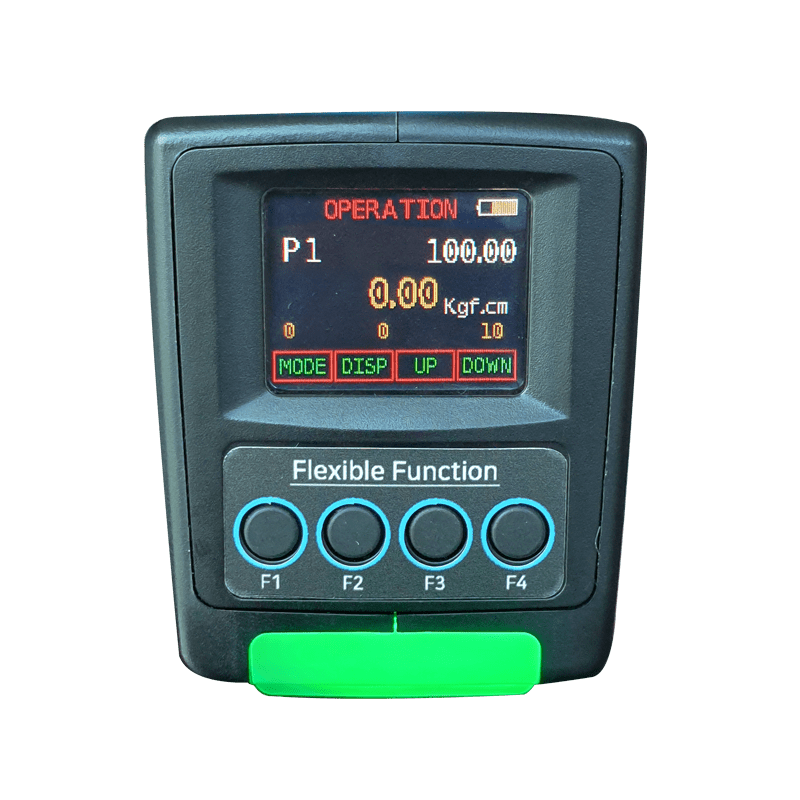

Operator can easily select presets (15 programs and 2 multisequences) and view tightening results thanks to intuitive embedded color display.
This screen display also torque and speed target as well as the adjustment of these settings.
BM screwdrivers combine innovative technologies adapted to the requirements of Industry 4.0.
- Access to each screwdriver web server connected on the local area network via a web browser for setting, saving or loading parameters, viewing graph and results.
- In addition to the embedded web server, ParaMon software allows you to configure and monitor data on a computer in real time via a WiFi or USB connection.
- Real time fastening data output by WiFi with Modbus protocol
- Full tightening settings read and write by WiFi with Modbus protocol
- WiFi Remote control with Modbus protocol
“BMTH” angle head models are designed to be equipped with geared offset heads for applications in narrow environments.
Dedicated parameters allow customized settings for both open and closed geared offset heads.
Videos
Associated products
ParaMon-Pro X controller
Resources
1Commercial documentation
Wireless advanced transducerized tools - BMT serie - DOC.60407
- Main Features
- Model specification
- Technical details
- Tool dimension
- Package
- Flexible function
- Connection
- Paramon-Pro X interface (optional)
- Our services
4Software
ParaMon softwares
For BM, BMT, MDCv2, MDC Mini and MDTC series
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database – dedicated to torque and angle tools and ParaMon-Pro X controllers.
- ParaMon Unified:
PC software for parameters setup and real time monitoring – only for Torque and Angle tools.
- Controller firmware and LCD firmware
For MDC and MDTC only.
Update compatible with any actual tool and controller (except MDCv1 legacy product.
Files version:
- BM_FW_v1.33.5+XML_v1.8
- BMT_FW_v1.43.5+XML_v1.9
- MDC22_MINI_FW_v3.00.5+XML_v1.8
- MDCv2_26&32_FW_v2.32.2+XML_v1.8
- MDTC38_Normal_FW_v1.33.7+XML_v1.10
- ParaMon III_v3.00.6_20231221
- ParaMon_Unified_v1.00.5_20220526
- 60205 ParaMon XML vs Firmware 2402
- 60343 ParaMon Unified user manual
2Technical documentation
COM Modbus BM / BMT protocol and registers lists - DOC.60427 - DOC.60451 - DOC.60452
- Com Protocole MODBUS BM/BMT – DOC.60427
- Modbus BM address and function – DOC.60451
- Modbus BMT address and function – DOC.60452
Instruction manual - Wireless DC tool - Transducerized BMT series - DOC.60425
- BMT specification
- Battery & charger specifications
- Operation
- Connections overview
- Fastening parameters for preset
- Screwdriver setup with ParaMon AirT & web server
- BMT web serveur
- Firmware upgrade
- Modbus com protocol
- Maintenance
- Safety
- Standards
- Appendices
