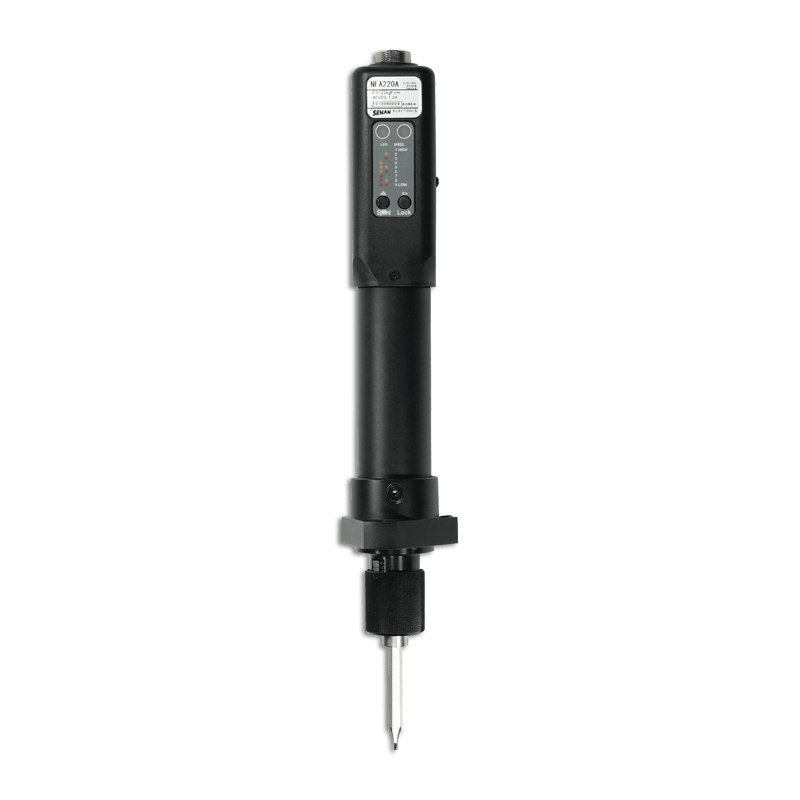

GXA 450P-H shut-off brushless electric fixtured spindle

Code 4-1027494

GXA 450P-H shut-off brushless electric fixtured spindle

Code 4-1027494

The GXA 450P-H electric shut-off straight tightening spindle allows you to perform your automated assemblies with precision. It is equipped with a push start and a fast chuck type drive for ¼" female Hex bits.

Technical details

Type of screwdriver
Shut-off brushless electric fixtured spindle
Min Torque
1 Nm
Max Torque
4.41 Nm
Min speed rotation
300 tr/min rpm
Maxi speed rotation
600 tr/min rpm
Drive Size
1/4" F/Hex
0.74 kg lbs
Fixtured spindle
Starting system
Push to start

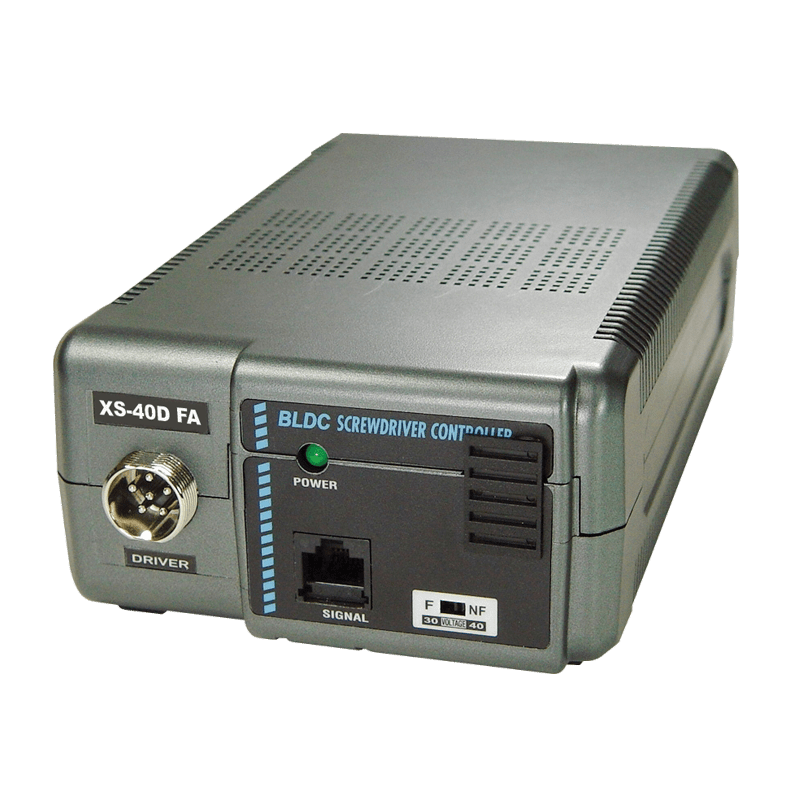

Suitable controller

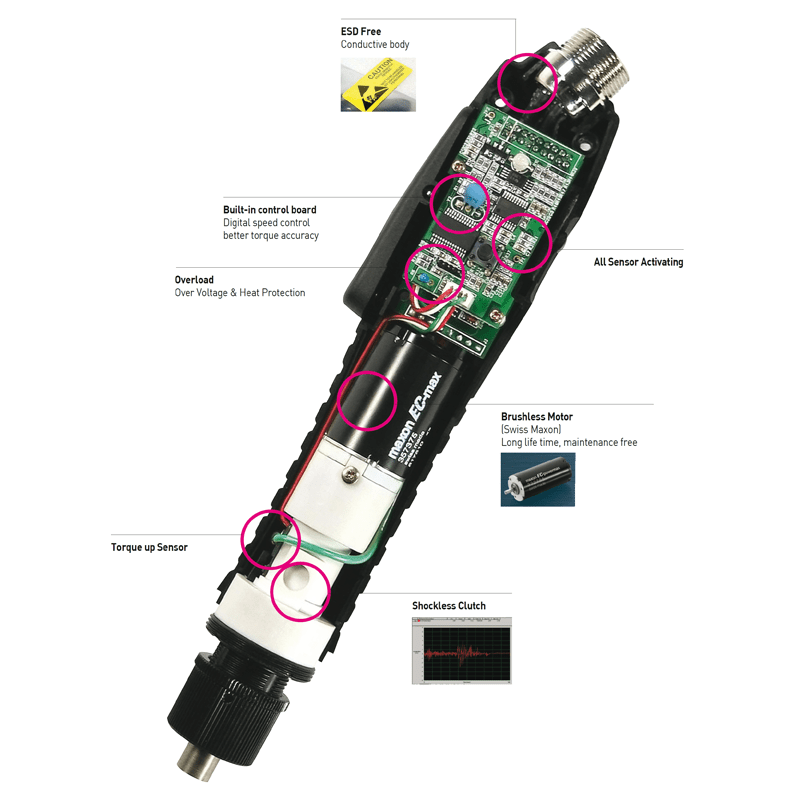

  • Maximum efficiency (high speeds)
  • Optimized limited features
  • High reliability
  • Surge and temperature protection
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Unmatched quality / efficiency / price ratio
  • ESD-free body
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GXA 450P-H straight spindle is the solution for your automated assemblies.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station thanks to a mounting flange, it can be started remotely by your automation and you can choose the direction of rotation.
It sends the motor rotation and torque information needed for your sequencing.
