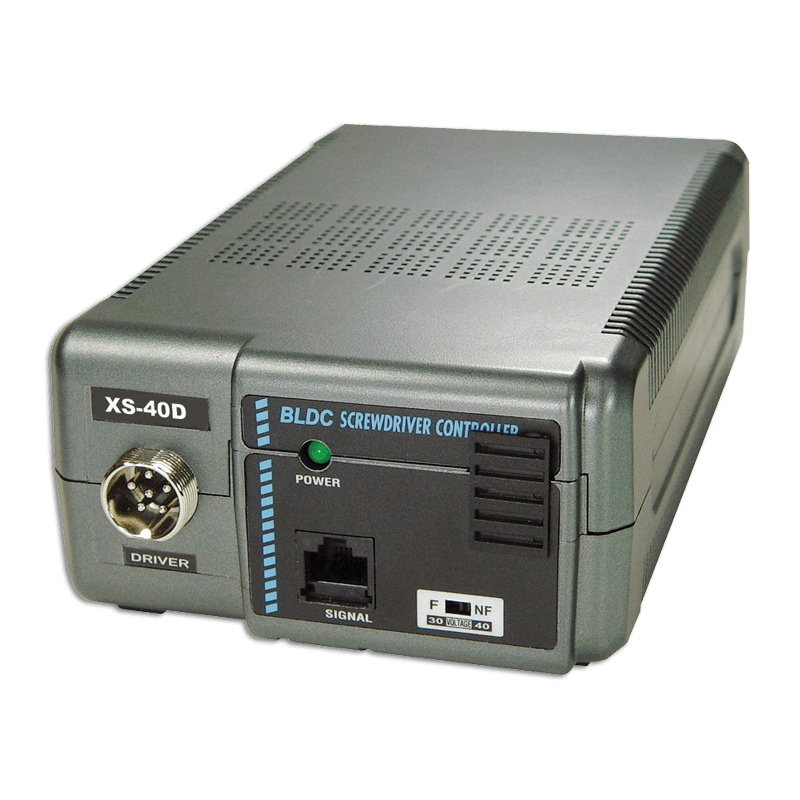

XS-40D controller

XS-40D controller

Code 4-1040065

For GX, GX-G, GX...FS 30 and 40 volts screwdrivers
Thanks to the unique SMPS technology (switching modulation), the connected screwdriver always delivers constant rotation speed and fastening force even for demanding fastening process (self-tapping tightening, soft joint, etc.).

Benefits

Comfort
Light and compact
Durability
Built-in Over heat and Over Current protection prevent the screwdriver from damage or bad use
Economy
Maintenance free
Quality
Easy monitoring of your fastenings thanks to torque reached signal output, start and stop signal outputs, selectable softstart, screwdriver lock signal input for PLC (prevents screwdrivers activation until PLC input signal)

Resources

1Commercial documentation

Electric screwdrivers - DOC.60207

DC controlled screwdrivers HD series
DC Controlled screwdrivers SD Series
GX series brushless
GX-G series
GY series
GX FS... series
GX...BT series
Accessories
DO series
GA series
Controllers
Scout Poka Yoke

Download the file in pdf

2Technical documentation

60348

Part list & exploded view - Brushless electric tools GX-FS serie - DOC.60348

1. GX-FS 60,80,120,180
2. GX-FS 60,80,120,180

Download the file in pdf
60346

Part list & exploded view - Brushless electric tools GX-H serie - DOC.60346

1. GXA 150, 220, 450 -H
2. GXA 150P, 220P, 450P -H
3. GX 150P, 220P, 450P -H
4. GX/GXS 150, 220 -H

Download the file in pdf

Part list & exploded view - Brushless electric tools GX30V serie - DOC.60339

1. GX35, 45
2. GXA 35, 45
3. GX 80, 120, 80P, 120P
4. GXS/GXT 80, 120
5. GXA 80, 120

Download the file in pdf

XS-40D XS-40D FA controller instructions manual - MU.60127

General safety rules
Specific safety rules
Electric specification
Mechanical specification
Selectable INPUT VOLTAGE
Pin configuration of output
Selectable OUTPUT voltage
Over current protection, over heat protection and reset
Connections
Interface with XS-40D controller
Interface with XS-40D FA controller

Download the file in pdf
