STANLEY® cordless screwdrivers

STANLEY® cordless screwdrivers

The range of STANLEY cordless screwdrivers consist of axial, angle and pistol tools with sensors that are torque and angle controlled. They are designed for your most critical tightening operations requiring accuracy, repeatability, mechanical reliability and data traceability.

Benefits

Precision
Very low impedance obtained thanks to the design of their DC Brushless motor
for maximum precision and resistance, for minimum maintenance.
Mobility
Can be used without a controller and therefore wireless because the screwdrivers take on functions which are particularly appreciated in the case of simple and demanding applications.
Autonomy
Lithium Ion 18V 5Ah battery weighing only 0.56 kg and whose capacities are about 2200 tightenings per charge and no less than 1000 charge cycles.

Product description

STANLEY® cordless screwdrivers ensure your manufacturing quality and productivity.
These screwdrivers can operate independently or be connected with Wifi to a controller.

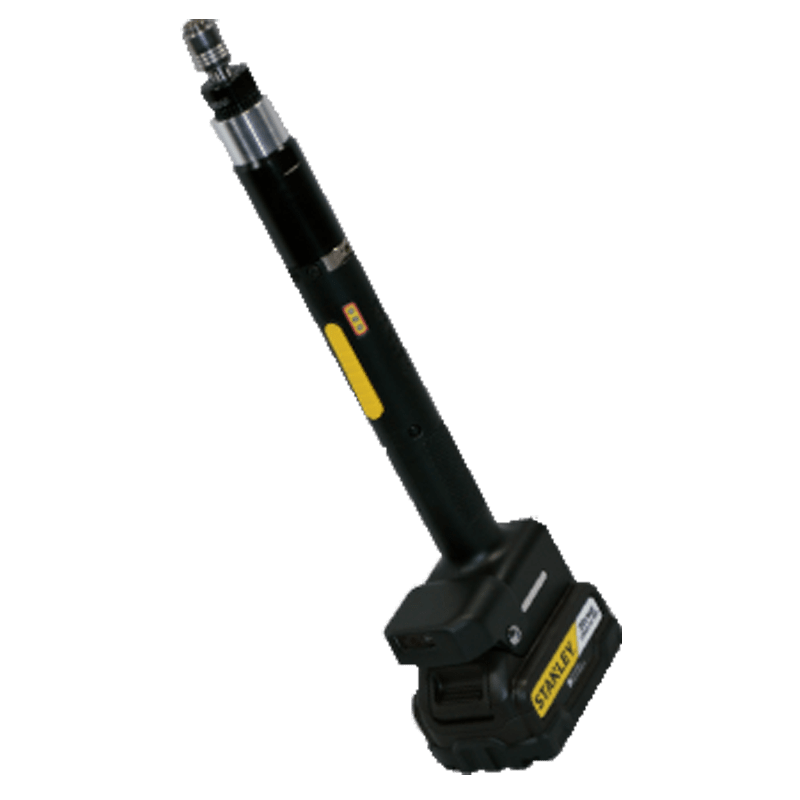

Cordless Axial  Screwdriver - B12 Series

They are ideal for tightening operations in hard-to-reach places or closed or high spaces.

• Torque range from 5 to 11 Nm
• Well designed and ergonomic
• Compact and lightweight
• Low-cost spare parts
• Wireless communication (IEEE 802.11 a / b / g / n Wi-Fi 2.4 and 5 GHz) with QBE Expert, Specialist or Node Network controllers
• High efficiency brushless direct current motor
• Visual and audible operator-assisted feedback
• Controller inside the tool
• Data storage of 500 cycles and 2 curves
• 16 ejobs / 16 tasks / 4 steps
• Barcode scanner as an option

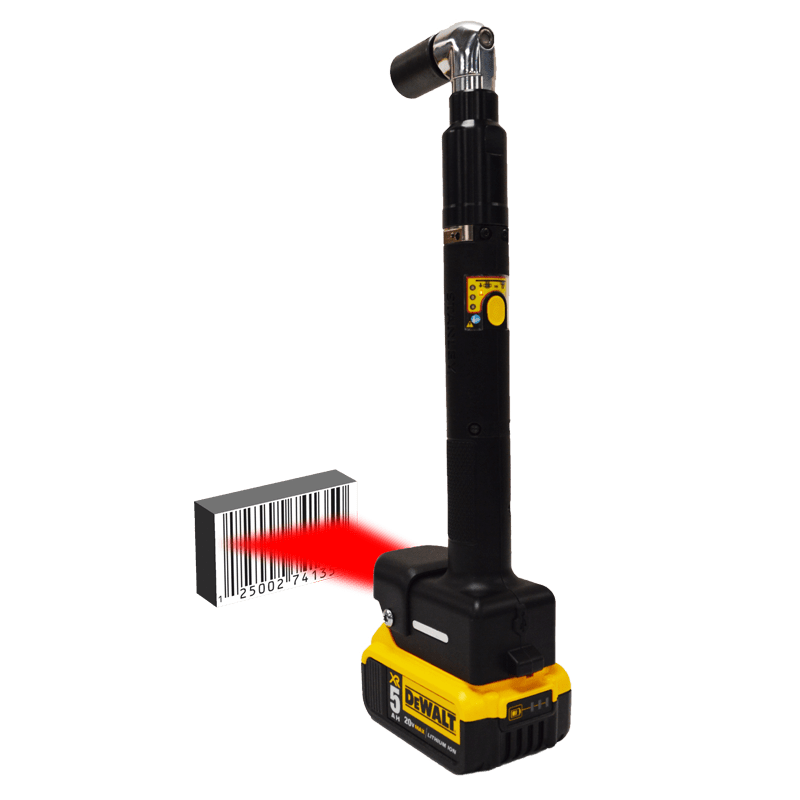

Cordless Angle Screwdriver - B12 - B23 series

• Torque range from 8 to 95 Nm
• Well designed and ergonomic
• Compact and lightweight
• Low-cost spare parts
• Available with special adapters
• Wireless communication (IEEE 802.11 a / b / g / n Wi-Fi 2.4 and 5 GHz) with QBE Expert, Specialist or Node network controllers
• High efficiency brushless direct current motor
• Visual and audible operator-assisted feedback
• Controller inside the tool
• Data storage of 500 cycles and 2 curves
• 16 ejobs / 16 tasks / 4 steps
• Barcode scanner as an option

Cordless Angle Screwdriver - B33 series

The B33 series angle screwdrivers have a tightening speed that is 2 to 3 times higher than B23 series screwdrivers.
They have one of the best " torque applied / speed" ratios in the market.

Cordless Pistol Screwdriver - B series

They are ideal for low torque tightening applications
• Torque range from 5 to 15 Nm
• Well designed and ergonomic
• Compact and lightweight
• Low-cost spare parts
• Push or trigger start
• Barcode scanner as an option
