MDT3211-A/L straight transducerized electric screwdriver
MDT3211-A/L straight transducerized electric screwdriver
Suitable with the Industry 4.0 requirements, the MDT 3211-A/L straight screwdriver integrates a torque and angle transducer.
Lightweight and ergonomic, it is designed for vertical high-speed tightening operations requiring precision and traceability of tightening torques.
Technical details
Benefits
• Built-in torque transducer for Class A torque accuracy.
• High efficiency gearbox thanks to the bearing guide
• Quiet motor
• Detailed graph monitoring
• Anti-error monitoring
Product description

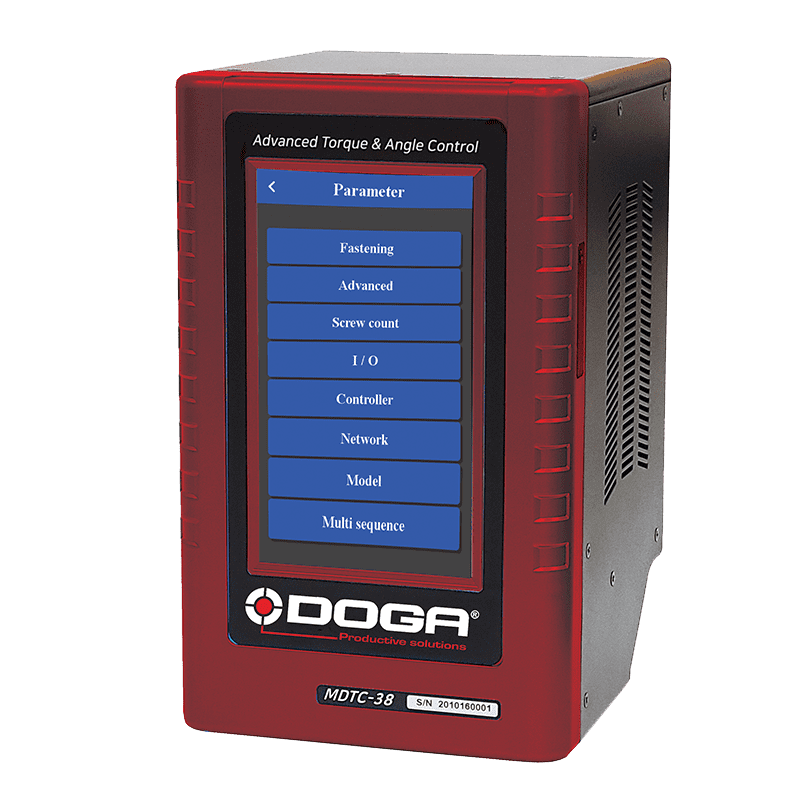

This screwdriver is powered and controlled by the MDTC-38 controller.
This dedicated controller is easy to adjust and allows you to optimize your operating speed thanks to its automatic programming mode via its color touch screen or PC software.
15 presets with torque / angle or angle / torque tightening strategies and 15 process sequence managing models with up to 20 customizable steps are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The tightening curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
Displayed menus are multilingual.
The tool is delivered with a calibration test certificate on 3 torque values: 20%, 50% and 100% of the max torque.
Screwdriver cable is not included.
Videos
Associated products
MDTC controller
This controller is dedicated to MDT series transducerized torque and angle tools.
ParaMon-Pro X controller
DPC Touch: sequencing and process monitoring interface
BS-5C color ID bit tray
Air vacuum system & sleeves
By holding the screw under vacuum at the end of the screwdriver, this screw gripping system meets your non-magnetic or small screw assembly needs, especially when access to the screw point is restr
Resources
3Plan
3D - P102297 - MDT3211-A/L
Download the file in zip1Commercial documentation
Transducerized tools - MDT series - DOC.60408
- Main features
- Model specifications
- Technical details
- MDTC controller
- Controller communication and display
- Torque and angle tightening strategies
- Models and data communication
- Free ParaMon software
- Stand and bracket
- Accessories
4Software
ParaMon software
The compressed file contains 2 generations of software and screwdriver firmware.
You should use the generation corresponding to the firmware currently installed on your screwdriver or controller in order to update it to the latest version without changing settings.
- ParaMon III for GEN1 screwdrivers with firmware versions v2.3.xx and v3.xx.xx
- ParaMon4 for GEN2 screwdrivers with firmware versions v4.xx.xx and v5.xx.xx
Upgrading from GEN1 to GEN2 is possible but will result in incompatibilities if your equipment communicates with an existing automation system, as well as a loss of settings (please contact us first).
Please note that BM(T) screwdrivers have two distinct firmware versions depending on the Wi-Fi module model installed. If the character ‘+’ appears after the text ‘network info’, the firmware to use is the one with a filename containing xxx_9116_xxx.bin.
Please refer to document 60205, which lists all firmware versions.
Files version:
• Readme
• 60205 ParaMon XML vs Firmware 07-2026
ParaMon III:
• BM_FW v1.34.6 + XML v1.10
• BM_FW_v1.54.6_RS9116+XML_v1.10
• BMT_FW v1.44.7 + XML v1.11
• BMT_FW_v1.54.7_RS9116+XML_v1.11
• MDC22_MINI_FW_v3.01.2+XML_v1.10
• MDC26&32_FW_v2.32.7+XML_v1.10
• MDTC38_Normal_FW_v1.34.5+XML_v1.13
• ParaMon_v3.00.9_20260402
• ParaMon III manuel d'utilisation - DOC.41014
• ParaMon III user manual - DOC.60505
ParaMon4:
• BM_FW_v4.0.12+XML_v4.2.1
• BM_FW_v4.3.12_RS9116+XML_v4.2.1
• BMT_FW_ v4.0.13+XML_v4.2.1
• BMT_FW_ v4.3.13_RS9116+XML_v4.2.1
• BMT40_FW_v4.0.14+XML_v4.2.1
• MDC_FW_v4.0.12+XML_v4.2.1
• MDC_MINI_FW v4.0.12+XML_v4.2.1
• MDTC_MINI_FW_v4.0.14+XML_v4.2.1
• MDTC38_FW_v4.0.14+XML_v4.2.1
• ParaMon_4.1.2_net8.0_20260508
• ParaMon-Pro X v4.2.2 20251216
• Mise à jour firmware vers Gen 2
• Update to Gen 2 firmware
Download the file in zip
2Technical documentation
COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455
- Com Protocole MODBUS MDv2 MDT – DOC.60430
- Modbus MDCv2 address and function – DOC.60454
- Modbus MDTC address and function – DOC.60455
COM OPEN Protocol MD(T) / BM(T) series user manual - DOC.60428
1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages
MDT series instructions manual - DOC.60429
- Safety rules
- Product
- Main features
- MDT screwdrivers
- MDT screwdriver cable
- Controller MDTC
- Operation
- Firmware update
- Torque calibration and compensation
- Error code
- Web server
- Register list summary
- Com protocols
- Maintenance
- Standards
