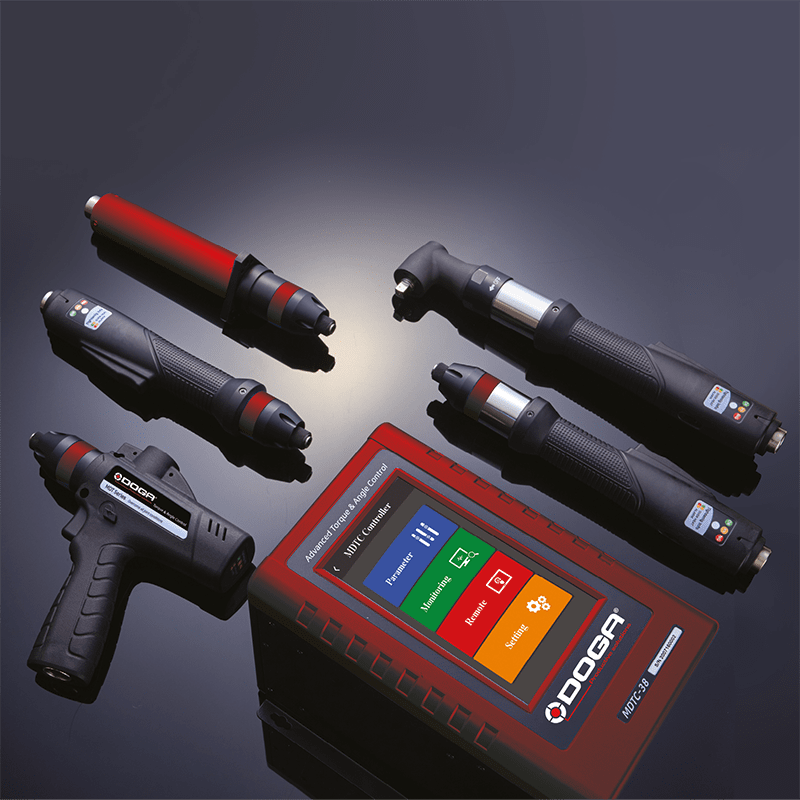

Product description
Dimensions:

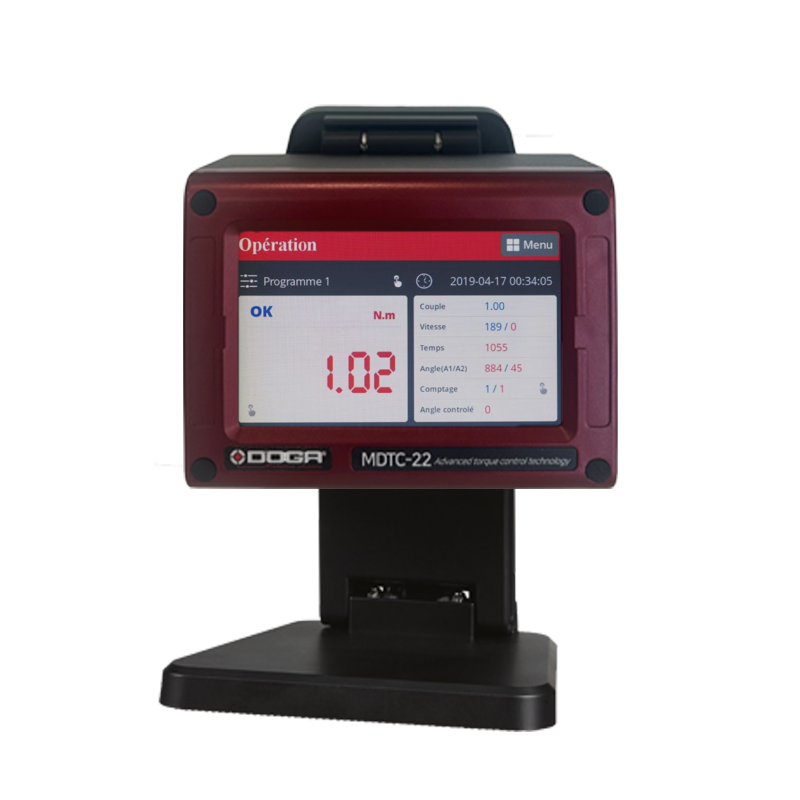

• MDTC-22: W 145 x H 110 x D 70 mm

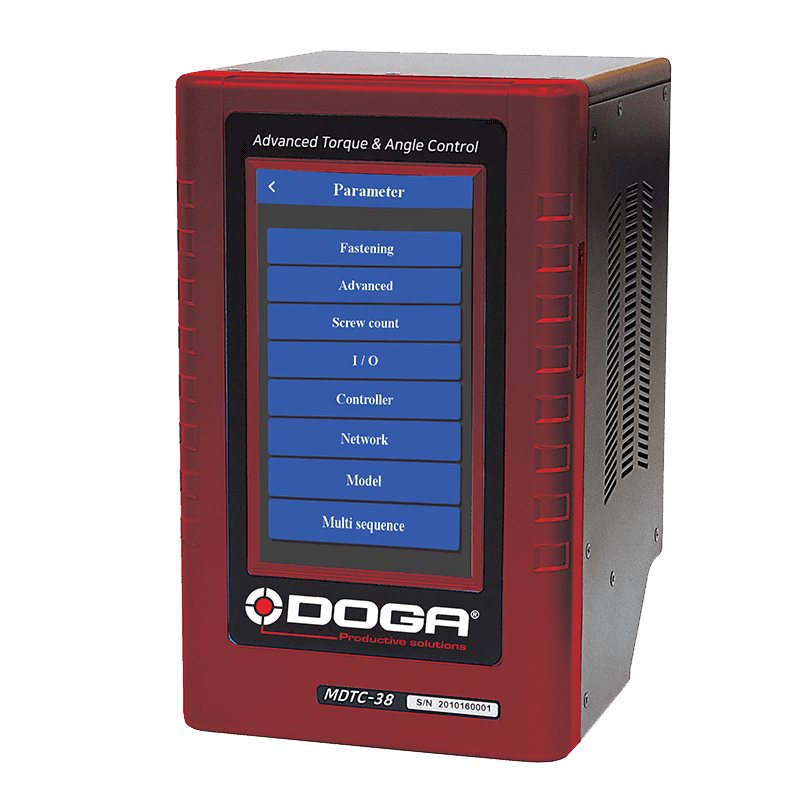

• MDTC-38: W 160 x H 260 x D 180 mm

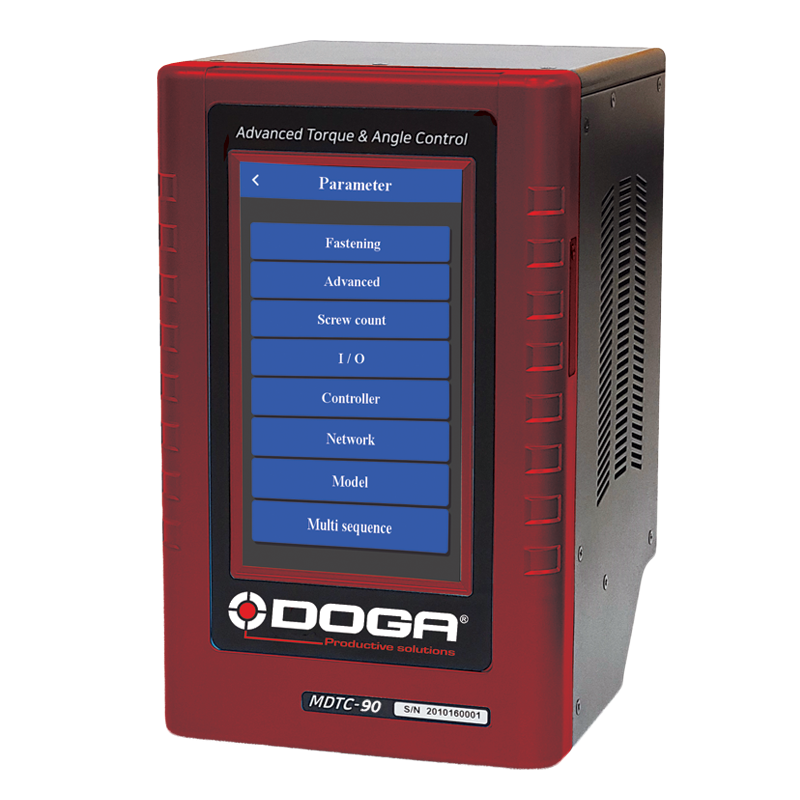

• MDTC-90: W 150 x H 227 x D 220,2 mm
LCD:
• MDTC-22: color touch screen 5 inch
• MDTC-38: color touch screen 7 inch
• MDTC-90: color touch screen 8 inch
Storage: Standard built-in 8GB SD Card
I/O: 8 inputs and 8 outputs assignable + 7 free inputs assigned to models
Firmware update: with SD Card
Firmwares: Controller main board / LCD display
Language: English, French, Spanish, German, Italian, Czech

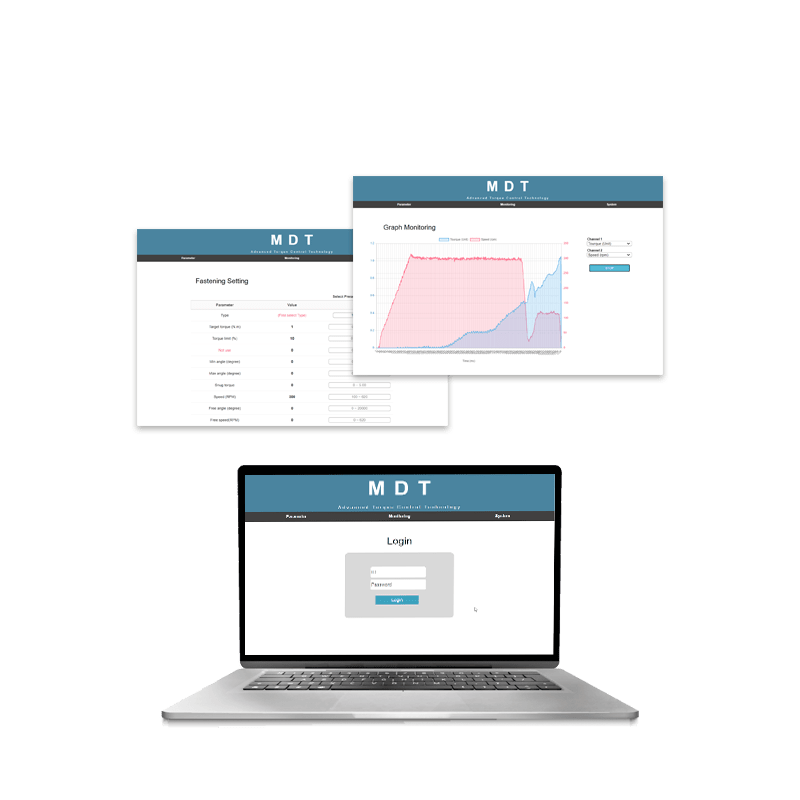

Parameter setting: Via controller front LCD / Web Server / ParaMon software
Protocols: Modbus, Open protocol
Model: 15 models consisting of 20 steps each
Tightening presets: 31 programs + 2 multisequences
Advanced function: 4 functions for each programs: free reverse rotation, engaging torque detection, thread tapping, angle after torque up
*Available only with firmware version 4.x.x or over.
Note: The Modbus registers are different from those in firmware versions prior to 4.x.x.
• Rotation direction can be set independently for each preset
• Tightening mode
- Torque Control + Angle Monitoring (TC/AM)
- Angle Control + Torque Monitoring (AC/TM)
• Torque
- Target torque, min/max torque, snug torque, seating torque, torque compensation
• Angle
- Target angle, min/max angle, free speed angle
• Speed
- Target speed, free speed
• Time
- Soft start time, torque rising time, torque holding time

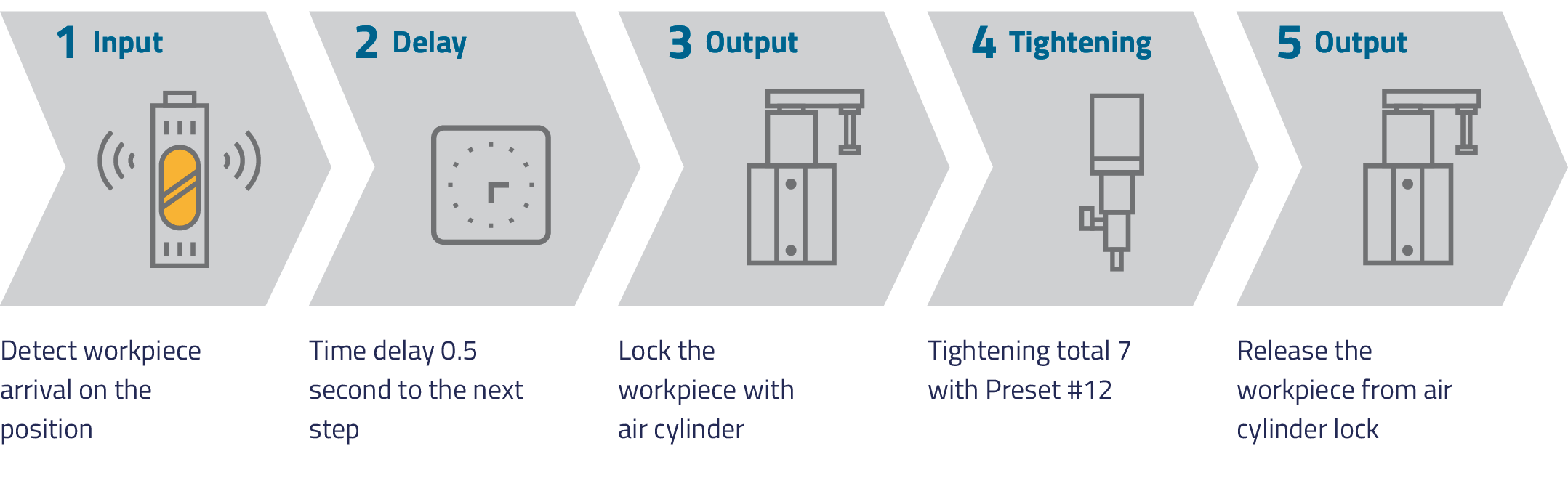

without PLC or sequence control device.
Total 15 process sequence managing models consist of each 20 steps of sequence program capacity
Associated products
DOGANet software to collect and analyze assembly data
A complete and ready-to-use software that meets your assembly process traceability needs with your DOGA torque and angle controlled screwdrivers. Easy to install on a network-connected PC
ParaMon-Pro X controller
DPC Touch: sequencing and process monitoring interface
BST Color bit tray
Bit tray Color ID BST-Quick Change
Resources
1Commercial documentation
Transducerized tools - MDT series - DOC.60408
- Main features
- Model specifications
- Technical details
- MDTC controller

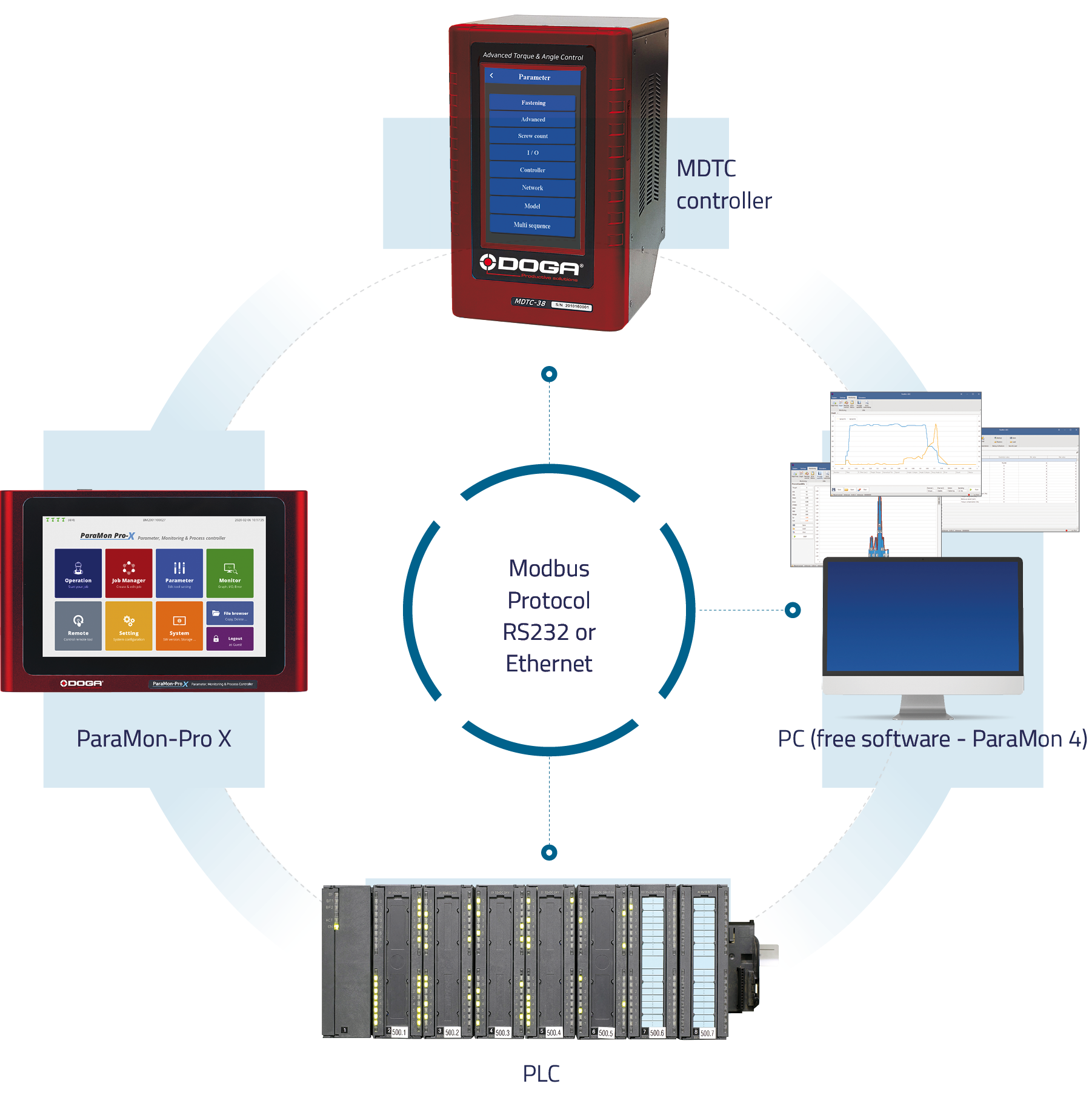

- Controller communication and display
