MDTP 3204-A/U pistol transducerized electric screwdriver
MDTP 3204-A/U pistol transducerized electric screwdriver

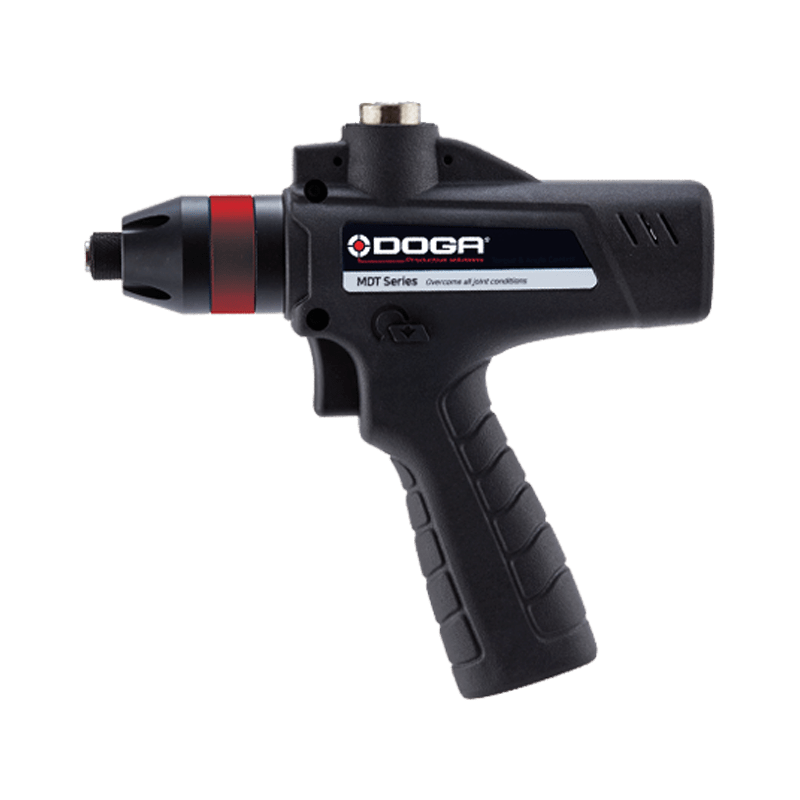

Suitable with the Industry 4.0 requirements, the MDTP3204-A/U pistol screwdriver integrates a torque and angle transducer.
Compact and ergonomic with top connection, it is designed for horizontal high-speed tightening operations requiring precision and traceability of tightening torques.
Technical details
Benefits
• Built-in torque transducer for Class A torque accuracy.
• Quiet motor
• Detailed graph monitoring
• Anti-error monitoring
Product description

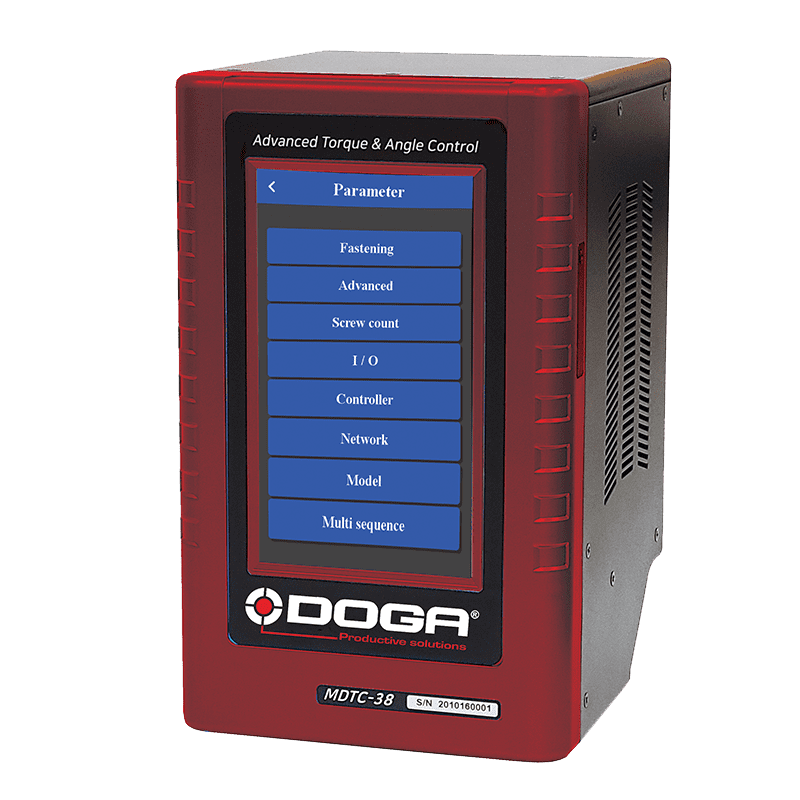

Cette visseuse est alimentée et asservie par le contrôleur MDTC-38.
Ce contrôleur dédié est facile à régler et grâce à son mode de programmation automatique via son écran tactile couleur ou son logiciel PC il optimise le temps de vos opérations de vissage.
Vous disposez de 15 programmes avec stratégie de vissage couple/angle ou angle/couple et de 15 modèles de séquences automatiques multiprogrammes comprenant chacun jusqu’à 20 étapes personnalisables.
L'utilisation en mode séquence automatique permet de réaliser un cycle de vissage complet avec des fonctions de comptage et de pilotage d'accessoires (capteur de présence, pick to light, alarme, etc.) grâce aux entrées/sorties assignables.
Les courbes de vissage sont visualisées en temps réel.
Les données sont mémorisées et transférables via Ethernet ou RS232.
Son interface est multilingue.
L’outil est livré avec un test de calibration sur 3 valeurs de couple : 20%, 50% et 100% du couple max.
Le câble de raccordement de l’outil n’est pas inclus.
Videos
Associated products
MDTC controller
This controller is dedicated to MDT series transducerized torque and angle tools.
ParaMon-Pro X controller
DPC Touch: sequencing and process monitoring interface
BS-5C color ID bit tray
Air vacuum system & sleeves
By holding the screw under vacuum at the end of the screwdriver, this screw gripping system meets your non-magnetic or small screw assembly needs, especially when access to the screw point is restr
Resources
1Commercial documentation
Transducerized tools - MDT series - DOC.60408
- Main features
- Model specifications
- Technical details
- MDTC controller
- Controller communication and display
- Torque and angle tightening strategies
- Models and data communication
- Free ParaMon software
- Stand and bracket
- Accessories
4Software
ParaMon softwares
For BM, BMT, MDCv2, MDC Mini and MDTC series
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database – dedicated to torque and angle tools and ParaMon-Pro X controllers.
- ParaMon Unified:
PC software for parameters setup and real time monitoring – only for Torque and Angle tools.
- Controller firmware and LCD firmware
For MDC and MDTC only.
Update compatible with any actual tool and controller (except MDCv1 legacy product.
Files version:
- BM_FW_v1.33.5+XML_v1.8
- BMT_FW_v1.43.5+XML_v1.9
- MDC22_MINI_FW_v3.00.5+XML_v1.8
- MDCv2_26&32_FW_v2.32.2+XML_v1.8
- MDTC38_Normal_FW_v1.33.7+XML_v1.10
- ParaMon III_v3.00.6_20231221
- ParaMon III user manual - DOC.60505
- ParaMon_Unified_v1.00.5_20220526
- ParaMon Unified user manual - DOC.60343
- ParaMon XML vs Firmware 2402 - DOC.60205
2Technical documentation
COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455
- Com Protocole MODBUS MDv2 MDT – DOC.60430
- Modbus MDCv2 address and function – DOC.60454
- Modbus MDTC address and function – DOC.60455
COM OPEN Protocol MDCv2/MDTC series user manual - DOC.60428
1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages
MDT series instructions manual - DOC.60429
- Safety rules
- Product
- Main features
- MDT screwdrivers
- MDT screwdriver cable
- Controller MDTC
- Operation
- Firmware update
- Torque calibration and compensation
- Error code
- Web server
- Register list summary
- Com protocols
- Maintenance
- Standards
