MDTC controller

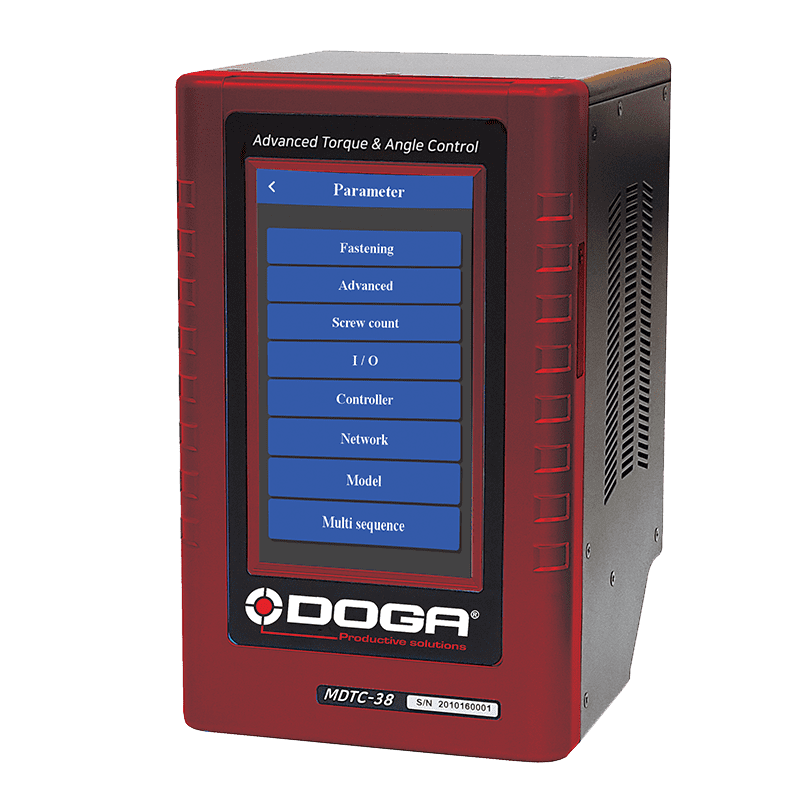

MDTC controller

MDTC-38 model - Code: 4-1055182

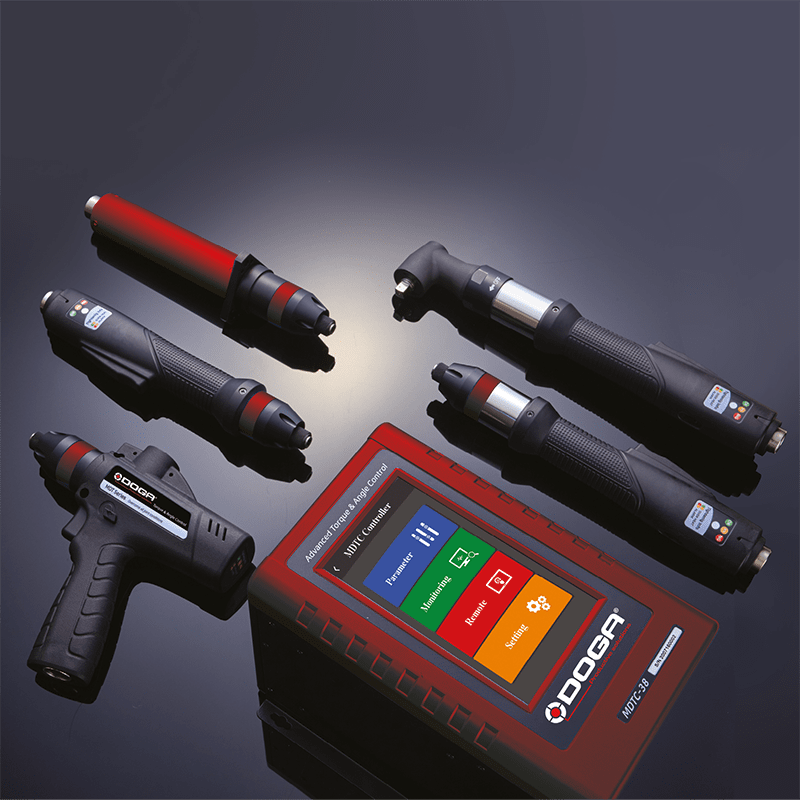

This controller is dedicated to MDT series transducerized torque and angle tools.
It meets advanced needs in terms of assembly strategies, traceability and communication.

Product description

Specifications:

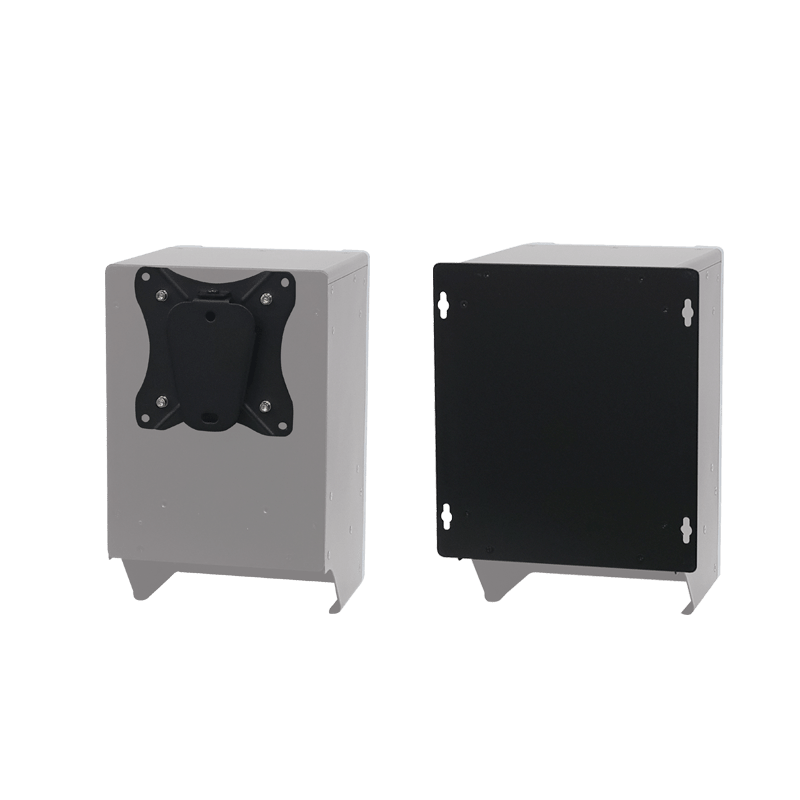

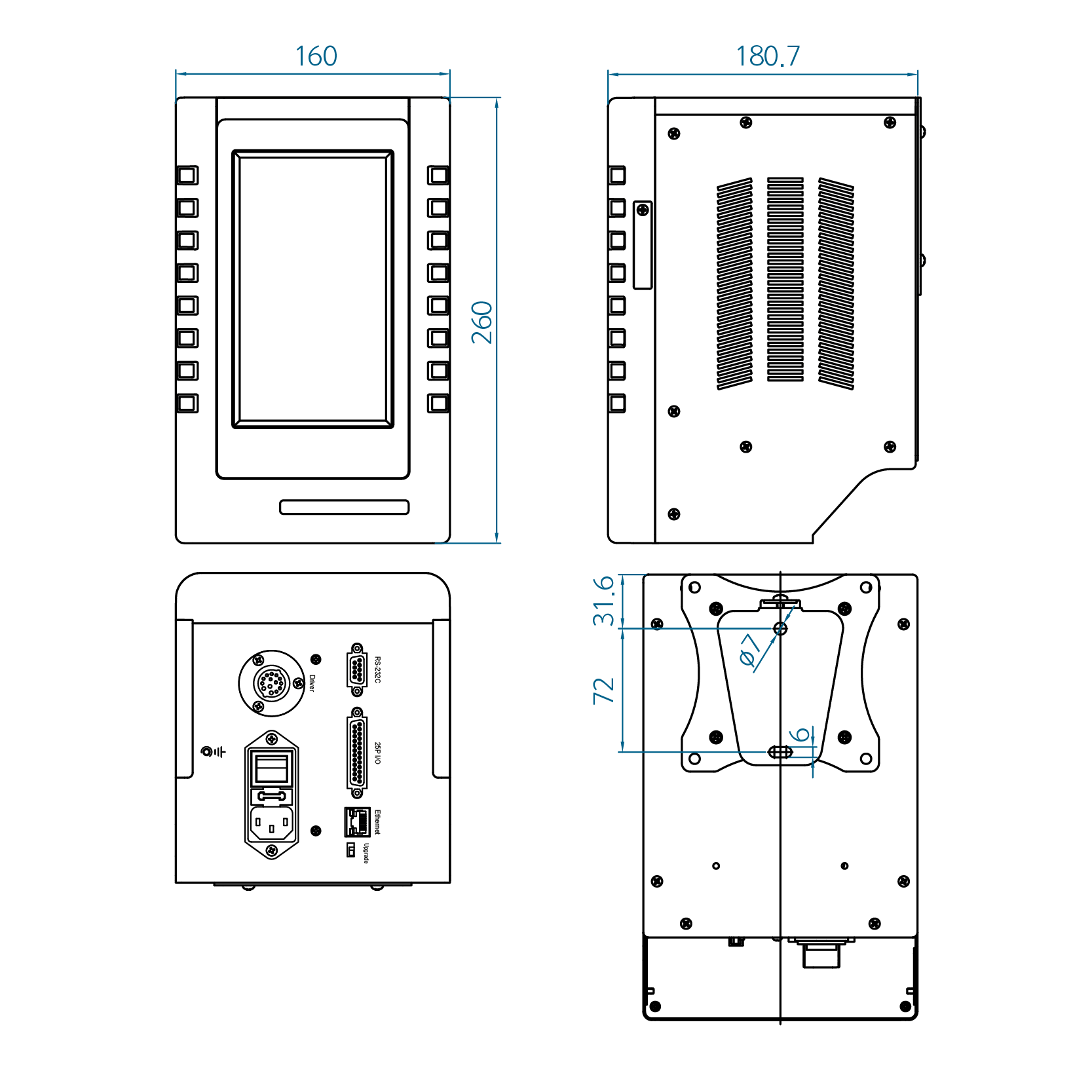

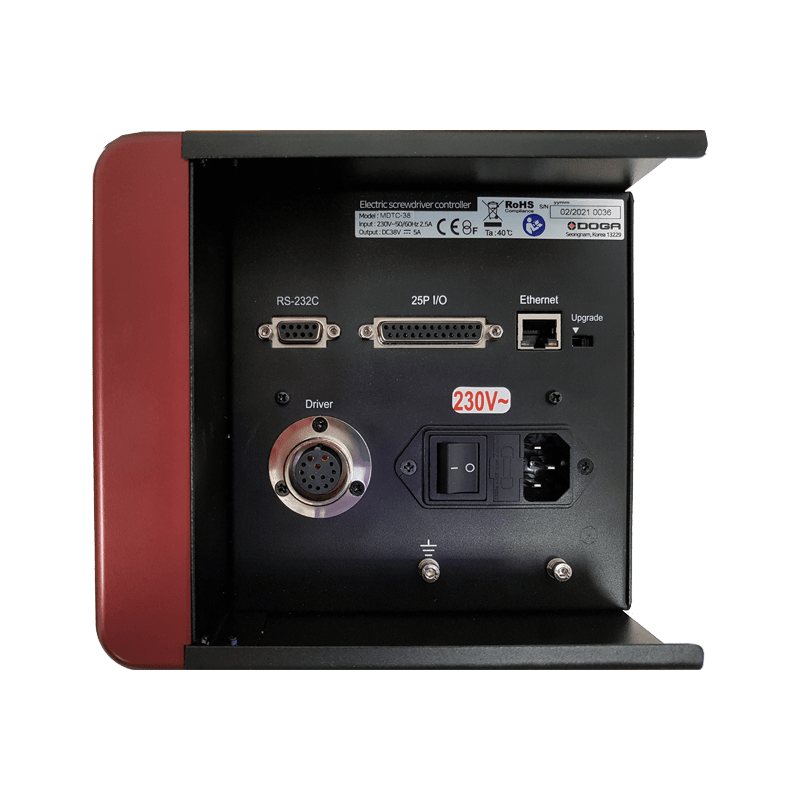

Dimension: 160(w) x 260(h) x 180(d) - vertical mounting
AC input: AC 230V 50/60 Hz
LCD: color touch screen 7 inch
Storage:  Standard built-in 8GB SD Card
I/O: 15 inputs & 8 Outputs
Firmware update: with SD Card
Firmwares: Controller PCB / LCD display
Language: English, French, Spanish, German, Czech

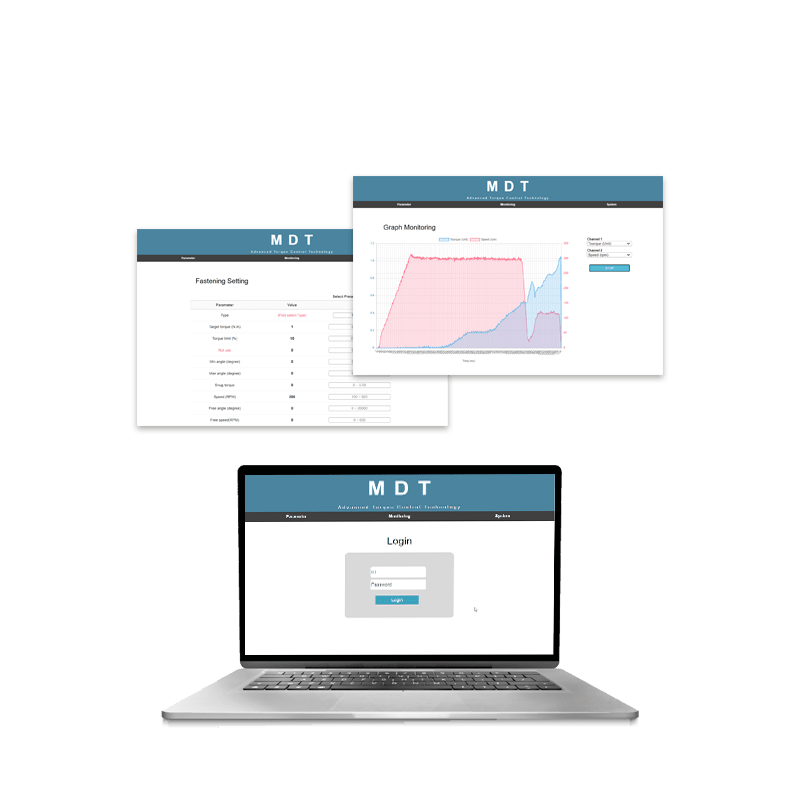

Parameter setting: Through controller LCD / Web Server / ParaMon MDTC
Protocols: Modbus, Open protocol
Tightening presets: 15 programs consist of 15 key parameters each
Advanced function: 4 functions for each preset including free reverse rotation, engaging torque detection, thread tapping, angle after torque up
Model: 15 models consist of 20 steps each

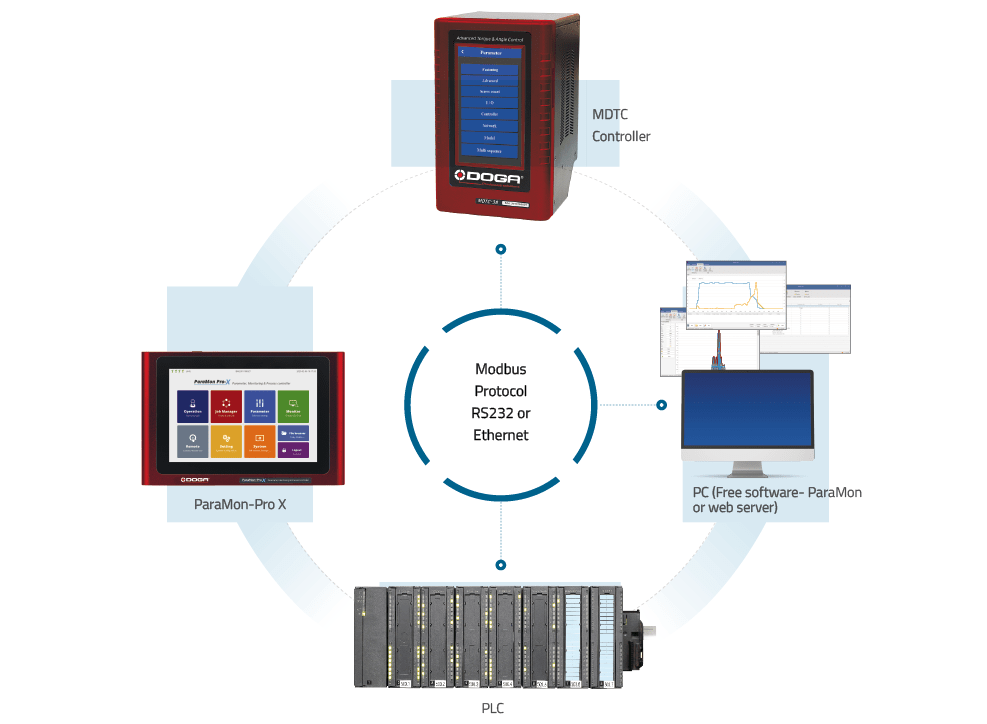

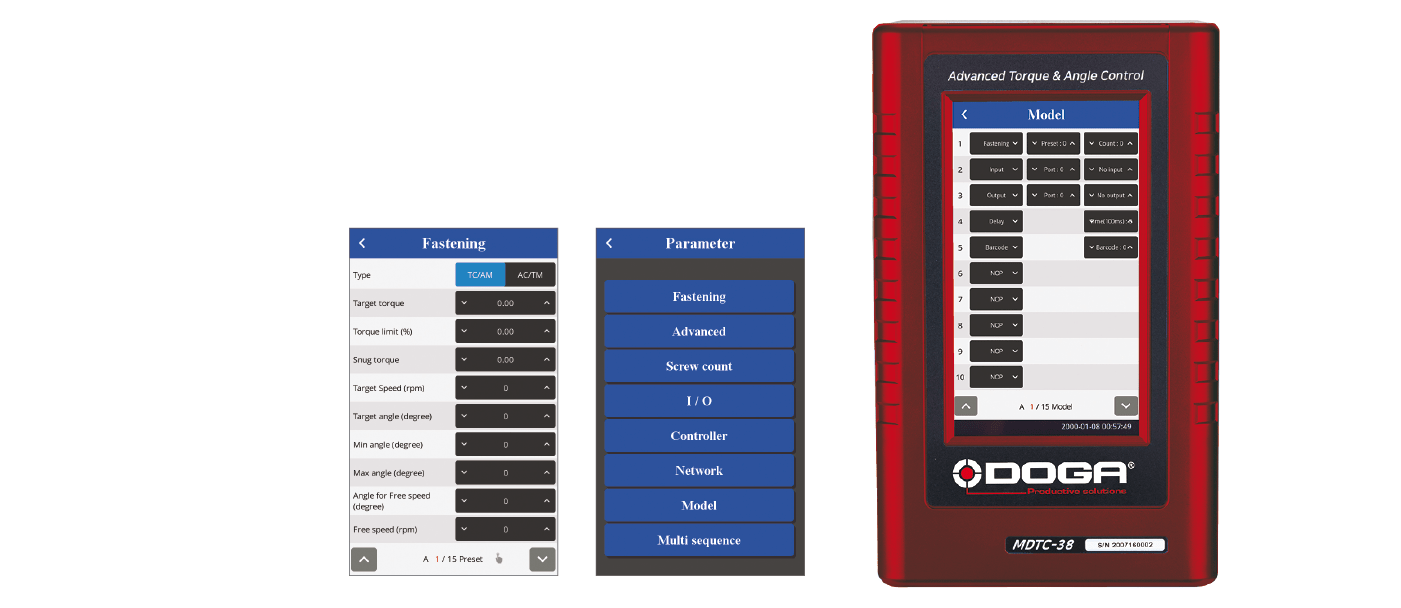

Controller communication and display

Controller communication and display

Torque and angle tightening strategies

•    Total 15 tightening presets consist of each 15 keys parameters.
•    Rotation direction can be set independently for each preset

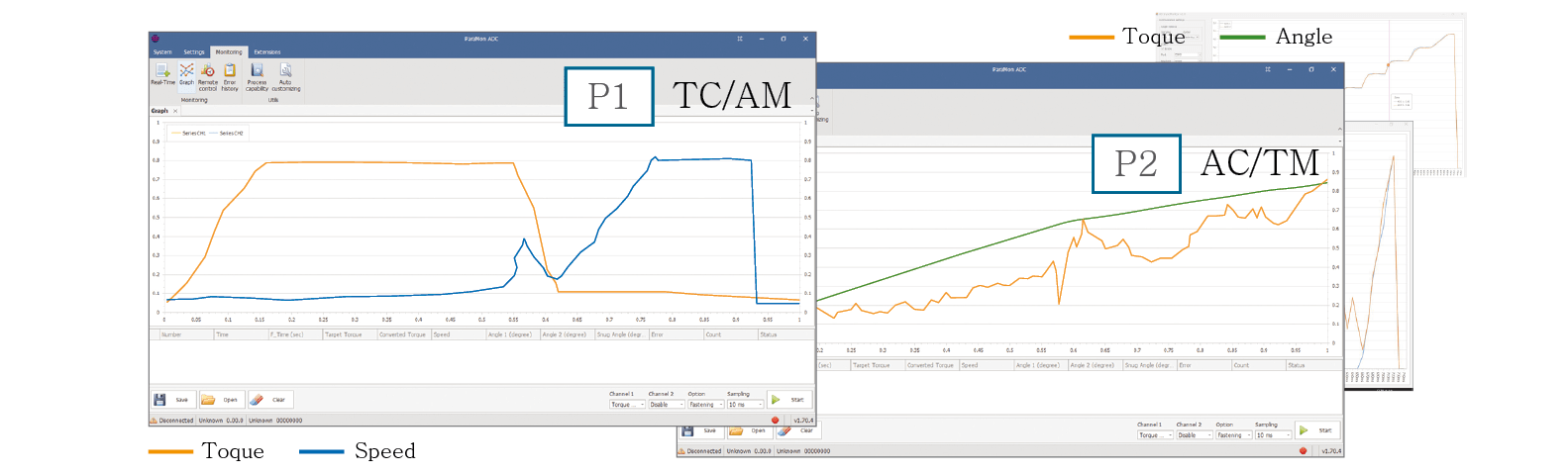

Torque and angle tightening strategies

Each preset program includes 15 customized parameters as below:
•    Tightening mode
    - Torque Control + Angle Monitoring (TC/AM)
    - Angle Control + Torque Monitoring (AC/TM)
•    Torque
    - Target torque, min/max torque, snug torque, seating torque, torque compensation
•    Angle
    - Target angle, min/max angle, free speed angle
•    Speed
    - Target speed, free speed
•    Time
    - Soft start time, torque rising time, torque holding time

Models for multi-torque process control

Models allow to manage tightening preset, screw counting, time delay, input & output provides automation without PLC or sequence control device.
Total 15 process sequence managing models consist of each 20 steps of sequence program capacity

15 customized parameters

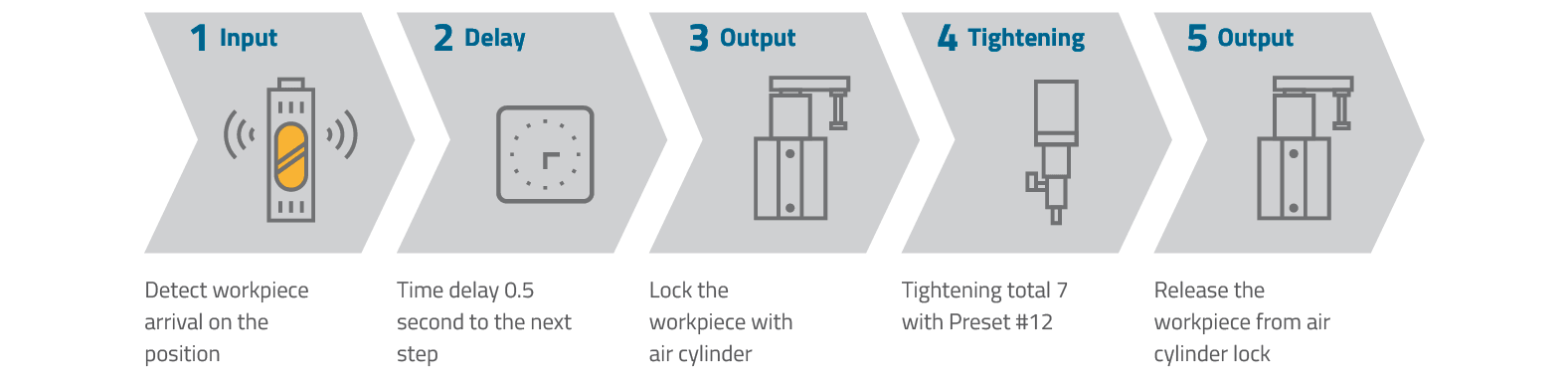

Sample program of sequence control
Sample program of sequence control

Associated products

Resources

1Commercial documentation

60408

Transducerized tools - MDT series - DOC.60408

- Main features
- Model specifications
- Technical details
- MDTC controller
- Controller communication and display
- Torque and angle tightening strategies
- Models and data communication
- Free ParaMon software
- Stand and bracket
- Accessories

Download the file in pdf

4Software

ParaMon software

For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.

Including:

  • ParaMon III:

PC software for network tools management, setup and backup via an integrated database.


  • Controller firmware and LCD firmware

Update compatible with any actual tool and controller (except MDCv1 legacy product).



Files version:

  • BM_FW_v1.34.0+XML_v1.9
  • BMT_FW_v1.44.0+XML_v1.10
  • MDC22_MINI_FW_v3.00.9+XML_v1.9
  • MDCv2_26&32_FW_v2.32.4+XML_v1.9
  • MDTC38_Normal_FW_v1.33.9+XML_v1.12
  • ParaMon III_v3.00.8_20240517
  • ParaMon III user manual - DOC.60505
  • ParaMon XML vs Firmware - DOC.60205
Download the file in zip

2Technical documentation

COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455

-    Com Protocole MODBUS MDv2 MDT – DOC.60430
-    Modbus MDCv2 address and function – DOC.60454
-    Modbus MDTC address and function – DOC.60455

Download the file in zip
60428

COM OPEN Protocol MDCv2/MDTC series user manual - DOC.60428

1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages

Download the file in pdf

MDT series instructions manual - DOC.60429

- Safety rules
- Product
- Main features
- MDT screwdrivers
- MDT screwdriver cable
- Controller MDTC
- Operation
- Firmware update
- Torque calibration and compensation
- Error code
- Web server
- Register list summary
- Com protocols
- Maintenance
- Standards

Download the file in pdf
