GX 150 P ESD-H shut-off brushless electric screwdriver

Code 4-1027480

GX 150 P ESD-H shut-off brushless electric screwdriver

Code 4-1027480

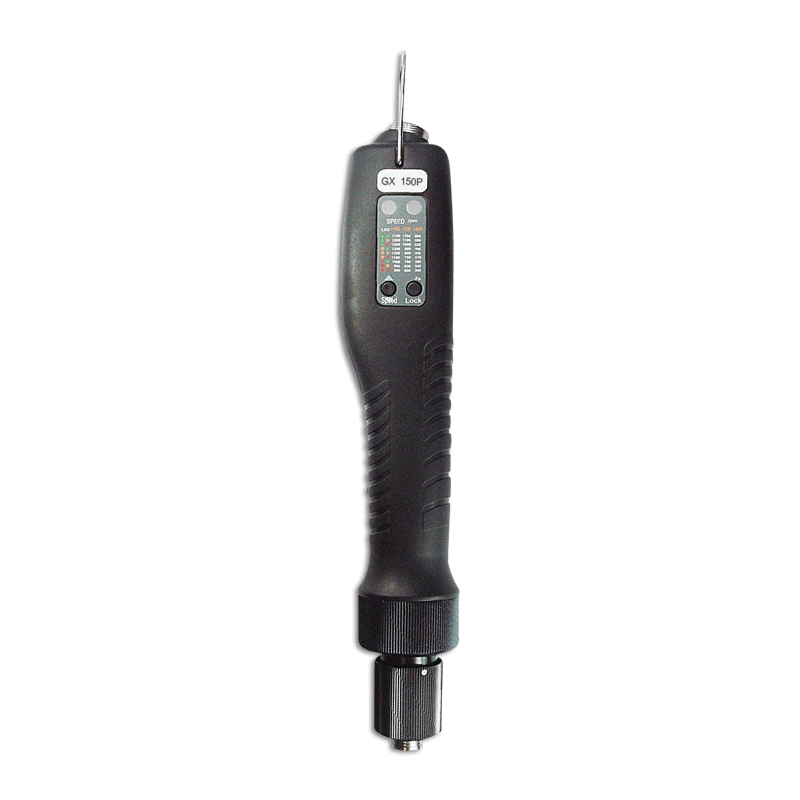

The GX 150 P ESD-H electrical shut-off straight screwdriver allows you to perform your vertical assemblies with precision. It is equipped with a push start and a fast chuck type drive for ¼ ' female Hex bits.

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.3 Nm
Max Torque
1.47 Nm
Min speed rotation
800 tr/min rpm
Maxi speed rotation
1700 tr/min rpm
Drive Size
1/4" F/Hex
0.6 kg lbs
Starting system
Push to start

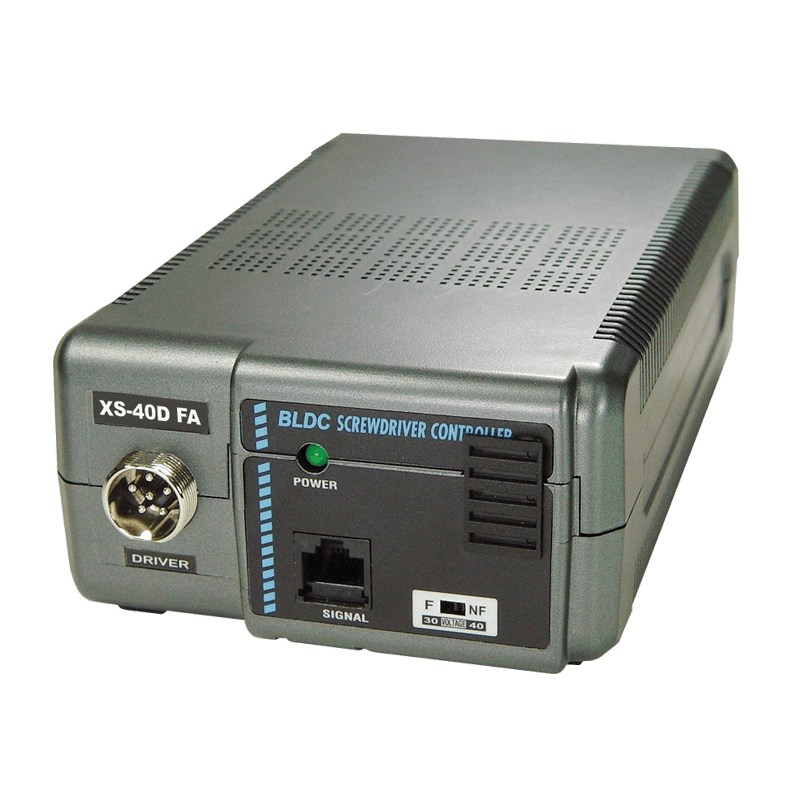

Suitable controller
XS40D (FA)


  • Maximum efficiency (high speeds)
  • Optimized limited features
  • High reliability
  • Surge and temperature protection

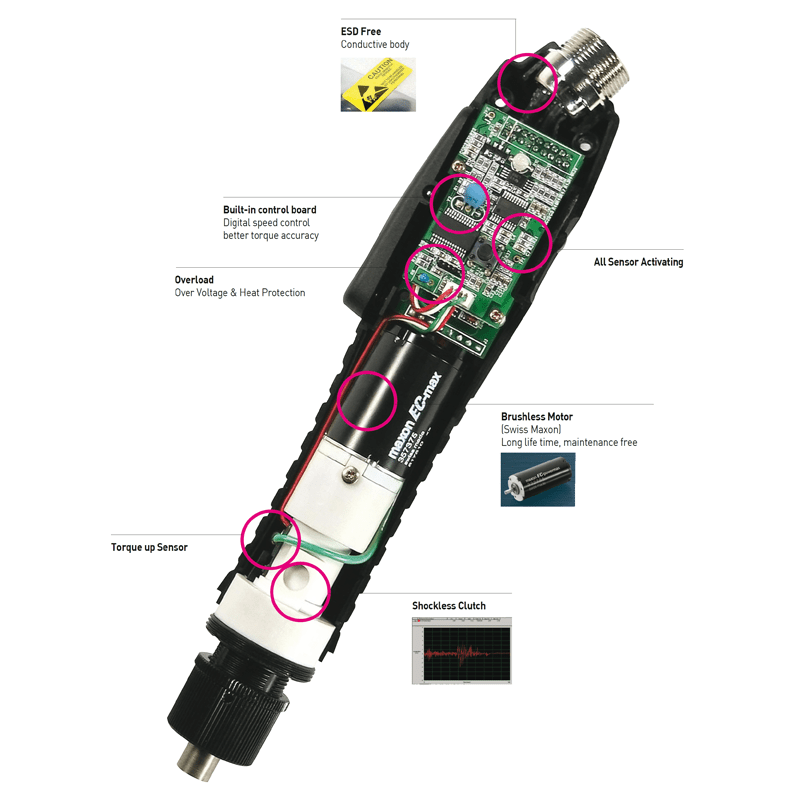

  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Unmatched quality / efficiency / price ratio
  • ESD-free body
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GX 150 P ESD-H push-start straight screwdriver is the solution for your high-speed, low-torque assemblies.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, pistol grip, etc.).
