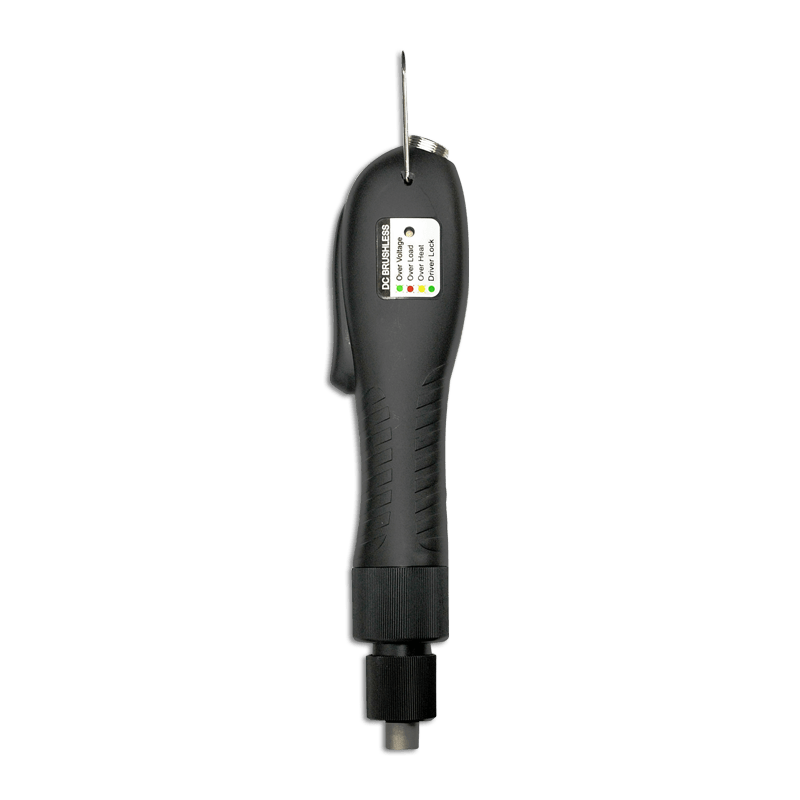

GX 120 FS ESD shut-off brushless electric screwdriver

Code 4-1055964

GX 120 FS ESD shut-off brushless electric screwdriver

Code 4-1055964

The GX 120 FS ESD shut-off straight screwdriver allows you to perform your assemblies with precision. It is equipped with a lever start and a fast chuck type drive for ¼ " female Hex bits.



Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.3 Nm lbf.in
Max Torque
1.2 Nm lbf.in
Min speed rotation
1000 tr/min rpm
Maxi speed rotation
1000 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.44 kg lbs
Shape
Straight
Starting system
Lever
Power
Electric
Functionalities
ESD

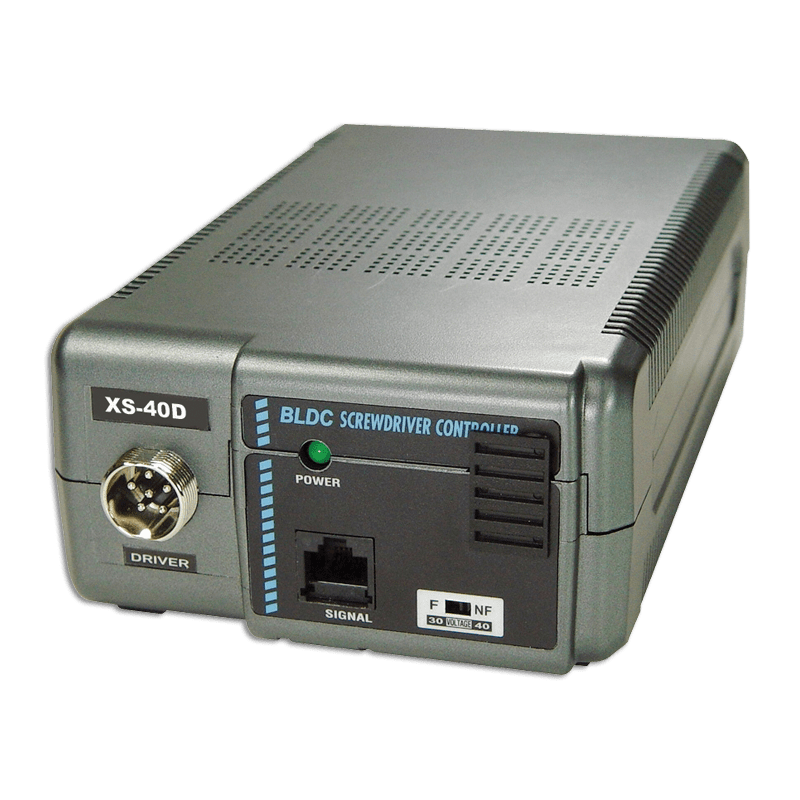

Suitable controller
XS-40D

Benefits

Productivity
  • Maximum efficiency (high speeds)
  • Optimized limited features
  • High reliability
  • Surge and temperature protection
Quality

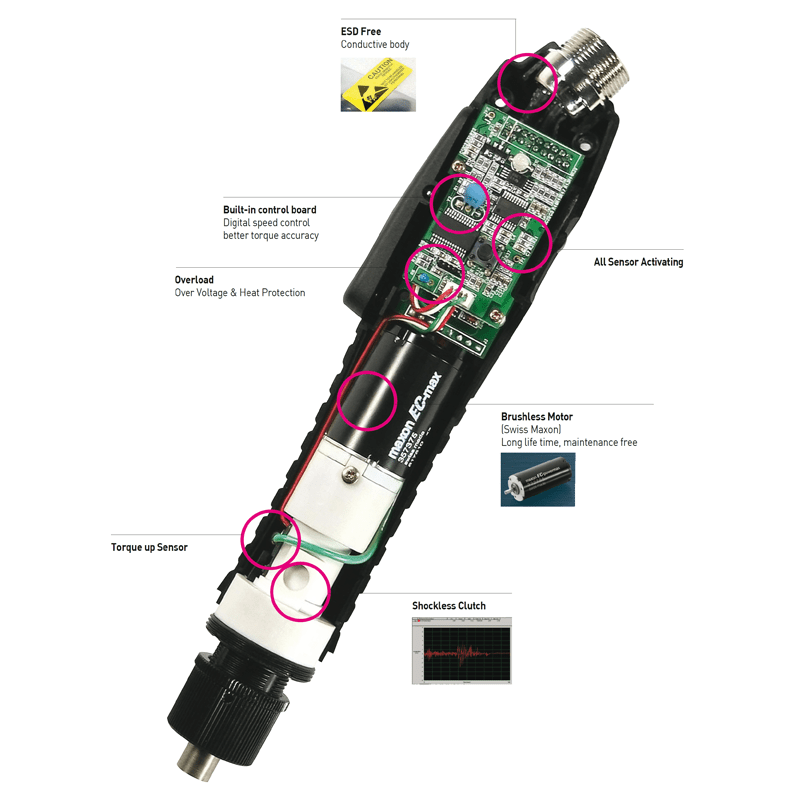

  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Unmatched quality / efficiency / price ratio
  • ESD-free body
Comfort
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the GX 120 FS ESD electric shut-off lever-start straight screwdriver is the most accessible solution for your low-torque assemblies.
It has optimized limited features for easy use.
Single-speed designed, it is fast and efficient.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, etc.).
