GX 100 BT ESD-G shut-off brushless electric screwdriver

Code 4-1078007

GX 100 BT ESD-G shut-off brushless electric screwdriver

Code 4-1078007

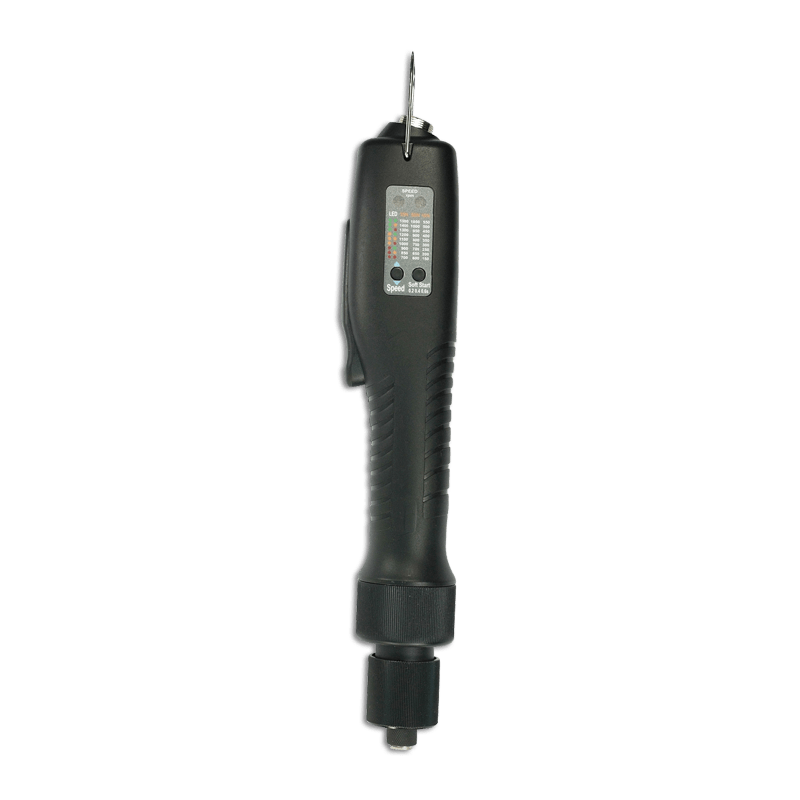

The GX100 BT ESD-G electric shut-off straight screwdriver allows you to perform your vertical assemblies with precision with the most common torques. It is equipped with a lever start and a fast chuck type drive for ¼" female Hex bits.

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
4 Nm lbf.in
Max Torque
9.8 Nm lbf.in
Min speed rotation
150 tr/min rpm
Maxi speed rotation
550 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.92 kg lbs
Shape
Straight
Starting system
Lever
Power
Electric
Functionalities
ESD

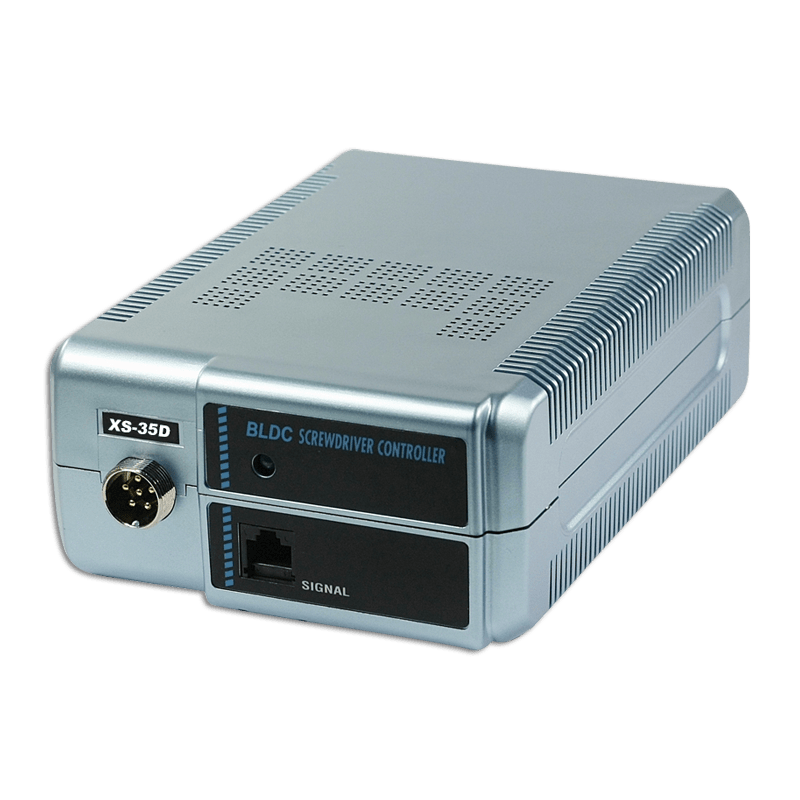

Suitable controller
XS-35D

Benefits

Productivity
  • Maximum efficiency (high speeds)
  • Optimized limited features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Unmatched quality / efficiency / price ratio
  • ESD-free body
Comfort
  • Optimized ergonomics
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

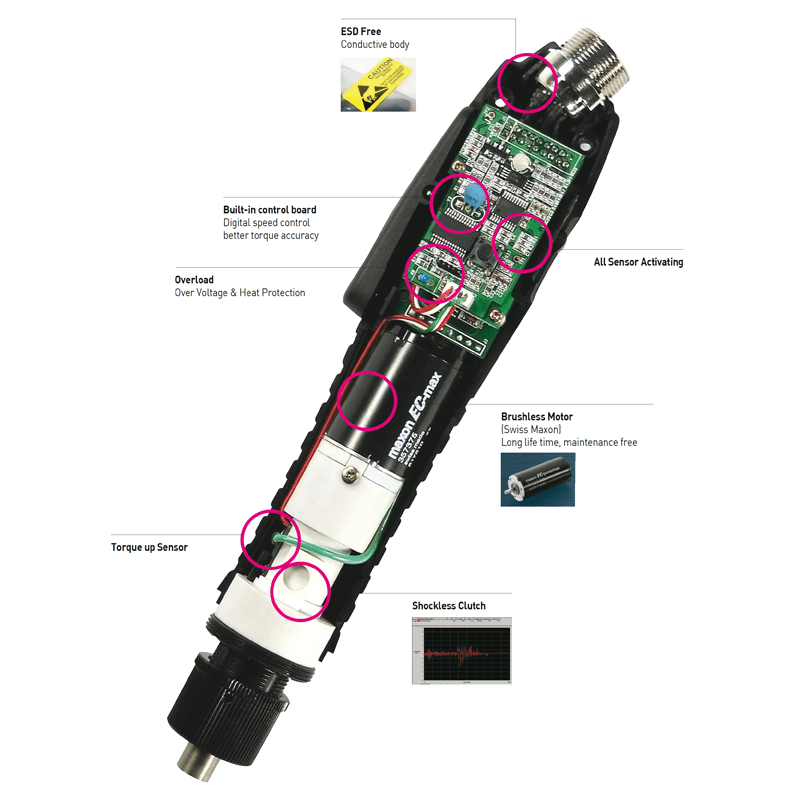

Equipped with a maintenance-free brushless motor, the GX100 BT ESD-G lever-start straight screwdriver is the versatile solution for high-speed, high-torque assemblies.
It has advanced setting functions such as digital speed adjustment electronics or soft start.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a wide range of accessories to complete its installation (torque protection ring, suction nose, angle gear kit, pistol grip, etc.).
