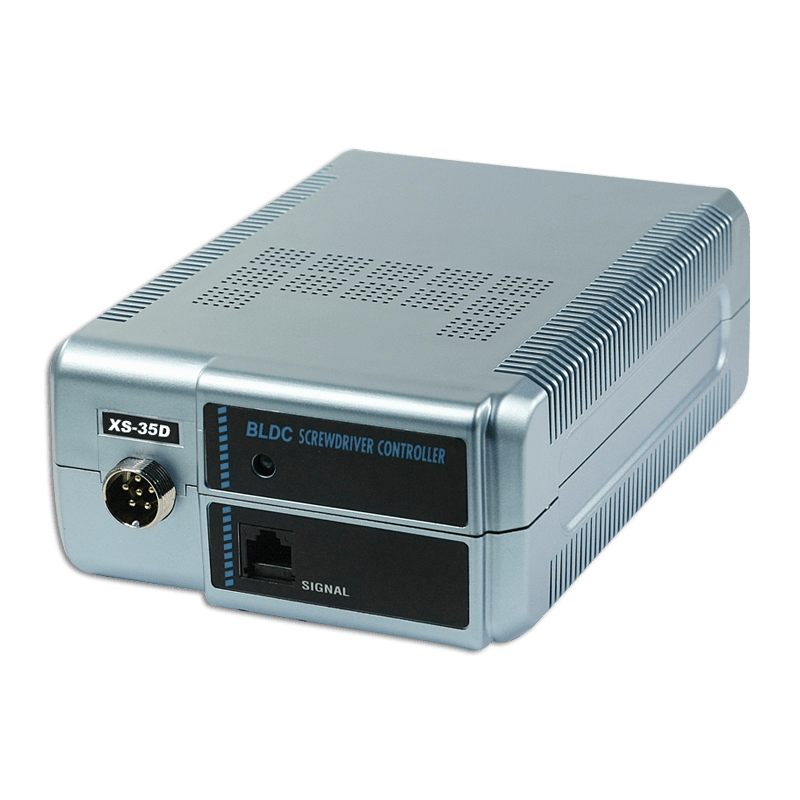

XS-35D controller

XS-35D controller

Code 4-1077420

For GX...BT, GX...BT-G 35 volts screwdrivers.
Thanks to the unique SMPS technology (switching modulation), the connected screwdriver always delivers constant rotation speed and fastening force even for demanding fastening process (self-tapping tightening, soft joint, etc.).


Light and compact.
 Built-in Over heat and Over Current protection prevent the screwdriver from damage or bad use.
Maintenance free.
Easy monitoring of your fastenings thanks to torque reached signal output, start and stop signal outputs, selectable softstart, screwdriver lock signal input for PLC (prevents screwdrivers activation until PLC18.

Product description

Programming lock key 4-1044850 +4-1000222
PLC interface U-3B 4-1041520

Spiral cable 3,5 m 4-1010413
Standard cable 3,0 m supplied with screwdriver 4-1041225
Standard cable 5,0 m 4-1044703
Reinforced cable 3,0 m 4-1000026
