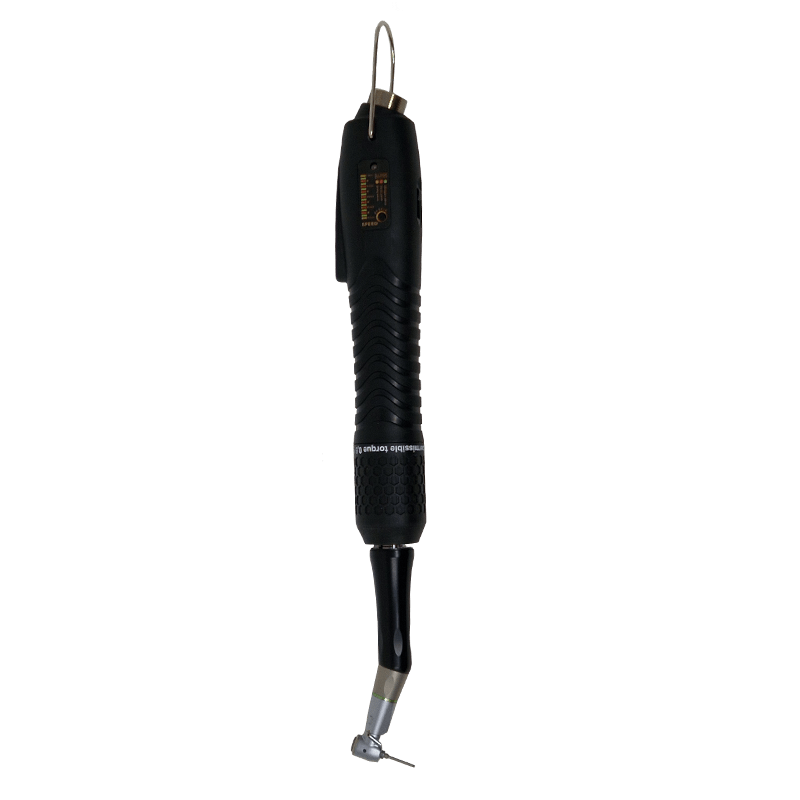

GX 035 mini angle nutrunners shut-off brushless electric screwdriver

Code P215436

GX 035 mini angle nutrunners shut-off brushless electric screwdriver

Code P215436

The GX 035 electric mini angle nutrunners micro-screwdriver with soft shut-off allows you to make your very low torque assemblies with precision on tightening points that are difficult to access.

Contact us

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.4 Nm lbf.in
Max Torque
0.6 Nm lbf.in
Vibration
2,5 m/s2 m/s2
Drive Size
4mm Half-moon
Weight
0.24 kg lbs
Shape
Angle head
Starting system
Lever
Power
Electric
Functionalities
ESD,
Counting
Suitable controller
XS-40D

Benefits

Productivity
  • Digital speed adjustment
  • Extended features
  • High reliability
  • Surge and temperature protection
Quality
  • Brushless motor (maintenance free)
  • Start, reversibility and non-contact sensor shut-off
  • Soft shut-off mechanical clutch
  • LED indicator on the screwdriver for signaling and adjustment
  • ESD-free body
Comfort
  • Optimized ergonomics, ideal for difficult access.

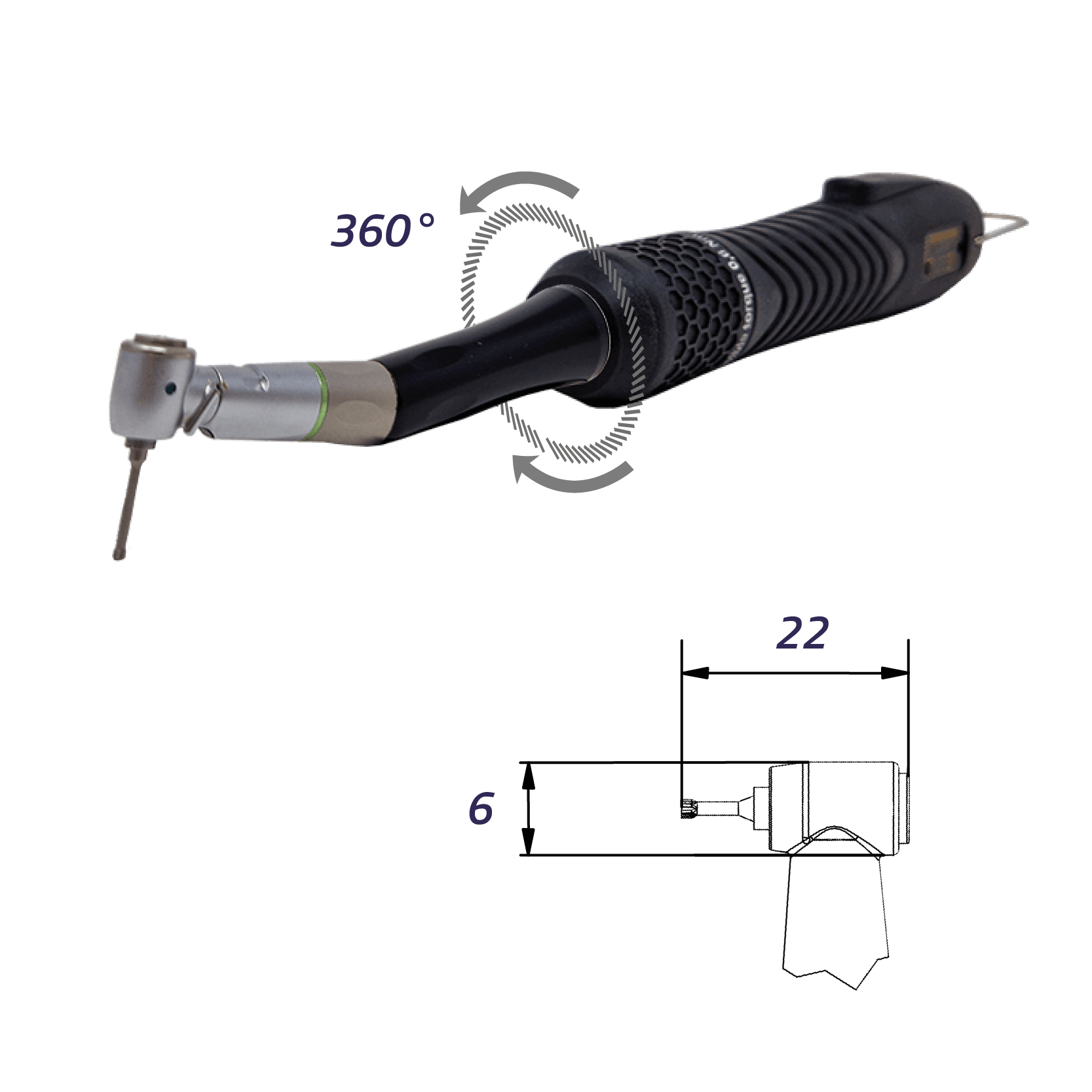

  • 360° rotation
  • Excellent weight / ergonomics ratio
  • Silent motor <70dBA

Product description

Equipped with a maintenance-free brushless motor, the mini angle
nutrunners GX 035 micro-screwdriver with lever start is the solution for your micro-assemblies with difficult access at high speeds and very low torque.
Its soft shut-off clutch is particularly suitable for assembling fragile parts.
It has advanced setting functions such as digital speed adjustment electronics.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
We also offer a range of dedicated bits and accessories to complete its installation such as torque protection ring.
The screwdriver comes with a 3m cable.
