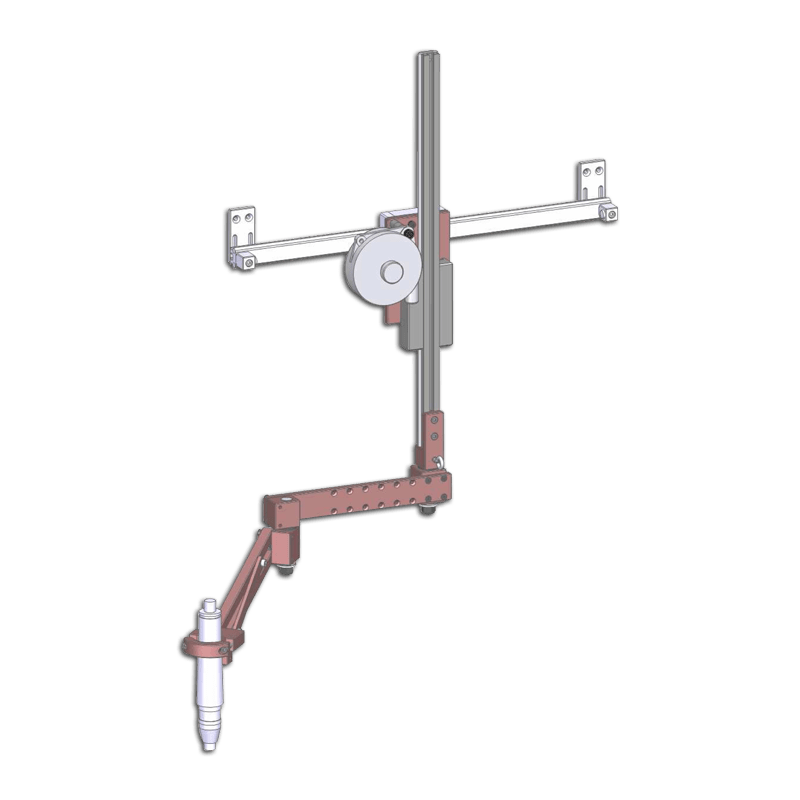

SLIDER BA 40 R/800 suspended torque reaction arm

Code 4-5201116

SLIDER BA 40 R/800 suspended torque reaction arm

Code 4-5201116

The SLIDER BA 40 R/800 suspended torque reaction arm combines the increased range and versatility of BA ... R articulated arms with the agility and compactness of the SLIDER arm concept. Suspended at the workstation, it optimizes user comfort, versatility of operation and does not disrupt the assembly workflow.

Technical details

Max torque
40 Nm lbf.in
Max load
3 kg lbs
Installation
Suspended
Functionalities
Verticality
Stroke/Working radius
800 mm inch
Vertical stroke
420 mm inch
Mini tool diameter
28 mm inch
Maxi tool diameter
52 mm inch
Standard tool holder
Standard

Benefits

Ergonomics
  • Suspended above the station, it does not disrupt the workflow
Productivity
  • Speed and precision of the tightening operation thanks to its vertical stroke and its linear arm
  • Flexible and precise tracking of the production flow thanks to its mounting on a cross rail

Product description

Compact and rigid, the SLIDER BA 40 R/800 torque reaction arm is suspended above the workstation.
Articulated and without inertia of movement, it does not disturb the workflow or the operator’s tasks.
It remains at your fingertips for fast gripping of the screwdriver and precise tightening without torque reaction.
Combined with an optional cross rail, its range is multiplied.
Several SLIDER hanging arms can be mounted on the same rail to perform all the desired tightening operations.

Resources

3Plan

3D CAD file - Slider BA 40 R_800 torque reaction arm - 4-5201116

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

60354

Torque reaction arm suspended SLIDER series user manual – MU.60354

- Starting up
- Settings
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
