SLIDER BA 100 R/900 suspended torque reaction arm

Code 4-5201118

SLIDER BA 100 R/900 suspended torque reaction arm

Code 4-5201118

The SLIDER BA 100 R/900 torque reaction arm combines the rigidity, increased range and versatility of the BA ... R articulated arms with the agility and compactness of the SLIDER suspension arm concept. Suspended at the station, it optimizes user comfort, versatility of execution and does not encumber the assembly workflow.

Technical details

Max torque
100 Nm lbf.in
Max load
5 kg lbs
Installation
Suspended
Functionalities
Verticality
Stroke/Working radius
900 mm inch
Vertical stroke
420 mm inch
Mini tool diameter
28 mm inch
Maxi tool diameter
52 mm inch
Standard tool holder
Standard

Benefits

Ergonomic
  • Suspended above the station it does not disrupt the workflow
Productivity
  • Quick and precise execution of the tightening thanks to its vertical stroke and articulated arm
  • Flexible and precise production flow tracking thanks to its mounting on a cross rail

Product description

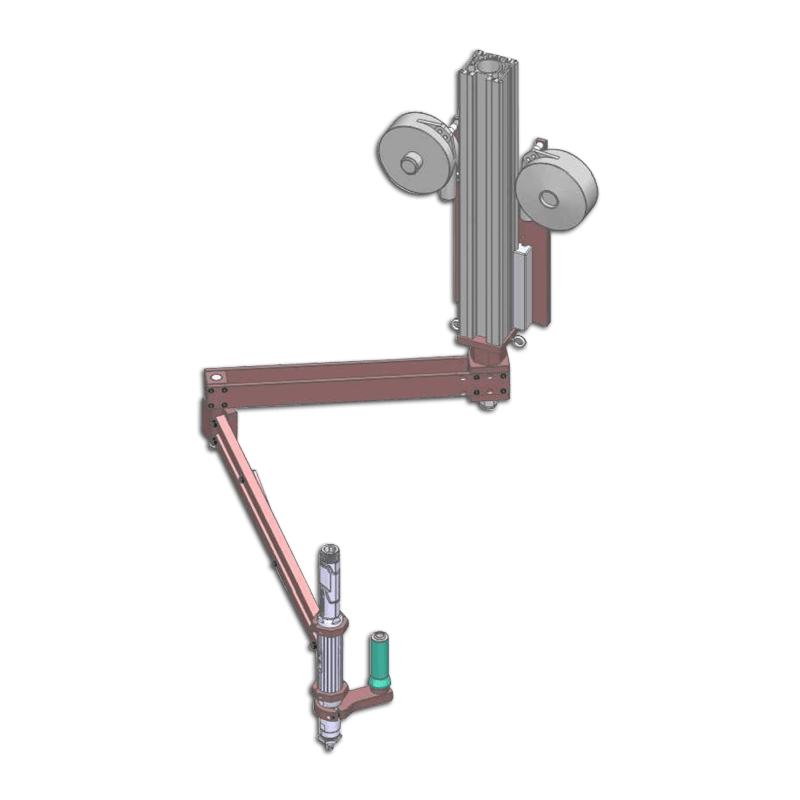

Compact and articulated, the SLIDER BA 100 R/900 torque reaction arm is suspended above the workstation.
Articulated, it does not disrupt the workflow or the operator’s tasks.
It remains at your fingertips for fast gripping of the screwdriver and precise tightening without torque reaction.
Combined with an optional cross rail, its range is multiplied.
Several SLIDER suspension arms can be mounted on the same rail to perform all the desired tightening operations.

Resources

3Plan

3D CAD file - Slider BA 100 R_900 torque reaction arm - 4-5201118

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

60354

Torque reaction arm suspended SLIDER series user manual – MU.60354

- Starting up
- Settings
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
