SLIDER BA 40 suspended torque reaction arm

Code 4-5201119

SLIDER BA 40 suspended torque reaction arm

Code 4-5201119

SLIDER BA 40 combines rigidity and range of BA linear arms with the agility and compactness of the SLIDER suspension arm concept. Suspended at the station, it optimizes user comfort and does not clutter the assembly workflow.

Technical details

Max torque
40 Nm lbf.in
Max load
3 kg lbs
Installation
Suspended
Functionalities
Verticality
Stroke/Working radius
755 mm inch
Vertical stroke
420 mm inch
Mini tool diameter
28 mm inch
Maxi tool diameter
52 mm inch
Standard tool holder
Standard

Benefits

Ergonomics
  • Suspended above the station, it does not clutter it
Productivity
  • Speed and precision of the screwing operation thanks to its vertical stroke and its linear arm
  • Flexible and precise tracking of the production flow thanks to its mounting on a cross rail.

Product description

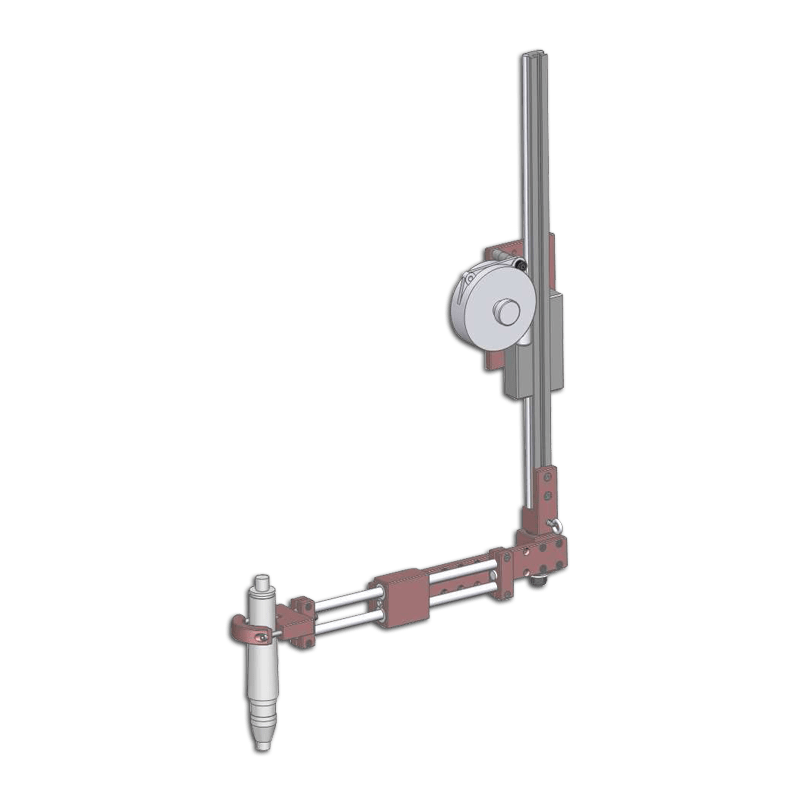

Compact and rigid, the SLIDER BA 40 suspended torque reaction arm is suspended above the workstation. In the rest position it does not disturb the production flow or the operator’s tasks.
It remains at your fingertips for fast gripping of the screwdriver and precise tightening without torque reaction.
Combined with an optional cross rail, its range is multiplied.
Several SLIDER arms can be mounted on the same rail to perform all the desired tightening operations.

Resources

3Plan

3D CAD file - Slider BA 40 torque reaction arm - 4-5201119

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

60354

Torque reaction arm suspended SLIDER series user manual – MU.60354

- Starting up
- Settings
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
