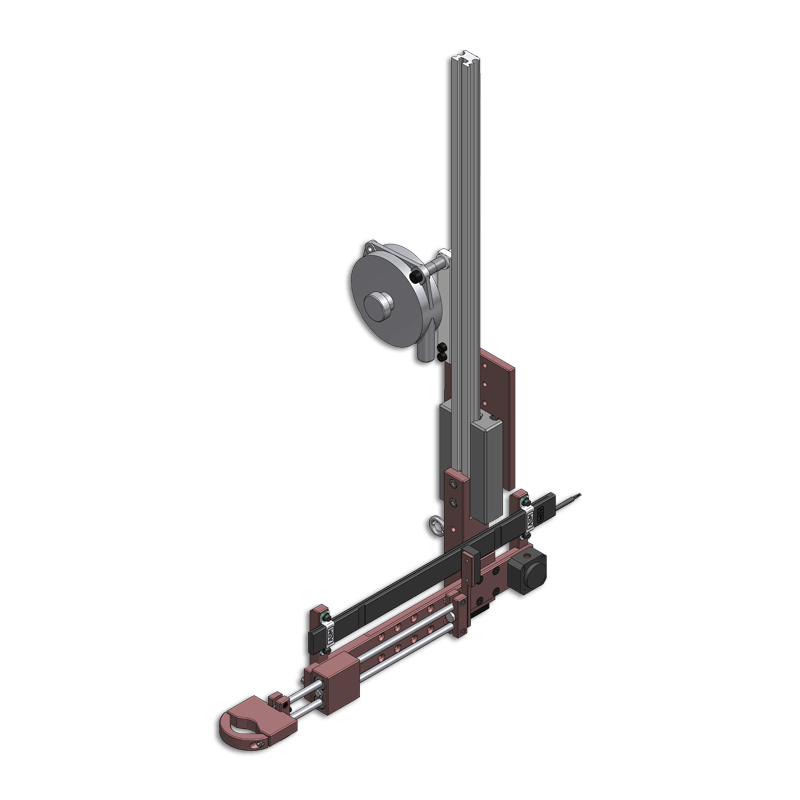

SLIDER BA 40 PC posi control suspended torque reaction arm

Code 4-5283122

SLIDER BA 40 PC posi control suspended torque reaction arm

Code 4-5283122

The SLIDER BA 40 PC suspended arm combines the rigidity and precision of BA linear arms with the agility and compactness of the SLIDER concept. As it is equipped with two X and Y absolute position encoders, the operator necessarily complies with the tightening sequences and the programmed tightening torques. Each screw is tighten in the right place and to the right torque.

Technical details
Benefits
Product description
Associated products
Resources

Technical details

Max torque

40 Nm lbf.in

Max load

3 kg lbs

Installation

Suspended

Functionalities

Verticality,

Tool positioning system

Stroke/Working radius

755 mm inch

Vertical stroke

420 mm inch

Mini tool diameter

28 mm inch

Maxi tool diameter

52 mm inch

Standard tool holder

Standard

Benefits

Assembly quality

Respect of programmed sequences and tightening torques
Detection of screw oversights and malfunctions
No defects
Perpendicularity of the tightening assured

Ergonomics

Suspended above the workstation, it does not clutter it

Comfort

Elimination of Musculoskeletal Disorders (MSDs)
Balancing of the tool
Flexible operation thanks to ball bushings
Visual guidance with the DPC Touch interface

Product description

The SLIDER BA 40 PC torque reaction arm offers a great flexibility of operation without inertia and guarantees the verticality of the tightening thanks to its linear stroke.
The quality of tightening is ensured thanks to a perfect balancing of the tool obtained by the presence of the position encoders.
