SLIDER 150 COMPACT 800 suspended torque reaction arm

Code 4-5283114

SLIDER 150 COMPACT 800 suspended torque reaction arm

Code 4-5283114

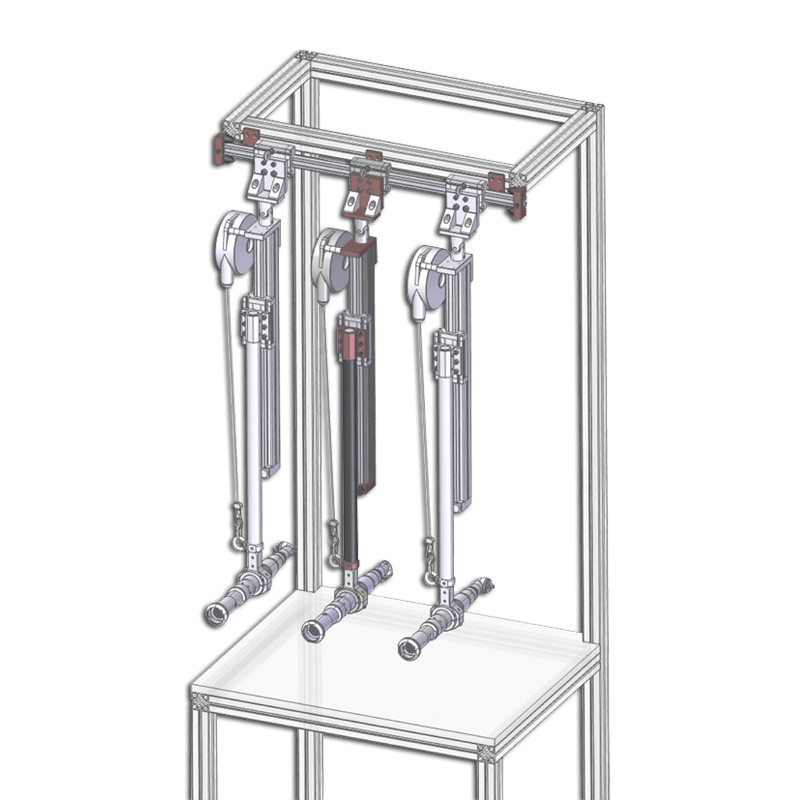

Suspended at the workstation, the SLIDER 150 /800 Compact arm is compact and versatile. It is ideal for vertical tightening with a straight or angle screwdriver. Several hanging arms can be installed at the same workstation.

Technical details

Max torque
150 Nm lbf.in
Max load
5 kg lbs
Installation
Suspended
Stroke/Working radius
800 mm inch
Vertical stroke
800 mm inch
Mini tool diameter
40 mm inch
Maxi tool diameter
63 mm inch
Standard tool holder
Standard

Benefits

Comfort
  • As flexible as a balancer thanks to its two universal joints
Ergonomics
  • Easy to install and compact, it does not clutter the workstation
Productivity
  • Flexible and precise tracking of the production flow thanks to its mounting on a cross rail

Product description

Mounted on a cross rail, ergonomics and torque recovery are perfect on assembly lines (engines, chassis, compressors, transformers ...).
The SLIDER 150 Compact suspended torque reaction arm is rigid and very comfortable for the operator thanks to the lightness of the carbon fiber and the flexibility of the lower and upper universal joints.
Mounted on an optional cross rail and equipped with a rotary clamp on request, the vertical and horizontal tightening operations are carried out quickly and precisely during the progression of the line.

Resources

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

60354

Torque reaction arm suspended SLIDER series user manual – MU.60354

- Starting up
- Settings
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
