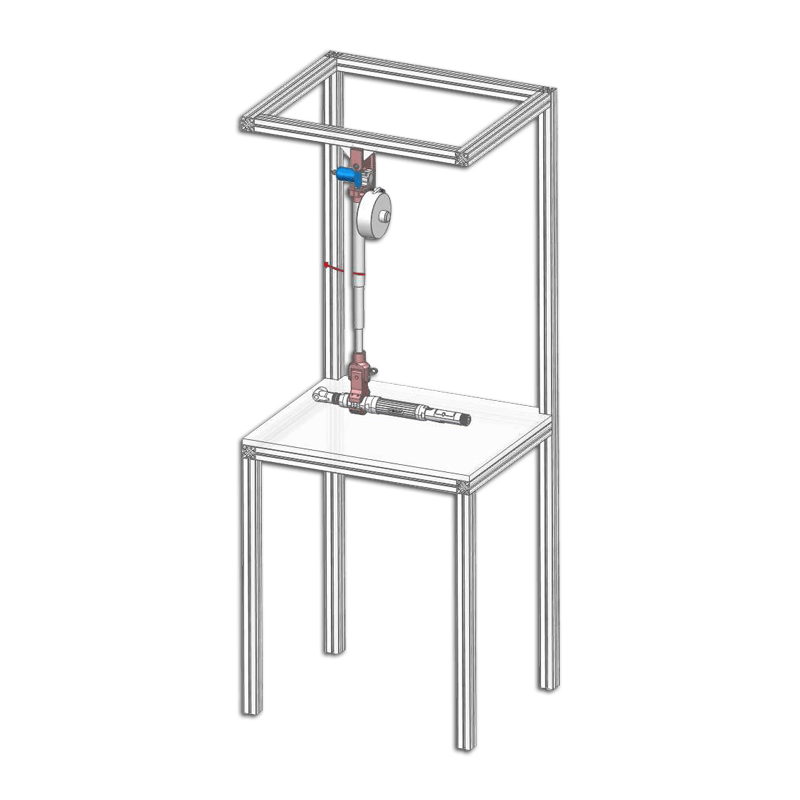

DMF 30 LAPC/960 D posi control carbon telescoping arm

Code 4-5300595

DMF 30 LAPC/960 D posi control carbon telescoping arm

Code 4-5300595

In addition to the unparalleled benefits of the design of DMF carbon fiber torque telescopic arms, DMF 30 LAPC/960  is equipped with 2 position encoders: one an angle the second a cable encoder. Your operators therefore necessarily respect the programmed tightening sequences. Each screw is tightened to the right torque and in the right place. No defects.

Technical details

Max torque
30 Nm lbf.in
Max load
4 kg lbs
Installation
Bench mount,
Suspended
Functionalities
Tool positioning system
Stroke/Working radius
960 mm inch
Mini tool diameter
28 mm inch
Maxi tool diameter
52 mm inch
Standard tool holder
P1

Benefits

Assembly quality
  • Respect of programmed tightening sequences and torques
  • Detection of screw oversights and malfunctions
  • No defects
  • Guaranteed perpendicularity of tightening
Ergonomic
  • Compact
  • Easy to install
  • Does not encumber the workflow
Economical
  • Maintenance-free
  • Longer life thanks to carbon fiber
Ease of use
  • No movement inertia and perfect recovery of torque thanks to the lightness and rigidity of carbon fiber

Product description

Thanks to its compactness, the DMF 30 LAPC / 960 Posi Control carbon telescopic arm is designed to be easily installed on assembly lines that are already very congested.
