DMFi 70/1500 D+ carbon telescoping torque reaction arm
Code 4-5344020
DMFi 70/1500 D+ carbon telescoping torque reaction arm
Code 4-5344020
Designed with carbon rigid inverted telescopic tubes, the DMFi 70/1500 neutralizes torque reaction up to 70 Nm and gives you unparalleled benefits. Compact, lightweight, easy to install and maintenance-free, DMFi 70/1500 gives operators flexibility and extreme ease of use. It comes with a P2 gripping tool.
Technical details
Max torque
70 Nm
Max load
8 kg
Installation
Bench mount,
Suspended
Stroke/Working radius
1500 mm
Mini tool diameter
35 mm
Maxi tool diameter
52 mm
Standard tool holder
P2
Benefits
Ergonomic
- Compact
- Easy to install
- Does not encumber the workflow
Economical
- Maintenance-free
- Longer life thanks to carbon fiber
Ease of use
- No movement inertia and perfect recovery of torque thanks to the lightness and rigidity of carbon fiber
- Compatible with all types of vertical, frontal and lateral tightening screwdrivers
Product description

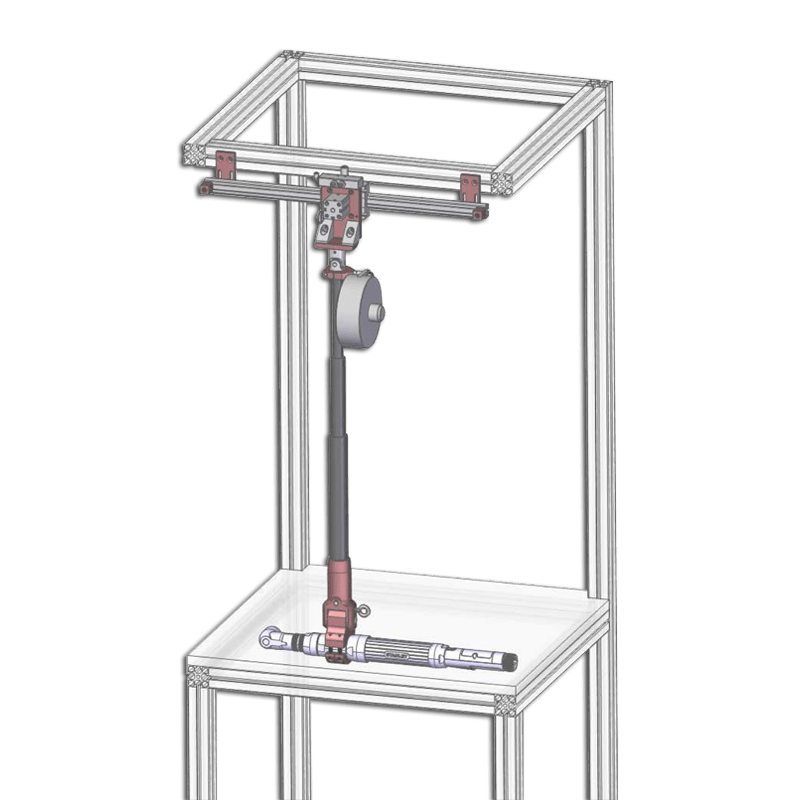

Suspended on a fixed chassis or rail, the use of the DMFi 70/1500 torque reaction arm is ideal for assembly lines of vehicles, engines or gearboxes.
Many designs of gripping tools are available for vertical, frontal and lateral tightening operations.
