DMFi 300/1500 D carbon telescoping torque reaction arm

Code 4-5344029

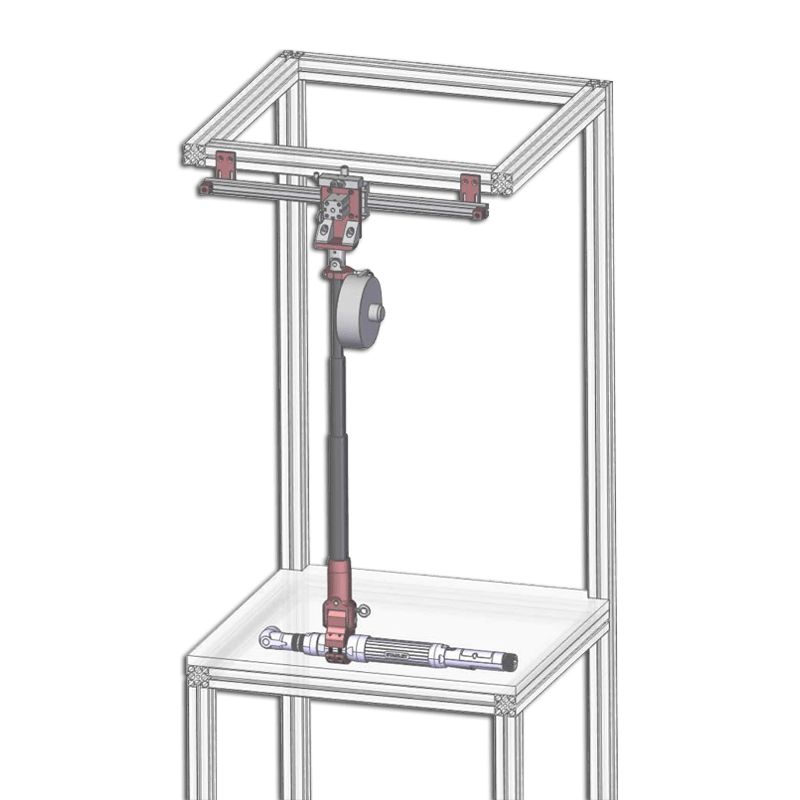

DMFi 300/1500 D carbon telescoping torque reaction arm

Code 4-5344029

Designed with rigid carbon telescopic tubes, the DMFi 300/1500  arm neutralizes torque reaction and gives you unparalleled benefits. Compact, lightweight, easy to install and maintenance-free, DMFi 300/1500 gives operators extreme ease of use without movement inertia. It comes with a P2 gripping tool.

Technical details

Max torque
300 Nm lbf.in
Max load
10 kg lbs
Installation
Bench mount,
Suspended
Stroke/Working radius
1500 mm inch
Mini tool diameter
40 mm inch
Maxi tool diameter
73 mm inch
Standard tool holder
P2

Benefits

Ergonomic
  • Compact
  • Easy to install
  • Does not encumber the workflow
Economical
  • Maintenance-free
  • Longer life thanks to carbon fiber
Ease of use
  • No movement inertia and perfect recovery of torque thanks to the lightness and rigidity of carbon fiber
Versatility
  • Compatible with all types of vertical, frontal and lateral tightening screwdrivers

Product description

The DMFi 300/1500  carbon torque reaction telescopic arm is ideal for assembly lines of vehicles, engines and gearboxes.

Many designs of gripping tools are available for vertical, frontal and lateral tightening operations.

Resources

3Plan

3D CAD file - DMF 300_1500 torque reaction arm - 4-5244029

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

60353 cover

User manual torque reaction arm DMF / DMFi DMF LPC / DMF LAPC series– MU.60353

- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
