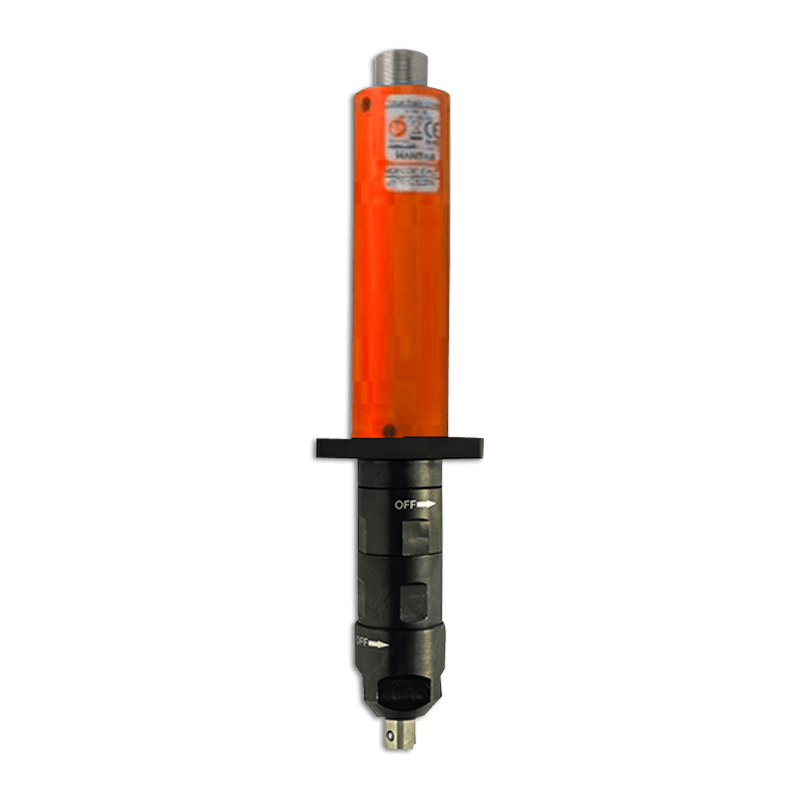

MDA 3264-Q current control electric fixtured spindle
MDA 3264-Q current control electric fixtured spindle
Compact and easily integrated, the MDA3264-Q tightening spindle is designed for high-speed torque and angle tightening operations requiring precision (3%) and traceability of tightening torques (Cmk> 1.67 with +/- 10% tolerance ).
Technical details
Benefits
- 3% precision regardless of tightening elasticity
- Maxxon Brushless Motor made in Switzerland
- Flange mounting and aluminum body
- Traceability of tightening torques via Ethernet
- Visualization of the curves
- Anti-error system
Product description
Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The screw curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
Associated products

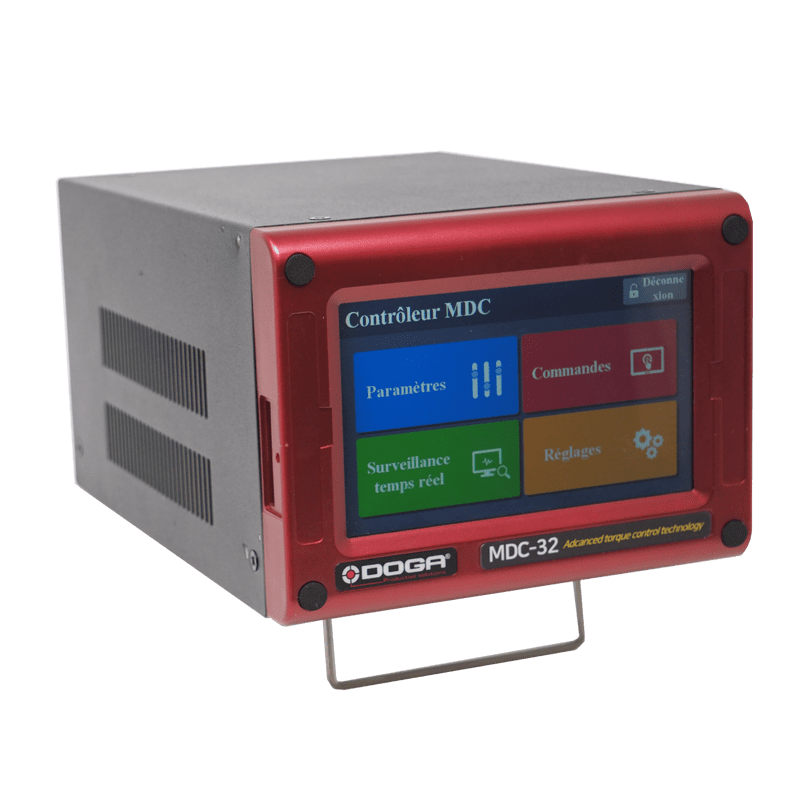

MDC controller
MDC26s models: code 4-1000209 / 4-1000213
MDC-32 v2 model: code 4-1050666
ParaMon-Pro X controller
Resources
1Commercial documentation
Torque and angle control screwdrivers - MD series - DOC.60303
- Straight screwdrivers - MD serie
- Pistol screwdrivers - MDP serie
- Angle nutrunners - MDH serie
- Spindle for automation - MDA serie
- MDC controllers
- ParaMon free PC software
- Accessories and calibration
- Additional products
- Our services
4Software
ParaMon softwares
For BM, BMT, MDCv2, MDC Mini and MDTC series
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database – dedicated to torque and angle tools and ParaMon-Pro X controllers.
- ParaMon Unified:
PC software for parameters setup and real time monitoring – only for Torque and Angle tools.
- Controller firmware and LCD firmware
For MDC and MDTC only.
Update compatible with any actual tool and controller (except MDCv1 legacy product.
Files version:
- BM_FW_v1.33.5+XML_v1.8
- BMT_FW_v1.43.5+XML_v1.9
- MDC22_MINI_FW_v3.00.5+XML_v1.8
- MDCv2_26&32_FW_v2.32.2+XML_v1.8
- MDTC38_Normal_FW_v1.33.7+XML_v1.10
- ParaMon III_v3.00.6_20231221
- ParaMon III user manual - DOC.60505
- ParaMon_Unified_v1.00.5_20220526
- ParaMon Unified user manual - DOC.60343
- ParaMon XML vs Firmware 2402 - DOC.60205
2Technical documentation
COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455
- Com Protocole MODBUS MDv2 MDT – DOC.60430
- Modbus MDCv2 address and function – DOC.60454
- Modbus MDTC address and function – DOC.60455
COM OPEN Protocol MDCv2/MDTC series user manual - DOC.60428
1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages
Instructions manual torque and angle control tools - MD series / MDC V2 - MU.60342
- General safety rules
- Product
- Main features
- Screwdriver
- Screwdriver cables
- Controller MDC V2
- Operation
- Firmware upgrade
- Torque calibration and compensation
- Error code
- Web server
- Parameter details and factory setting
- MOSBUS COM protocol
- Maintenance
- Standard
