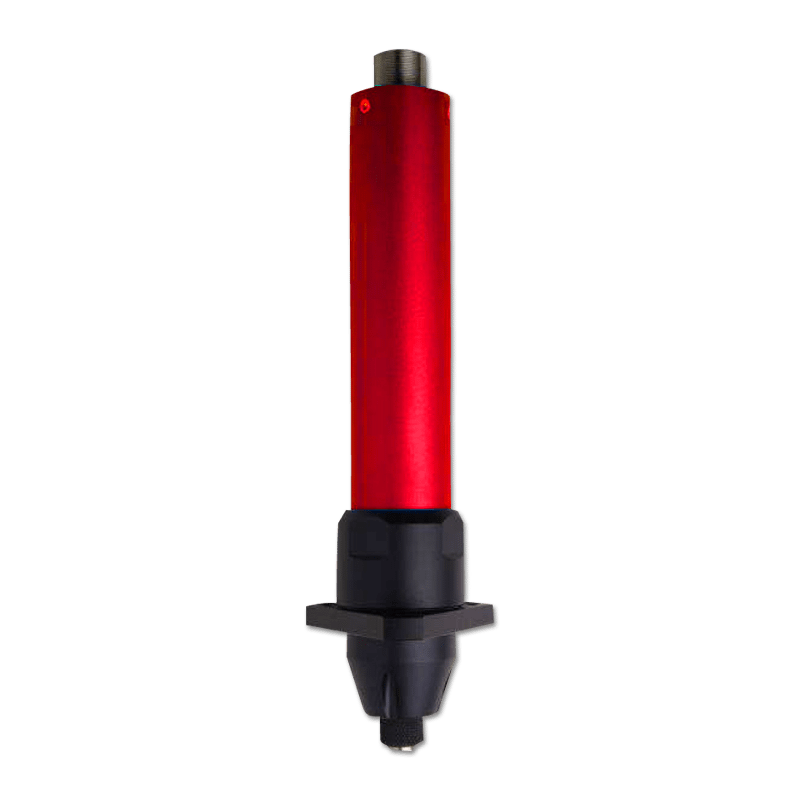

MDA 3208-A current control electric fixtured spindle
MDA 3208-A current control electric fixtured spindle
Compact and easily integrated, the MDA3208-A tightening spindle is designed for high-speed torque and angle tightening operations requiring precision (3%) and traceability of tightening torques (Cmk> 1.67 with +/- 10% tolerance ).
Technical details
Benefits
- 3% precision regardless of tightening elasticity
- Maxon Motor made in Switzerland
- Flange mounting and aluminum body
- Traceability of tightening torques via Ethernet
- Visualization of the curves
- Anti-error system
Product description
Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The screw curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
Associated products

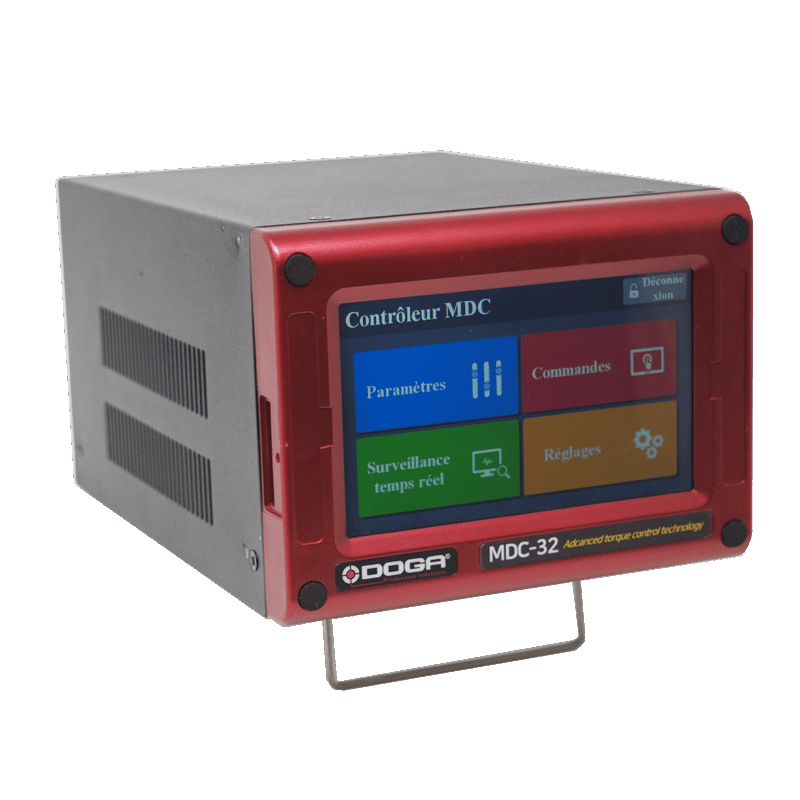

MDC controllers
ParaMon-Pro X controller
Resources
3Plan
1Commercial documentation
Torque and angle control screwdrivers - MD series - DOC.60303
- Straight screwdrivers - MD series
- Pistol screwdrivers - MDP series
- Angle head screwdrivers - MDH series
- Spindle for automation - MDA series
- MDC controllers
- Programming software
- Accessories and services provided
- Additional products
- Our services
4Software
ParaMon software
For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database.
- Controller firmware and LCD firmware
Update compatible with any actual tool and controller (except MDCv1 legacy product).
Files version:
- BM_FW v1.34.3 + XML v1.10
- BM_FW_v1.54.5_RS9116+XML_v1.10
- BMT_FW v1.44.3 + XML v1.10
- BMT_FW_v1.54.5_RS9116+XML_v1.10
- MDC22_MINI_FW_v3.01.2+XML_v1.10
- MDC26&32_FW_v2.32.7+XML_v1.10
- MDTC38_Normal_FW_v1.34.4+XML_v1.12
- ParaMon_v3.00.8_20240517
- ParaMon III user manual - DOC.60505
- 60205 ParaMon XML vs Firmware 11-2025
2Technical documentation
COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455
- Com Protocole MODBUS MDv2 MDT – DOC.60430
- Modbus MDCv2 address and function – DOC.60454
- Modbus MDTC address and function – DOC.60455
COM OPEN Protocol MD(T) / BM(T) series user manual - DOC.60428
1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages
Instructions manual torque and angle control tools - MD series / MDC V2 - MU.60342
- General safety rules
- Product
- Main features
- Screwdriver
- Screwdriver cables
- Controller MDC V2
- Operation
- Firmware upgrade
- Torque calibration and compensation
- Error code
- Web server
- Parameter details and factory setting
- MOSBUS COM protocol
- Maintenance
- Standard
