MDA 2213-A+C mini current control electric fixtured spindle
MDA 2213-A+C mini current control electric fixtured spindle

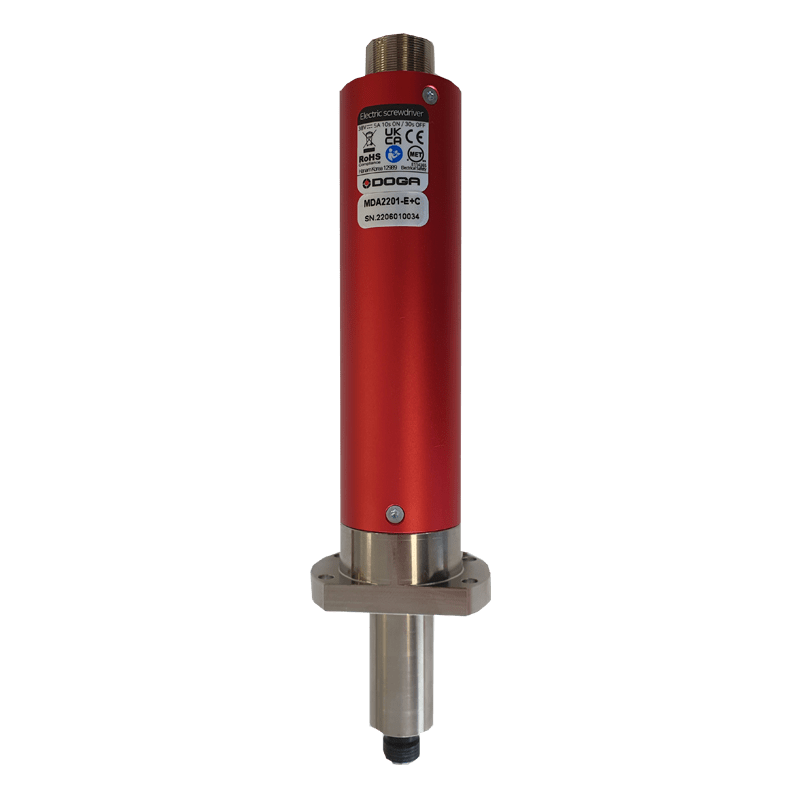

Compact and easy to integrate, the MDA2213-A+C mini telescopic spindle is designed for microtorque tightening operations (from 0.148 to 0.686 Nm) requiring repeatability (3%) and traceability of tightening torques. It is dedicated to applications in the fields of watchmaking, eyewear, microelectronics, luxury leather goods, dental prosthesis, etc.
Technical details
Benefits
3% precision regardless of tightening elasticity
Maintenance-free Maxon motor made in Switzerland
Flange mounting and aluminum body
Traceability of tightening torques via Ethernet
Visualization of the curves
Anti-error system
Product description
Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The screw curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
The telescopic stroke is 10 mm.
It is delivered without a tool cable.
Associated products
MDC controllers
ParaMon-Pro X controller
BS-5C color ID bit tray
DPC Touch: sequencing and process monitoring interface
Air vacuum system & sleeves
By holding the screw under vacuum at the end of the screwdriver, this screw gripping system meets your non-magnetic or small screw assembly needs, especially when access to the screw point is restr
Resources
3Plan
3D - MDA2213-A+C - P207779
Download the file in zip1Commercial documentation
Torque and angle control screwdrivers - MD series - DOC.60303
- Straight screwdrivers - MD series
- Pistol screwdrivers - MDP series
- Angle head screwdrivers - MDH series
- Spindle for automation - MDA series
- MDC controllers
- Programming software
- Accessories and services provided
- Additional products
- Our services
4Software
ParaMon software
The compressed file contains 2 generations of software and screwdriver firmware.
You should use the generation corresponding to the firmware currently installed on your screwdriver or controller in order to update it to the latest version without changing settings.
- ParaMon III for GEN1 screwdrivers with firmware versions v2.3.xx and v3.xx.xx
- ParaMon4 for GEN2 screwdrivers with firmware versions v4.xx.xx and v5.xx.xx
Upgrading from GEN1 to GEN2 is possible but will result in incompatibilities if your equipment communicates with an existing automation system, as well as a loss of settings (please contact us first).
Please note that BM(T) screwdrivers have two distinct firmware versions depending on the Wi-Fi module model installed. If the character ‘+’ appears after the text ‘network info’, the firmware to use is the one with a filename containing xxx_9116_xxx.bin.
Please refer to document 60205, which lists all firmware versions.
Files version:
• Readme
• 60205 ParaMon XML vs Firmware 07-2026
ParaMon III:
• BM_FW v1.34.6 + XML v1.10
• BM_FW_v1.54.6_RS9116+XML_v1.10
• BMT_FW v1.44.7 + XML v1.11
• BMT_FW_v1.54.7_RS9116+XML_v1.11
• MDC22_MINI_FW_v3.01.2+XML_v1.10
• MDC26&32_FW_v2.32.7+XML_v1.10
• MDTC38_Normal_FW_v1.34.5+XML_v1.13
• ParaMon_v3.00.9_20260402
• ParaMon III manuel d'utilisation - DOC.41014
• ParaMon III user manual - DOC.60505
ParaMon4:
• BM_FW_v4.0.12+XML_v4.2.1
• BM_FW_v4.3.12_RS9116+XML_v4.2.1
• BMT_FW_ v4.0.13+XML_v4.2.1
• BMT_FW_ v4.3.13_RS9116+XML_v4.2.1
• BMT40_FW_v4.0.14+XML_v4.2.1
• MDC_FW_v4.0.12+XML_v4.2.1
• MDC_MINI_FW v4.0.12+XML_v4.2.1
• MDTC_MINI_FW_v4.0.14+XML_v4.2.1
• MDTC38_FW_v4.0.14+XML_v4.2.1
• ParaMon_4.1.2_net8.0_20260508
• ParaMon-Pro X v4.2.2 20251216
• Mise à jour firmware vers Gen 2
• Update to Gen 2 firmware
Download the file in zip
2Technical documentation
COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455
- Com Protocole MODBUS MDv2 MDT – DOC.60430
- Modbus MDCv2 address and function – DOC.60454
- Modbus MDTC address and function – DOC.60455
COM OPEN Protocol MD(T) / BM(T) series user manual - DOC.60428
1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages
Instructions manual torque and angle control tools - MD series / MDC V2 - MU.60342
- General safety rules
- Product
- Main features
- Screwdriver
- Screwdriver cables
- Controller MDC V2
- Operation
- Firmware upgrade
- Torque calibration and compensation
- Error code
- Web server
- Parameter details and factory setting
- MOSBUS COM protocol
- Maintenance
- Standard
