PHD 100N-A/U hybrid torque control electric screwdriver

Code 4-1070034

PHD 100N-A/U hybrid torque control electric screwdriver

Code 4-1070034

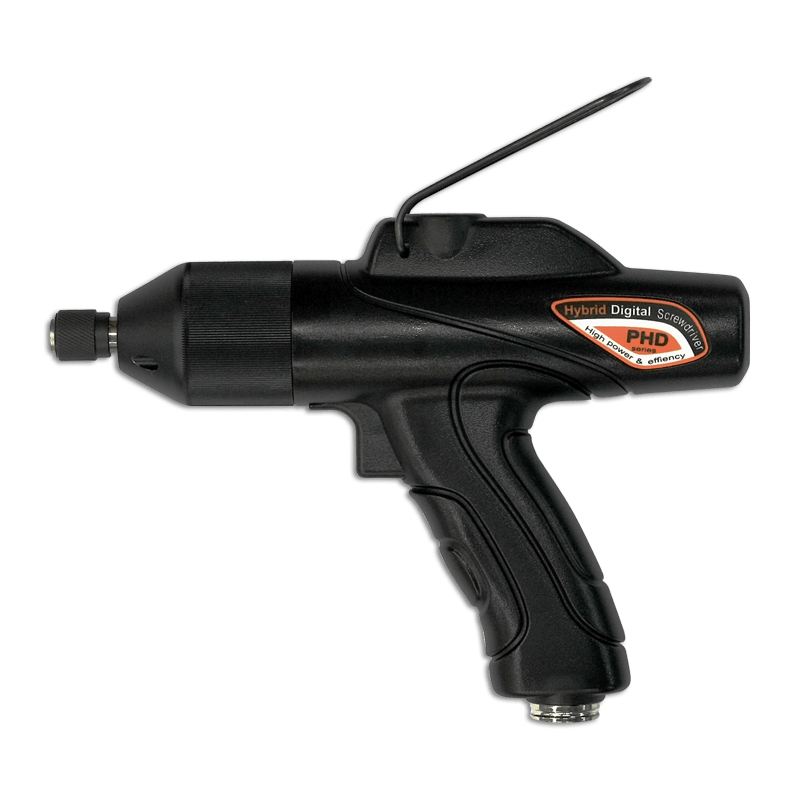

The PHD100N-A / U screwdriver is ideal for horizontal tightening operations. Combined with the HDC controller, this Hybrid screwdriver is multi-torque and makes strategy sequencing possible. It guarantees high repeatability and high tightening precision. Tightening is triggered on the pistol grip.

Technical details

Type of screwdriver
Hybrid torque control electric screwdriver
Min Torque
3 Nm lbf.in
Max Torque
9.8 Nm lbf.in
Min speed rotation
250 tr/min rpm
Maxi speed rotation
500 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.86 kg lbs
Shape
Pistol
Starting system
Trigger
Power
Electric
Functionalities
ESD,
Torque programmable,
Counting
Suitable controller
HDC-35i

Benefits

Productivity
  • Multi-torque (8 tightening programs)
  • Program sequencing
  • Mechanical clutch adjusted by air pressure
  • High tightening precision
Quality
  • Brushless Maxxon motor (maintenance free) made in Switzerland
  • Poka Yoke counting
  • Display of tightening results
Comfort
  • Ergonomic grip
  • Excellent weight / ergonomics ratio
  • Silent motor <70 dBA

Product description

This screwdriver’s design is unique.
Equipped with a high quality Brushless motor manufactured in Switzerland (Maxxon) and a pneumatically controlled torque limiter, the Hybrid screwdriver can execute up to 8 tightening programs and perform sequences of different torques on a single piece with counting function.
This technology allows you to multiply tightening strategies while reducing the number of tools at your workstation.
Configurable on the front panel via its HDC 35i controller or its Hi-Manager software, the tool is easy and quick to set up.
The cable exit can be at the top or bottom of the screwdriver depending on the workstation ergonomics.
