PGY 50 ESD-G shut-off brushless electric screwdriver

Code 4-1078016

PGY 50 ESD-G shut-off brushless electric screwdriver

Code 4-1078016

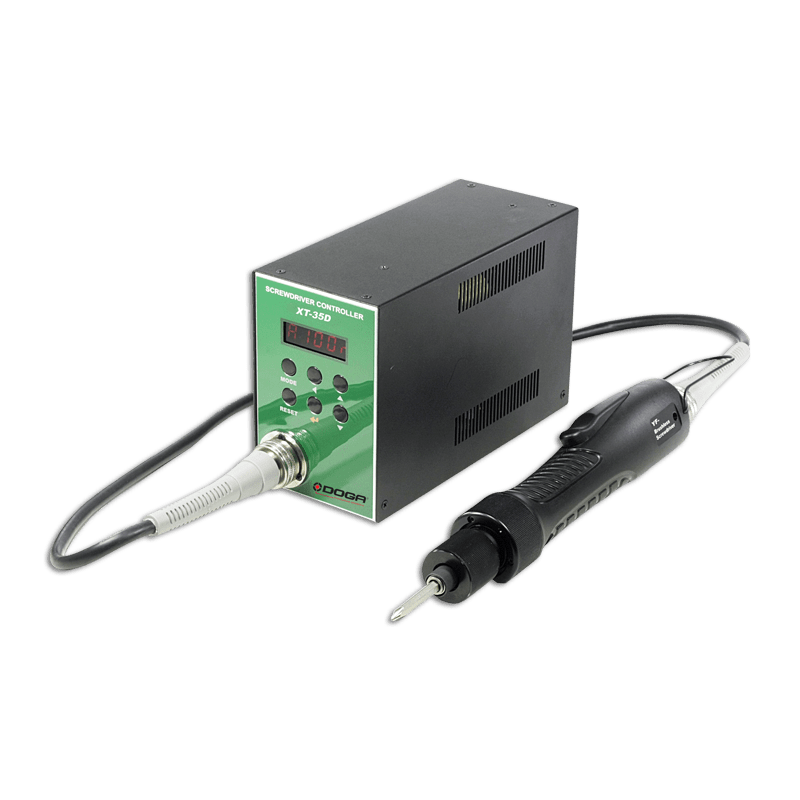

The PGY50 ESD-G pistol handgrip screwdriver is ideal for horizontal tightening operations with cable entry at the bottom. Combined with the XT35D controller, this total shut-off brushless screwdriver improves the quality of your assemblies while reducing your costs. It is controlled by a trigger on the grip.

Technical details Benefits Product description Associated products Resources

Technical details

Type of screwdriver

Shut-off brushless electric screwdriver

Min Torque

1 Nm lbf.in

Max Torque

4.9 Nm lbf.in

Min speed rotation

400 tr/min rpm

Maxi speed rotation

1100 tr/min rpm

Drive Size

1/4" F/Hex

Weight

0.9 kg lbs

Shape

Pistol

Starting system

Trigger

Power

Electric

Functionalities

ESD

Suitable controller

XT35D

Benefits

Productivity

Multi-sequence functionality: tighten / hold / loosen
High quality, precise and impact-free mechanical clutch
Designed for high speeds
Torque or angle trigger

Quality

Brushless Maxxon motor (maintenance free) made in Switzerland
Input / output signals for Poka Yoke control
Defects signaling by LED indicator on the screwdriver
ESD-free body

Comfort

Easy integration by fixing with a mounting flange
Start and reversibility remote controls
Silent motor <70 dBA
Cable connection at the bottom

Product description

Equipped with a maintenance-free brushless motor, the PGY pistol handgrip screwdriver is the solution for your high-speed applications.
This mechanical clutch screwdriver features advanced, password-protected settings, such as multi-sequence tighten / hold / loosen with torque or angle control.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
