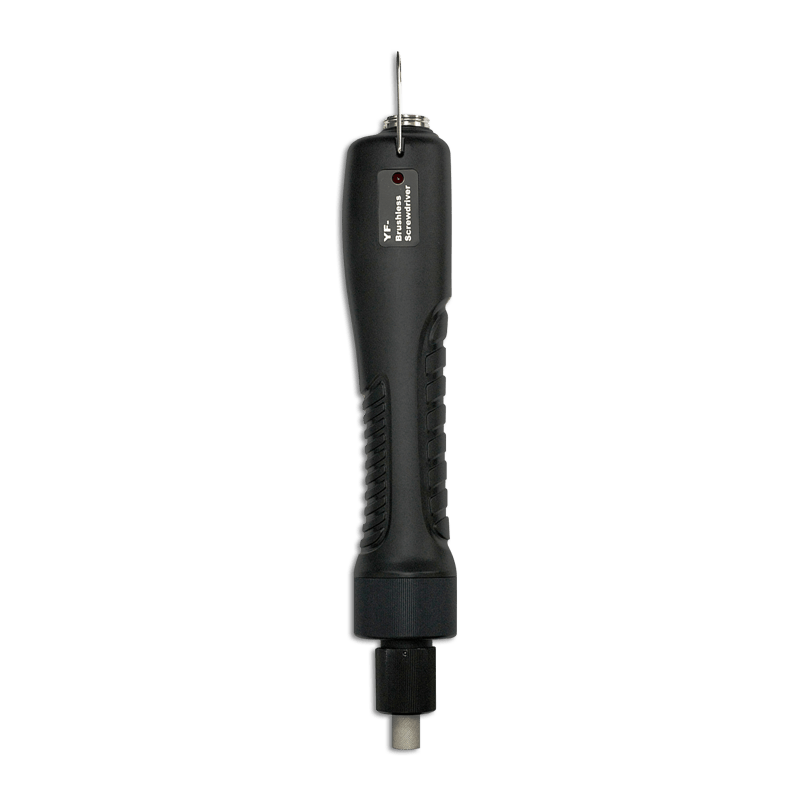

GY 35P ESD-G shut-off brushless electric screwdriver

Code 4-1064101

GY 35P ESD-G shut-off brushless electric screwdriver

Code 4-1064101

The GY35P ESD-G straight screwdriver is ideal for vertical tightening operations.

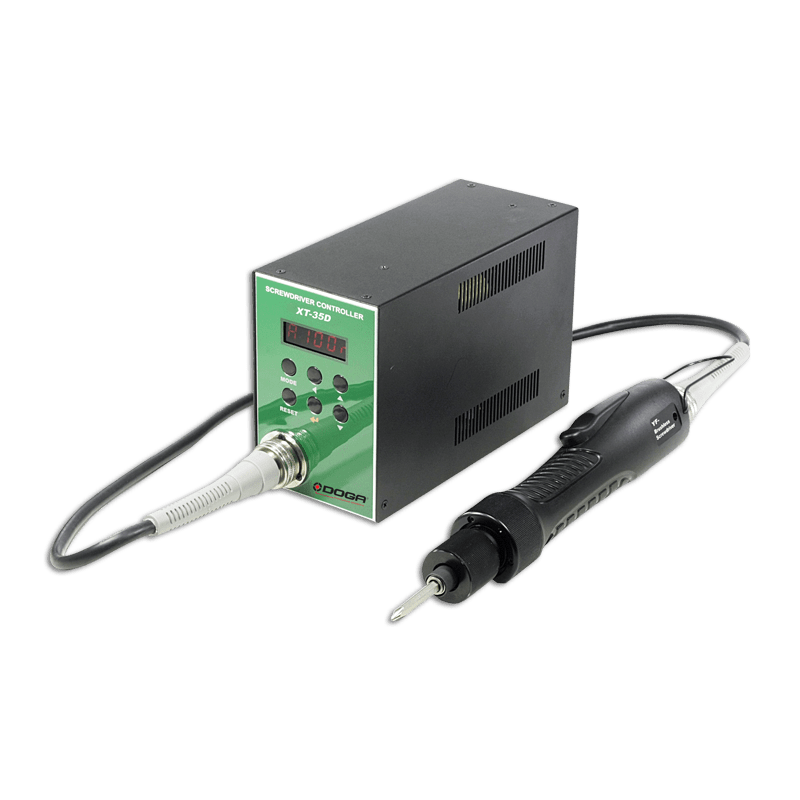

Combined with the XT-35D controller, this brushless shut-off screwdriver improves the quality of your assemblies while reducing your costs. It is controlled by push start.

Technical details

Type of screwdriver
Shut-off brushless electric screwdriver
Min Torque
0.7 Nm lbf.in
Max Torque
3.4 Nm lbf.in
Min speed rotation
500 tr/min rpm
Maxi speed rotation
1500 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.8 kg lbs
Starting system
Push to start
Power
Electric
Functionalities
ESD
Suitable controller
XT35D

Benefits

Productivity
  • Multi-sequence functionality: tighten / hold / loosen
  • High quality, precise and impact-free mechanical clutch
  • Designed for high speeds
  • Torque or angle trigger
Quality
  • Brushless Maxxon motor (maintenance free) made in Switzerland
  • Input / output signals for Poka Yoke control
  • Defects signaling by LED indicator on the screwdriver
  • ESD-free body
Comfort
  • Ergonomic grip
  • Excellent weight / ergonomics ratio
  • Silent motor <70 dBA

Product description

Equipped with a maintenance-free brushless motor, the GY push-start straight screwdriver is the solution for your high-speed applications.
This mechanical clutch screwdriver features advanced, password-protected settings, such as multi-sequence tighten / hold / loosen with torque or angle control.
Easily integrated on your production station, it can be locked remotely and sends the motor rotation and torque information required for counting screws.
