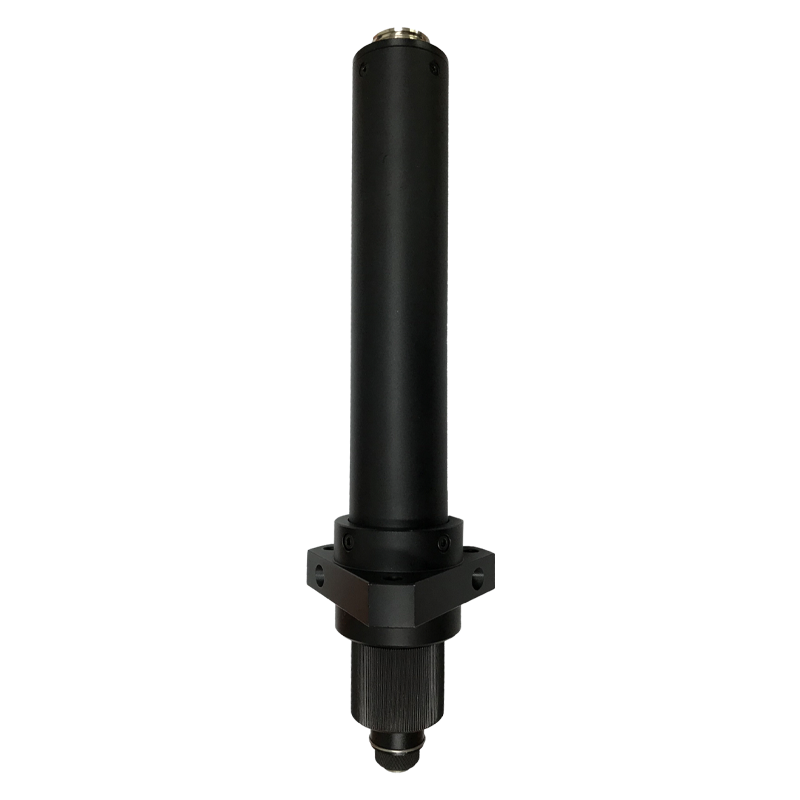

GYA 50-G shut-off brushless electric fixtured spindle

Code 4-1064106

GYA 50-G shut-off brushless electric fixtured spindle

Code 4-1064106

The  GYA50-G straight spindle is ideal for automated tightening operations.
Combined with the XT-35D controller, this brushless shut-off spindle improves the quality of your assemblies while reducing your costs. It is controlled by external inputs / outputs.

Technical details

Type of screwdriver
Shut-off brushless electric fixtured spindle
Min Torque
1 Nm lbf.in
Max Torque
4.9 Nm lbf.in
Min speed rotation
400 tr/min rpm
Maxi speed rotation
1100 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.95 kg lbs
Starting system
Remote
Power
Electric
Suitable controller
XT35D

Benefits

Productivity
  • Multi-sequence functionality: tighten / hold / loosen
  • High quality, precise and impact-free mechanical clutch
  • Designed for high speeds
  • Torque or angle trigger
Quality
  • Brushless Maxxon motor (maintenance free) made in Switzerland
  • Input / output signals for Poka Yoke control
  • Defects signaling by LED indicator on the screwdriver
Comfort
  • Ergonomic grip
  • Excellent weight / ergonomics ratio
  • Silent motor <70 dBA

Product description

Equipped with a maintenance-free brushless motor, the GY spindle is the solution for your automated, high-speed applications.
This mechanical clutch spindle has advanced, password-protected settings, such as multi-sequence tighten / hold / loosen with torque or angle control.
Easily integrated on your assembly station, it can be controlled clockwise or counter-clockwise remotely and sends the motor rotation and torque information required for counting screws.
