BA 5 linear torque reaction arm

Code 4-5200085

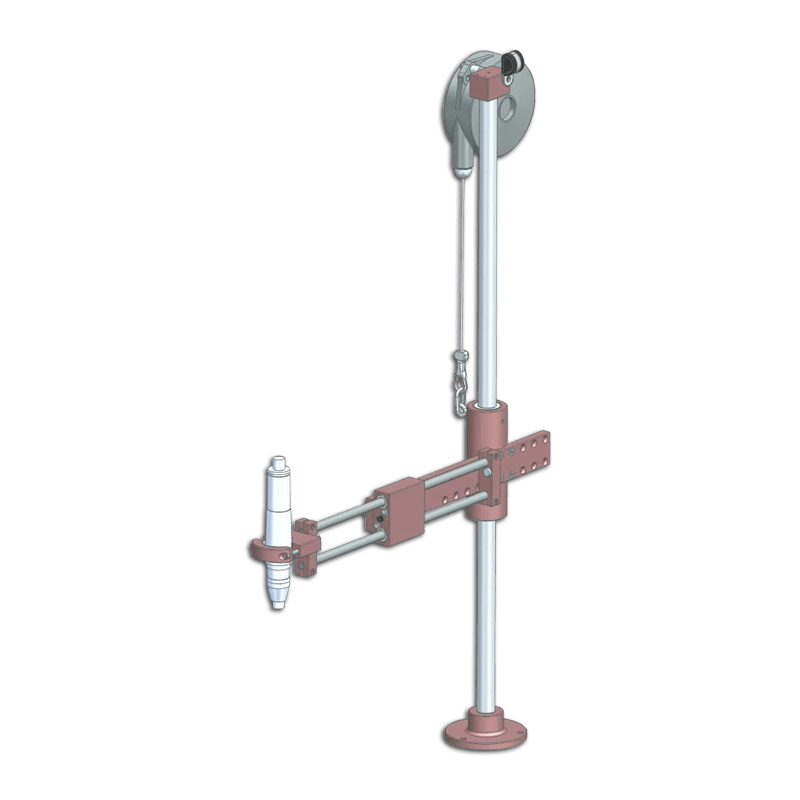

BA 5 linear torque reaction arm

Code 4-5200085

Designed to be easily installed on your worktops, the BA 5 linear arm is compact, robust and versatile thanks to the many options available. It guarantees perfect torque recovery, a balanced tool and optimized perpendicularity of tightening.

Technical details

Max torque
5 Nm lbf.in
Max load
0.9 kg lbs
Installation
Bench mount
Functionalities
Verticality
Stroke/Working radius
515 mm inch
Vertical stroke
330 mm inch
Mini tool diameter
25 mm inch
Maxi tool diameter
42 mm inch
Standard tool holder
Straight

Benefits

Comfort
  • Suppression of MSD
  • Balanced tool
  • Flexible operation thanks to ball bushings
Assembly quality
  • Guaranteed perpendicularity of tightening
Productivity
  • Guidance of operating movements

Product description

BA linear arms prevent operator MSD for up to 100 Nm.
They are ideal for vertical tightening operations.
Their design guarantees an excellent perpendicularity of tightening, a high working flexibility thanks to the ball bushings and a perfectly balanced tool.
Their use on workstations increases productivity, operators’ comfort and greatly reduces the costs of absenteeism related to MSD.

Resources

3Plan

Thumbnail

3D CAD file - BA 5 torque reaction arm - 4-5200085

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

Cover User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
