Assembly technology

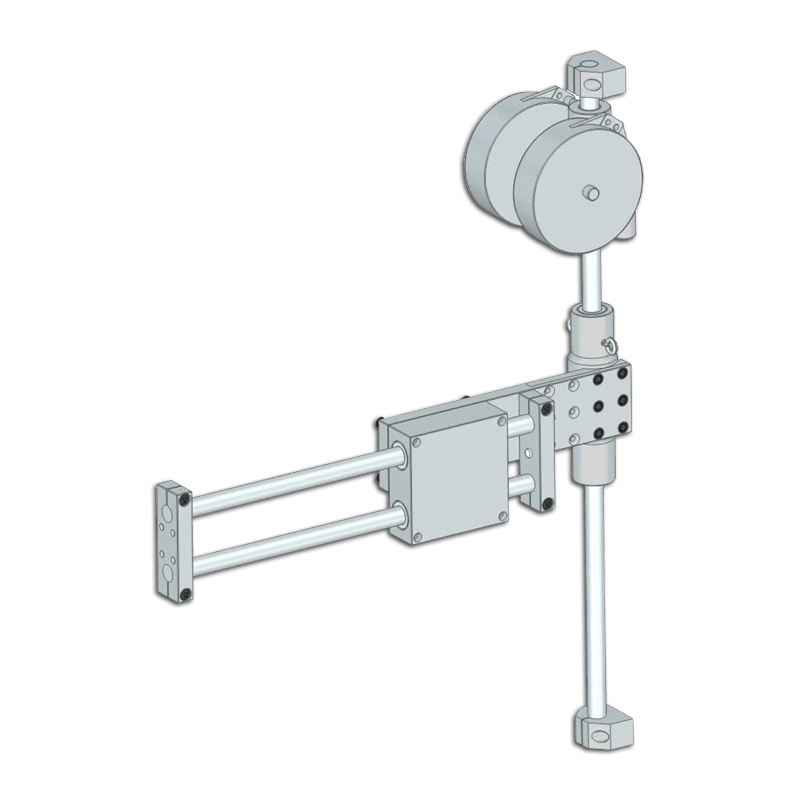

BA 400 linear torque reaction arm

Code 4-5201093

BA 400 linear torque reaction arm

Code 4-5201093

Designed to be easily installed on a table or on the floor, the BA 400 linear arm is compact, robust and versatile thanks to the many options available. It guarantees a perfect torque recovery up to 400 Nm and an optimized  perpendicularity of tightening.

Technical details

Max torque
400 Nm lbf.in
Max load
12 kg lbs
Installation
Floor mount
Functionalities
Verticality
Stroke/Working radius
806 mm inch
Vertical stroke
300 mm inch
Standard tool holder
Optional

Benefits

Comfort
  • Suppression of MSD
  • Balanced tool
  • Flexible operation thanks to ball bushings
Quality of assembly
  • Guaranteed perpendicularity of tightening
Productivity
  • Guidance of operating movements

Product description

The BA 400 linear arm prevents operator MSD up to 400 Nm.
Ideal for vertical tightening operations, the design of this linear torque reaction arm guarantees excellent perpendicularity of tightening, a perfectly balanced tool and high working flexibility thanks to ball bushings.
Its use on the workstation increases productivity, operator comfort and greatly reduces the costs of absenteeism.

Resources

3Plan

Thumbnail

3D CAD file - BA 400 torque reaction arm - 4-5201093

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

Cover User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
