BA 40 PC posi control linear torque reaction arm

Code 4-5201087

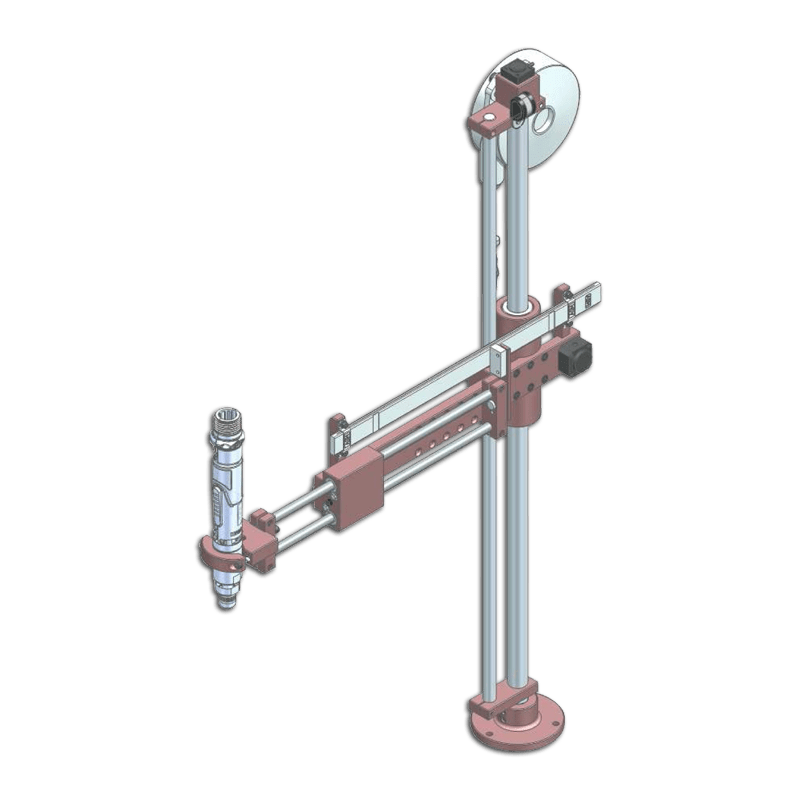

BA 40 PC posi control linear torque reaction arm

Code 4-5201087

The BA 40 PC linear arm is compact, robust and versatile. It guarantees perfect torque recovery and optimized perpendicularity of tightening. It is equipped with two X and Y absolute position encoders, so that your operators necessarily respect the programmed tightening sequences and torques. Each screw is in the right place and tightened to the right couple: no defects!

Technical details

Max torque
40 Nm lbf.in
Max load
2.2 kg lbs
Installation
Bench mount
Functionalities
Verticality,
Tool positioning system
Stroke/Working radius
765 mm inch
Vertical stroke
410 mm inch
Mini tool diameter
28 mm inch
Maxi tool diameter
52 mm inch
Standard tool holder
Straight

Benefits

Assembly quality
  • Respect of programmed tightening sequences and torques
  • Detection of screw oversights and malfunctions
  • no defects
  • Guaranteed perpendicularity of tightening
Comfort
  • Suppression of MSD
  • Balanced tool
  • Flexible operation thanks to ball bushings
  • Visual guidance with the DPC Touch

Product description

Designed to be easily installed on your worktops, BA linear arms prevent operator MSD up to 100 Nm.
Thanks to their two X and Y absolute position encoders, your operators necessarily respect the programmed tightening sequences and torques.
Each screw is tightened in the right place and to the right torque: no defects!
Linear torque reaction arms are ideal for vertical tightening operations.
Their design guarantees an excellent perpendicularity of tightening and a high working flexibility thanks to ball bushings.
Their use at the workstation increases productivity and operator comfort and greatly reduces the costs of absenteeism.

Associated products

Resources

3Plan

Thumbnail

3D CAD file - BA 40 PC torque reaction arm - 4-5201087

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

Cover User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
