BA 500 R / 2500 articulated torque reaction arm

Code 4-5283106

BA 500 R / 2500 articulated torque reaction arm

Code 4-5283106

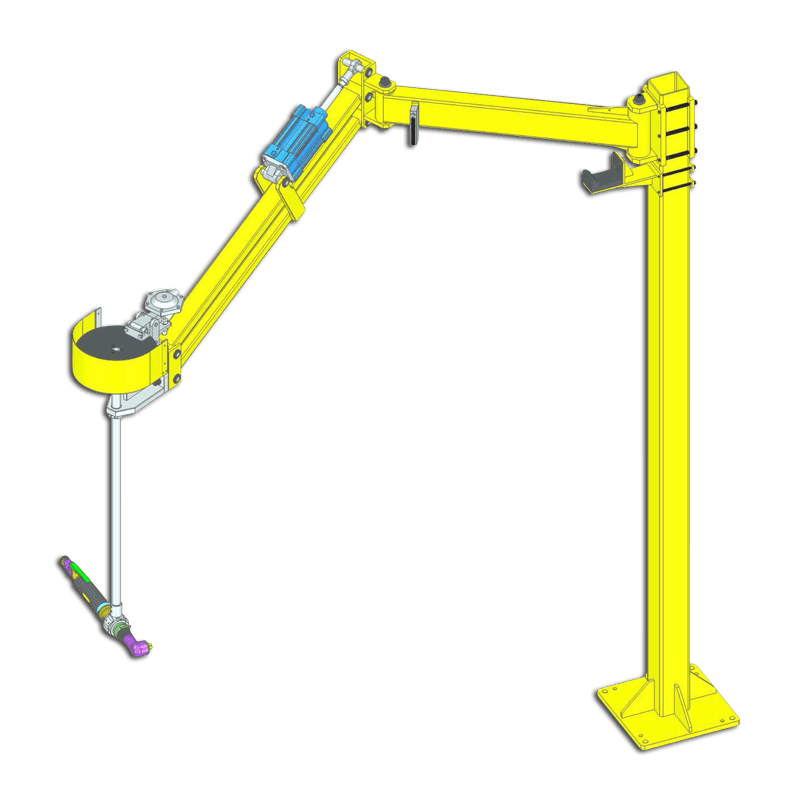

Designed to be easily installed on the floor, the articulated geometry of BA 500 R / 2500  torque reaction arms gives you optimized work coverage. It offers high working flexibility thanks to its downward assistance kit.
As it is compatible with straight, pistol and angle drivers, you enjoy great versatility of performance.

Technical details

Max torque
500 Nm lbf.in
Max load
30 kg lbs
Installation
Floor mount
Functionalities
Verticality
Stroke/Working radius
2500 mm inch
Vertical stroke
650 mm inch
Standard tool holder
Optional

Benefits

Comfort
  • Perfectly balanced tool thanks to the pneumatic balancing kit
  • Zero gravity
  • Little movement inertia thanks to the articulated arm
Versatility
  • Vertical and horizontal tightening operation with rotary clamp and brake (optional)

Product description

The mechanically welded structure of the BA 500 R / 2500 torque reaction arm gives it great rigidity and reliability. Designed to be easily installed on the floor, the articulated geometry of the BA 500 R / 2500 gives you both optimized working coverage and high working flexibility thanks to its downward assistance kit. As it is compatible with straight, pistol and angle drivers, you enjoy great versatility of performance.
