BA 180 R /1200 articulated torque reaction arm

Code 4-5201095

BA 180 R /1200 articulated torque reaction arm

Code 4-5201095

Designed to be easily installed on your worktops or on the floor, the articulated geometry of BA180 R / 1200 torque reaction arms gives you optimized work coverage. Its aluminum structure offers high working flexibility.
As it is compatible with straight, pistol and angle drivers, you enjoy great versatility of performance.

Technical details

Max torque
180 Nm lbf.in
Max load
6 kg lbs
Installation
Floor mount
Functionalities
Verticality
Stroke/Working radius
1200 mm inch
Vertical stroke
480 mm inch
Standard tool holder
Optional

Benefits

Comfort
  • No movement inertia
  • Easy screw insertion thanks to articulated geometry and aluminum structure
  • Suppression of MSD
  • Balanced tool
Versatility
  • Compatible with straight, pistol and angle drivers with a wide range of gripping tools
Assembly quality
  • Guaranteed perpendicularity of tightening

Product description

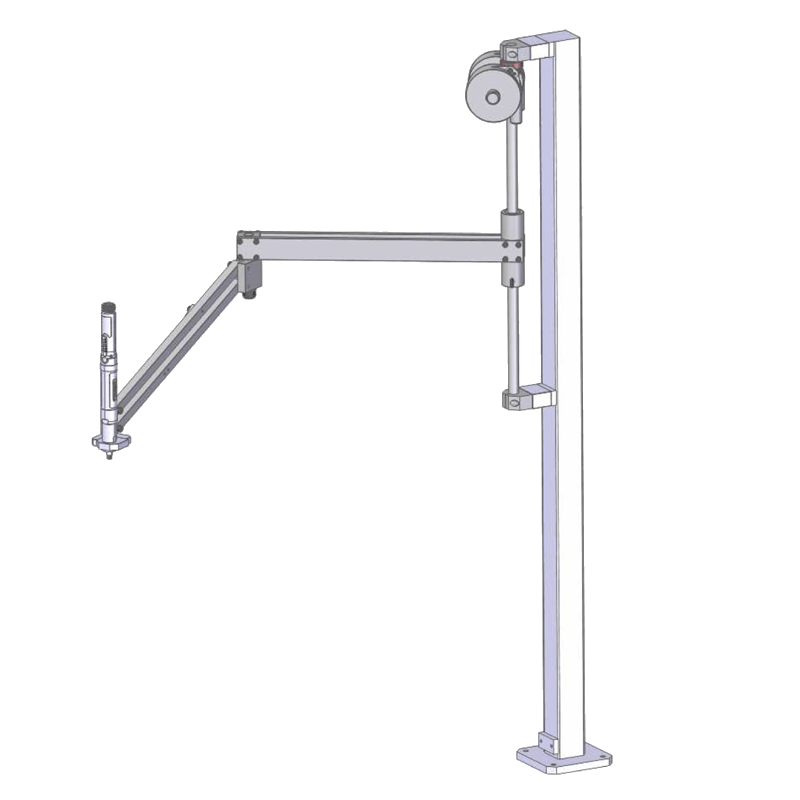

Designed to be easily installed on your worktops or on the floor, the articulated geometry of BA 180 R / 1200 torque reaction arms gives you optimized work coverage.
Its aluminum structure offers high working flexibility.
As it is compatible with straight, pistol and angle drivers, you enjoy great versatility of performance.
