BA 12 R / 600 articulated torque reaction arm

Code 4-5201002

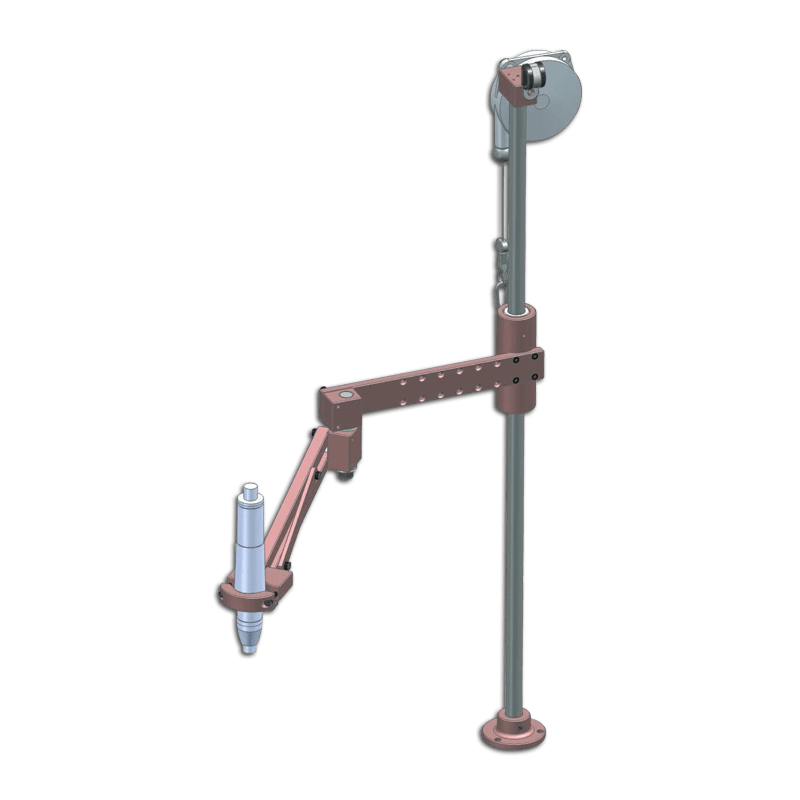

BA 12 R / 600 articulated torque reaction arm

Code 4-5201002

Designed to be easily installed on your worktops, the articulated geometry of the BA12R / 600  torque reaction arm gives you both an optimized operating radius and high working flexibility. Thanks to its rotary articulation, there is no movement inertia. Compatible with straight, pistol and angle drivers, it gives you great versatility of performance.

Technical details

Max torque
12 Nm lbf.in
Max load
1.2 kg lbs
Installation
Bench mount
Functionalities
Verticality
Stroke/Working radius
600 mm inch
Vertical stroke
380 mm inch
Mini tool diameter
25 mm inch
Maxi tool diameter
50 mm inch
Standard tool holder
Straight

Benefits

Comfort
  • No movement inertia
  • Easy screw insertion thanks to articulated geometry
  • Suppression of MSD
  • Balanced tool
Versatility
  • Compatible with straight, pistol and angle drivers with a wide range of gripping tools
Assembly quality
  • Guaranteed perpendicularity of tightening

Product description

The articulated geometry of the BA 12 R / 600 torque reaction arm offers many advantages.
With an improved minimum operating radius, neutral movement inertia, easy insertion, it is ideal for tightening operations at reduced distances.
It is compatible with straight, pistol and angle drivers.
You enjoy great versatility of performance.
Its design also guarantees excellent perpendicularity of tightening, a perfectly balanced tool and suppression of MSD.

Resources

3Plan

Thumbnail

3D CAD file - BA 12 R_600 torque reaction arm - 4-5201002

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

Cover User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
