BA 10 GPC posi control articulated torque reaction arm

Code 4-5250500

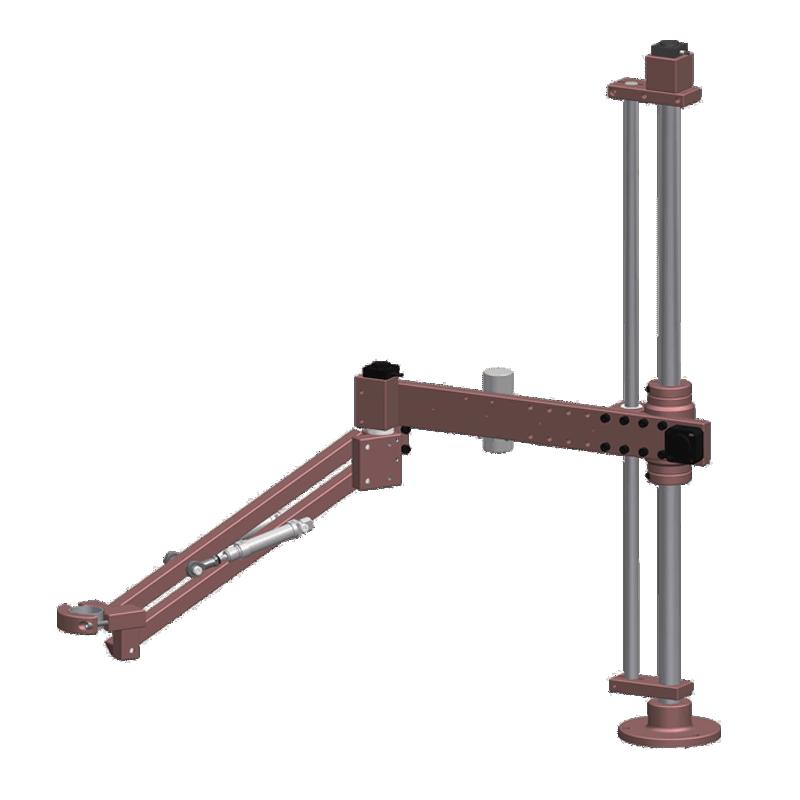

BA 10 GPC posi control articulated torque reaction arm

Code 4-5250500

The BA 10 GPC torque reaction arm gives you both optimized work coverage and high working flexibility thanks to its downward assistance kit. It is equipped with two X and Y absolute position encoders, so that your operators necessarily respect the programmed tightening sequences and torques.

Technical details

Max torque
10 Nm lbf.in
Max load
1 kg lbs
Installation
Bench mount
Functionalities
Verticality,
Tool positioning system
Stroke/Working radius
470 mm inch
Vertical stroke
170 mm inch
Mini tool diameter
25 mm inch
Maxi tool diameter
50 mm inch
Standard tool holder
Straight

Benefits

Assembly quality

  • Respect of programmed tightening sequences and torques
  • Detection of screw oversights and malfunctions
  • No defects
  • Guaranteed perpendicularity of tightening

Comfort

  • No movement inertia thanks to articulated geometry
  • Easy and precise insertion of the screw thanks to the pneumatic cylinder
  • Suppression of MSD
  • Balanced tool
  • Zero gravity

Productivity

  • Increased operator speed thanks to the flexibility of the downward kit and the articulated geometry


Associated products

Resources

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

Cover User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
