BA 10 G/600 articulated torque reaction arm

Code 4-5201014

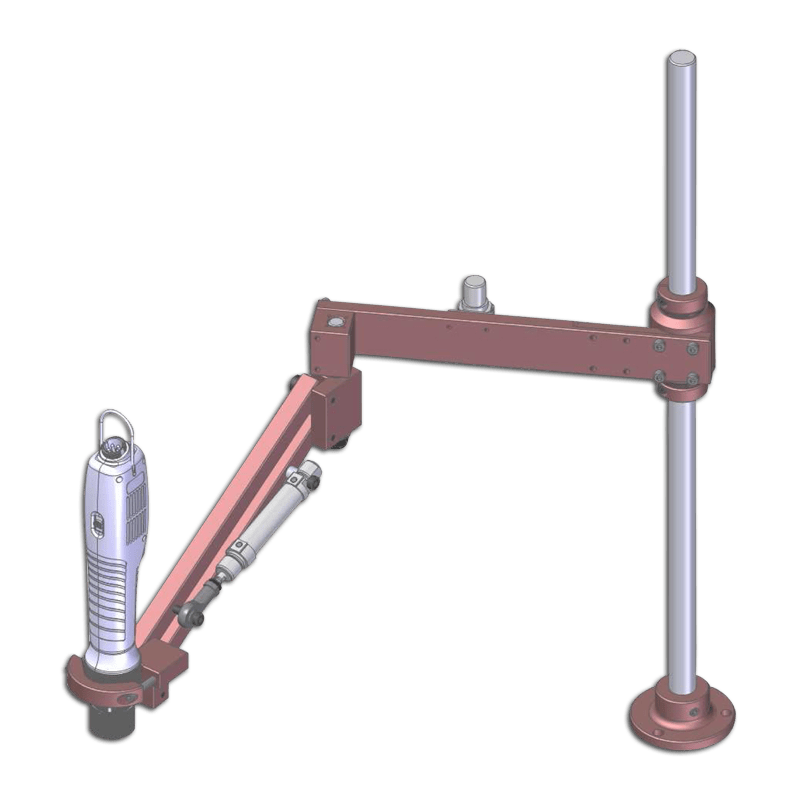

BA 10 G/600 articulated torque reaction arm

Code 4-5201014

Designed to be easily installed on your worktops, the articulated geometry of the BA 10 G/600 torque reaction arm gives you both optimized work coverage and high working flexibility thanks to its downward assistance kit. Compatible with straight, pistol and angle drivers, you enjoy great versatility of use.

Technical details

Max torque
10 Nm lbf.in
Max load
1 kg lbs
Installation
Bench mount
Functionalities
Verticality
Stroke/Working radius
600 mm inch
Vertical stroke
170 mm inch
Mini tool diameter
25 mm inch
Maxi tool diameter
50 mm inch
Standard tool holder
Straight

Benefits

Comfort
  • No movement inertia thanks to articulated geometry
  • Easy and precise insertion of the screw thanks to the pneumatic cylinder
  • Suppression of MSD
  • Balanced tool
  • Zero gravity
Productivity
  • Increased operator speed thanks to the flexibility of the downward kit and the articulated geometry

Resources

3Plan

Thumbnail

3D CAD file - BA10G_600 torque reaction arm - 4-5201014

.stp source

Download the file in zip

1Commercial documentation

Catalog torque reaction systems and posi-control systems - DOC.60163

The widest range of reaction arms to meet your various demanding requirements.
  • Linear reaction arms BA Series
  • Travelling arms BA...C Series
  • Articulated arms BA...R Series
  • Articulated and air balanced pantograph
  • arm BA...G Serie
  • Telescoping arms DMF/DMFI Series
  • Special solutions
  • Suspended arms SLIDER Series
Download the file in pdf

2Technical documentation

Cover User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

User manual - BA series - Torque reaction arms linears, articulated, cartesians with/without posi control - DOC.60351

- Information
- Starting up
- Settings
- Use
- Maintenance
- Safety
- Standards
- Annexes

Download the file in pdf
