Bit tray Color ID BST-Quick Change
Bit tray Color ID BST-Quick Change

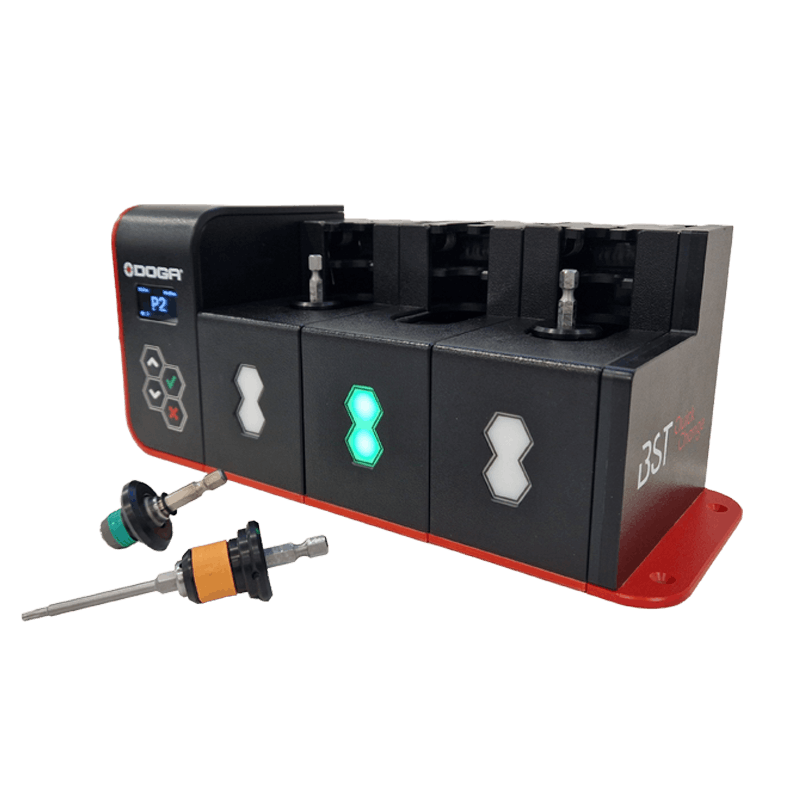

The BST-Quick Change Color ID allows the operator a quick bit shift with a smooth, and natural motion of the screwdriver and selects the correct tightening program thanks to color identification. Keying is assured in an absolute way by color recognition on each bit. Save time while improving the ergonomics of your assembly operations.
Benefits
Error proofing
• Color keying bits
Easy adjustment
• Self-learning of bit color for each slot
• Free program assignment for each bit
• Multilingual configuration
• Free program assignment for each bit
• Multilingual configuration
Compatibility
• Suitable with all types of bits: hex. 1/4’’, (max. Ø 18 mm, length from 49 to 100 mm, and max. Ø 15 mm, length from 100 to 250 mm)
• All types of controllers with digital IO’s
• All types of controllers with digital IO’s
Ergonomics
• Quick change
• Vertical use
• Illuminated rings around the slots for intuitive selection
• OLED display
• With or without a reaction arm
• Vertical use
• Illuminated rings around the slots for intuitive selection
• OLED display
• With or without a reaction arm
Productivity
• Faster bit shift
Product description
Use
Easily setup, the Color ID BST-QC bit tray automatically memorizes which bit is assigned to which slot.
It guides the operator to ensure the right match between selected bit and tightening program, thanks to color identification.
A unique process with 7 colors.
It guides the operator to ensure the right match between selected bit and tightening program, thanks to color identification.
A unique process with 7 colors.

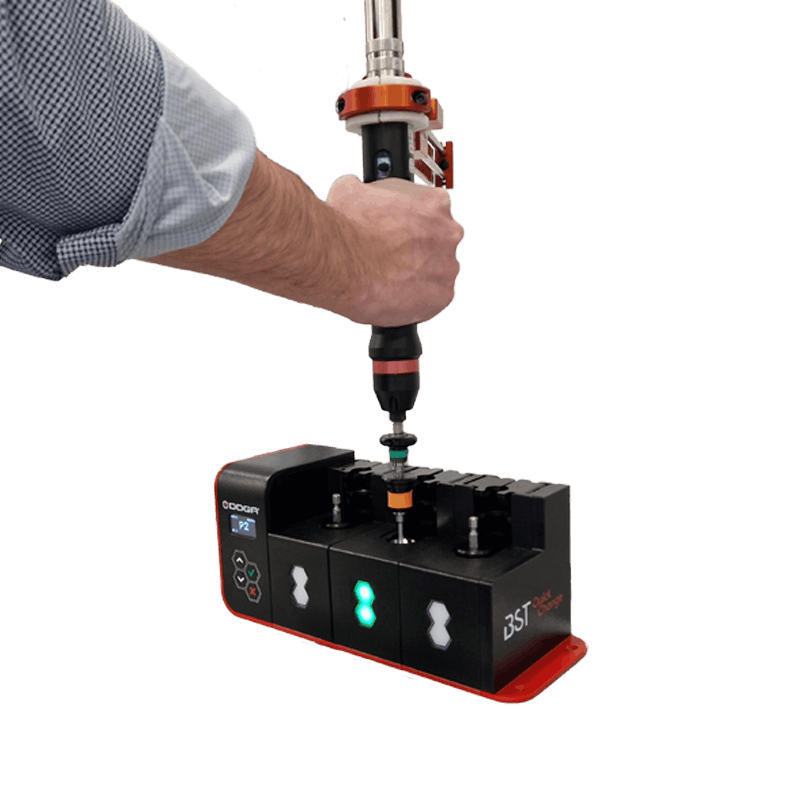

The Color ID BST-QC bit tray can be used in two different ways: either it tells the operator which bit to use to carry out the assembly operation, or it selects the tightening program linked to the bit when the operator picks it.
Compatible with the use of a reaction arm.
Compatible with the use of a reaction arm.
Its self-learning configuration requires no machining, coding or factory setting like most bit trays. The correct bit is always assured by color recognition.
Thanks to its modular design, built around a base module and its configuration display, you can expand your system with up to 8 quick-change bit modules and simplify your workstation installations with the separator.
Features
• Connection with the I/O tor screwdriver's controller
• Réglage facile en fonction de la longueur et du diamètre des embouts
• Auto-apprentissage des couleurs pour chaque position des embouts
• Attribution du mode et du programme pour chaque embout
• Languages available: french / English / Italian / German / Spanish / Czech
• Included 100-240 V 1 A / 24 VDC power supply
• Included fast socket holder
• Dimensions: length 62 mm, height 130 mm, depth 120 mm
• Réglage facile en fonction de la longueur et du diamètre des embouts
• Auto-apprentissage des couleurs pour chaque position des embouts
• Attribution du mode et du programme pour chaque embout
• Languages available: french / English / Italian / German / Spanish / Czech
• Included 100-240 V 1 A / 24 VDC power supply
• Included fast socket holder
• Dimensions: length 62 mm, height 130 mm, depth 120 mm
Specifications
• Base module with configuration display Color ID BST-QC - Standard UE plug
Code article : P217683
Code article : P217683
• Base module with configuration display Color ID BST-QC - Standard UK plug
Code article : P217684
Code article : P217684
• Base module with configuration display Color ID BST-QC - Standard US plug
Code article : P217685
Code article : P217685
• Quick changer module with color detection - In addition to an initial base module with configuration display Color ID BST-QC
Code article : P206175
Code article : P206175
Accessories
• Module separator kit BST-QC to create a workstation that meets your needs
• Replacement bit holders
• 21 colored heat-shrink sleeves kits BST-QC
• Replacement bit holders
• 21 colored heat-shrink sleeves kits BST-QC
Associated products
Bits, special bits, bits holders and accessories
Designed for the most demanding industrial uses, our range of bits is one of the most complete on the market.
Resources
1Commercial documentation
marketing
Bit trays and socket trays - DOC.60314
⦁ Bit socket trays
⦁ Socket trays
⦁ Accessories
