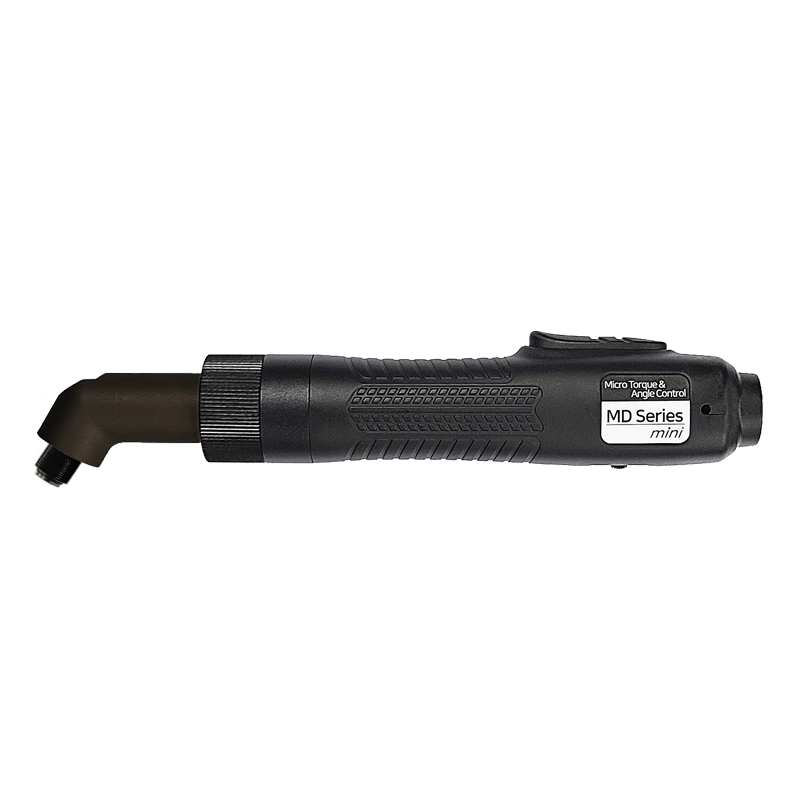

MDH 2220-A 120° E6.3 current control electric screwdriver
MDH 2220-A 120° E6.3 current control electric screwdriver
Lightweight and ultra-compact, the MDH2220-A 120° E6.3 angle screwdriver is designed for microtorque tightening operations (from 0.25 to 1 Nm) requiring repeatability (3%) and traceability of tightening torques. It is ideal for hard-to-reach applications requiring a 120° head tilt.
Technical details
Benefits
- 3% precision regardless of tightening elasticity
- Maintenance-free Maxon motor made in Switzerland
- Optimized weight and dimensions (twice lighter and less bulky than the MDH26 model)
- Ergonomic handle reduced hand / bit distance with a quick chuck (E6.3 Hex 1/4'')
- Quiet motor
- Traceability of tightening torques via Ethernet
- Visualization of the curves
- Anti-error system
Product description
This mini angle screwdriver is equipped with integrated LEDs to illuminate the assembly area and with a quick-release chuck (E6.3) connection.
The angle head can be rotated 360° (4 positions: 0°, 90°, 180°, or 270°).
Easy to adjust thanks to its automatic programming mode via its color touch screen or PC software, it allows you to optimize your operating speed.
15 torque / angle or angle / torque tightening strategies of 10 steps each are available.
The use in automatic sequence mode makes it possible to carry out a complete tightening cycle with counting and accessory control functions (presence sensor, pick to light, alarm, etc.) thanks to the assignable inputs / outputs.
The tightening curves are visualized in real time.
Data are stored and transferable via Ethernet or RS232.
Associated products
MDC controllers
ParaMon-Pro X controller
Resources
3Plan
1Commercial documentation
Torque and angle control screwdrivers - MD series - DOC.60303
- Straight screwdrivers - MD series
- Pistol screwdrivers - MDP series
- Angle head screwdrivers - MDH series
- Spindle for automation - MDA series
- MDC controllers
- Programming software
- Accessories and services provided
- Additional products
- Our services
4Software
ParaMon software
For BM, BMT, MDCv2, MDC Mini and MDTC series and ParaMon-Pro X controller.
Including:
- ParaMon III:
PC software for network tools management, setup and backup via an integrated database.
- Controller firmware and LCD firmware
Update compatible with any actual tool and controller (except MDCv1 legacy product).
Files version:
- BM_FW v1.34.3 + XML v1.10
- BM_FW_v1.54.5_RS9116+XML_v1.10
- BMT_FW v1.44.3 + XML v1.10
- BMT_FW_v1.54.5_RS9116+XML_v1.10
- MDC22_MINI_FW_v3.01.2+XML_v1.10
- MDC26&32_FW_v2.32.7+XML_v1.10
- MDTC38_Normal_FW_v1.34.4+XML_v1.12
- ParaMon_v3.00.8_20240517
- ParaMon III user manual - DOC.60505
- 60205 ParaMon XML vs Firmware 11-2025
2Technical documentation
COM Modbus MDC V2 / MDT protocol and registers lists - DOC.60430 - DOC.60454 - DOC.60455
- Com Protocole MODBUS MDv2 MDT – DOC.60430
- Modbus MDCv2 address and function – DOC.60454
- Modbus MDTC address and function – DOC.60455
COM OPEN Protocol MD(T) / BM(T) series user manual - DOC.60428
1- Controller firmware version
2- Communication type
3- Message structure
4- Communication flow
5- Communication messages
Instructions manual torque and angle control tools - MD series / MDC V2 - MU.60342
- General safety rules
- Product
- Main features
- Screwdriver
- Screwdriver cables
- Controller MDC V2
- Operation
- Firmware upgrade
- Torque calibration and compensation
- Error code
- Web server
- Parameter details and factory setting
- MOSBUS COM protocol
- Maintenance
- Standard
