Assembly technology

DPTS 60 shut-off pulse screwdriver

Code 4-1080010

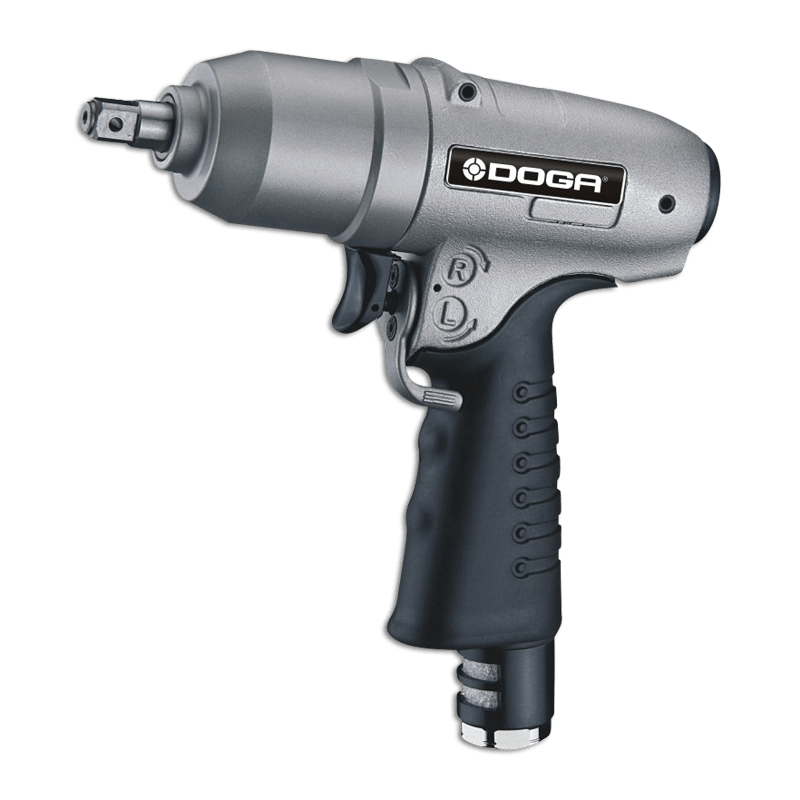

DPTS 60 shut-off pulse screwdriver

Code 4-1080010

The DPTS-60 adjustable automatic shut-off impulse pistol screwdriver is fast, precise, torque reaction free. It is equipped with a square male drive for 3/8” sockets.

Technical details

Type of screwdriver
Shut-off pulse screwdriver
Min Torque
20 Nm lbf.in
Max Torque
35 Nm lbf.in
Vibration
3.1 m/s2 m/s2
Speed rotation 5 bars
5900 tr/min rpm
Speed rotation 6 bars
6200 tr/min rpm
Drive Size
3/8 Square
Weight
1 kg lbs
Shape
Pistol
Starting system
Trigger
Power
Pneumatic
Air inlet
G1/4

Benefits

Comfort
  • No torque reaction for the operator’s wrist
  • Lightweight
  • Compact
Productivity
  • High rotation speed: 6200 rpm at 6 bar
Quality
  • Tightening accuracy thanks to the adjustable automatic shut-off

Product description

The DPTS-60 impulse screwdriver is ideal for fast, accurate tightening, on a rigid joint thanks to its adjustable automatic shut-off.
Lightweight and compact, it is extremely comfortable and torque reaction free.
Cycle times and operator comfort are optimized thanks to high rotation speeds and an unparalleled weight / power ratio.

Resources

1Commercial documentation

60216

Auto shut-ohh impulse tools - DPTS series - DOC.60216

For extraordinary speed and power

  • DPTS pistol series
  • DPTS straight series
  • DPTS angle head series
  • Accessories
Download the file in pdf

2Technical documentation

Instructions manual - DPTS impulse wrenches & screwdrivers - DOC.60204

- General safety rules
- Replacement and maintenance
- Steps for torque adjustment - Pistol type/straight type/200 model/angle type
- Parts list
- Trouble shooting
- Vibration of models

Download the file in pdf
