DPTC 25 SD3/8 cordless shut-off pulse screwdriver

Code 4-1036018

DPTC 25 SD3/8 cordless shut-off pulse screwdriver

Code 4-1036018

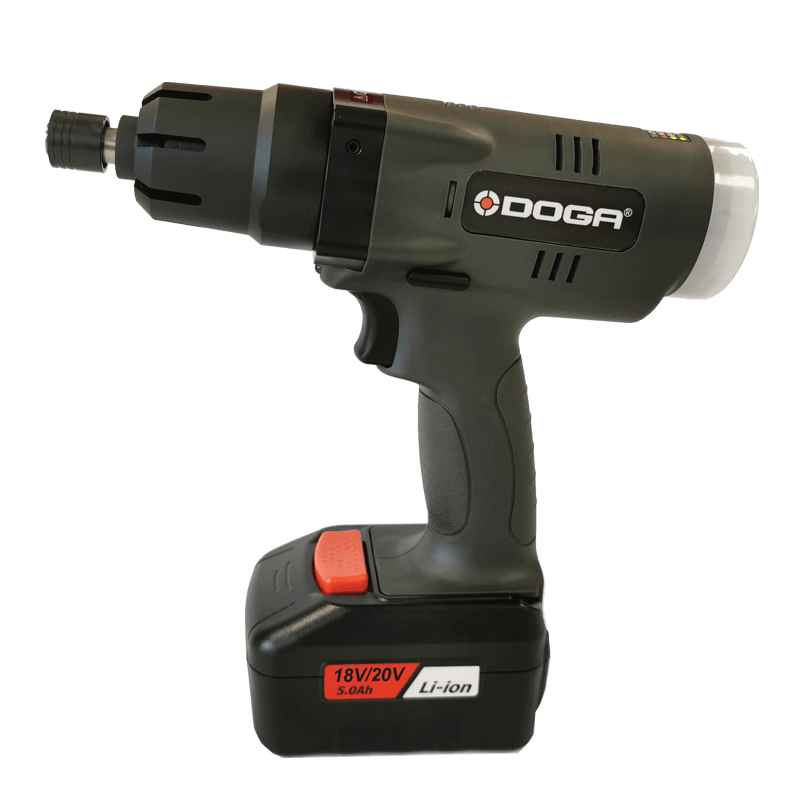

The DPTC-25 SD3/8 Li-ion battery-powered pistol screwdriver  with automatic adjustable, time-delay shut-off is fast, accurate and torque reaction free. It is equipped with a 3/8” male square drive.

Technical details

Type of screwdriver
Cordless shut-off pulse screwdriver
Min Torque
15 Nm lbf.in
Max Torque
25 Nm lbf.in
Nominal speed
4500 tr/min rpm
Drive Size
3/8 Square
Weight
1.24 kg lbs
Shape
Pistol
Starting system
Trigger
Power
Li-on Battery

Benefits

Durability
  • The maintenance-free Brushless motor is protected by a gear train
Precision
  • Compatible with rigid and semi-elastic tightening thanks to its automatic, time-delay shut-off system
Economy
  • Maintenance-free Brushless motor
Comfort
  • Torque reaction free
  • Quality manufacturing
  • Audio and visual assistance for the operator

Product description

The DPTC-25 SD3/8 Li-ion battery-powered impulse screwdriver is designed for heavy-duty industrial tightening applications.
Fast, lightweight, torque reaction free, it increases your productivity and is extremely comfortable for your operators.
This impulse screwdriver also has great versatility on rigid and semi-elastic joints thanks to its automatic time-delay shut-off system and its adjustable rotation speeds (optional with the SP-18 V2 programmer).

Resources

1Commercial documentation

DPTC cordless impulse tools - DOC.60259

DPTC range
Accessories

Download the file in pdf

2Technical documentation

DPTC-15 HD ¼, DPTC-15 SD 3/8, DPTC-25 HD ¼, DPTC-25 SD 3/8, DPTC-35 HD ¼, DPTC-35 SD 3/8, DPTC-45 HD 3/8 instructions manual (EN) - MU.60260

- Screwdriver functional guides
- Wrench functional guides
- Safety rules
- Functional description for scewdriver
- Functional description for wrench
- Assembly
- Operations
- Lamp indications
- Specifications

Download the file in pdf
