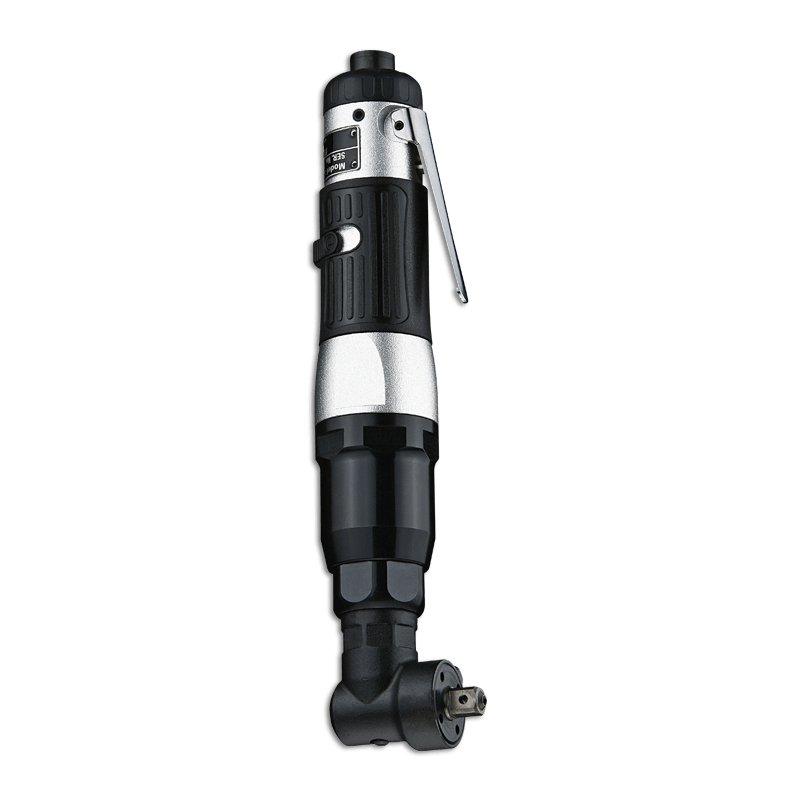

DPTS 70RA shut-off pulse screwdriver
Code 4-1080050
DPTS 70RA shut-off pulse screwdriver
Code 4-1080050
The DPTS 70RA adjustable automatic shut-off angle impulse screwdriver is fast, accurate and torque reaction free. It is equipped with a 3/8” male square drive.
Technical details
Type of screwdriver
Shut-off pulse screwdriver
Min Torque
20 Nm
Max Torque
31 Nm
Vibration
8.4 m/s2
Speed rotation 5 bars
4200 tr/min
Speed rotation 6 bars
4500 tr/min
Drive Size
3/8 Square
Weight
1.4 kg
Shape
Angle head
Starting system
Lever
Power
Pneumatic
Air inlet
G1/4
Benefits
Comfort
- No torque reaction for the operator’s wrist
- Lightweight
- Compact
Productivity
- High rotation speed: 4500 rpm at 6 bar
Quality
- Tightening accuracy thanks to the adjustable automatic shut-off
Product description
The DPTS-70RA impulse screwdriver is ideal for fast, accurate tightening, on a rigid joint thanks to its adjustable automatic shut-off.
Lightweight and compact, it is extremely comfortable and torque reaction free.
Cycle times and operator comfort are optimized thanks to high rotation speeds and an unparalleled weight / power ratio.
Resources
Commercial documentation (1)
Technical documentation (1)
marketing
Auto shut-ohh impulse tools - DPTS series - DOC.60216
For extraordinary speed and power
- DPTS pistol series
- DPTS straight series
- DPTS angle head series
- Accessories
technical
