Assembly technology

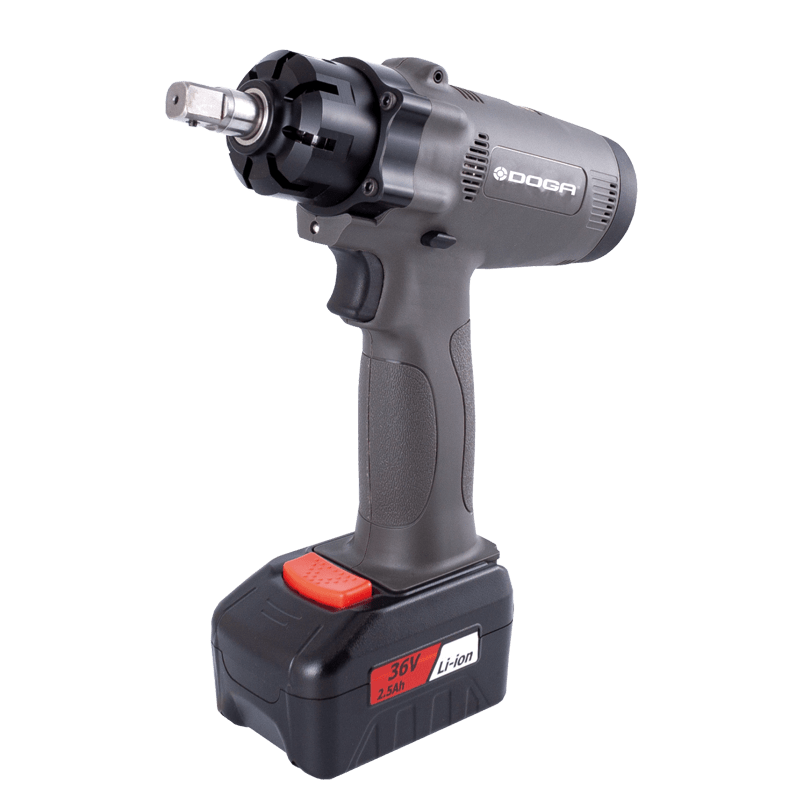

DPTC-2 110 SD12 cordless impulse screwdriver

Code P212106

DPTC-2 110 SD12 cordless impulse screwdriver

Code P212106

Ideal for intensive industrial tightening applications with strict torque tolerances, this new generation of 36 volts hydrostatic screwdriver with 1/2’’ square drive allows quick and precise assemblies without any torque reaction and while limiting vibrations.

Contact us

Technical details

Type of screwdriver
Cordless shut-off pulse screwdriver
Min Torque
56 Nm lbf.in
Max Torque
110 Nm lbf.in
Nominal speed
3800 tr/min rpm
Drive Size
1/2 Square
Weight
2 kg lbs
Shape
Pistol
Starting system
Trigger
Power
Batterie Li-ion 36 V
Functionalities
Torque reach signal

Benefits

PRECISION

  • Automatic shut-off technology that applies
    controlled torque while limiting vibrations.

PERFORMANCE
  • Maintenance-free brushless motor that offers better performance with precise speed, torque control and a long service life.
MOBILITY
  • Battery powered for complete freedom of movement.
  • Lithium-ion battery that guarantees extended battery life, faster charging, and reduced weight.
ERGONOMICS
  • Any torque reaction.
  • Low vibration level.
  • Lightweight and balanced design.
  • Noiseless operation.
  • Audio and visual assistance for the operator.

  • Extended drive shaft for guided sockets mounting.

Product description

Hard joint torque: 80 to 110 Nm
Soft joint torque: 56 to 77 Nm

Supplied with a torque adjustment key.
The charger and battery are sold separately.

Associated products

Resources

1Commercial documentation

Cordless impulse tools DPTC-2 serie - DOC.60524

DPTC-2 impulse screwdrivers - 18 volts
DPTC-2 impulse screwdrivers - 36 volts
Batteries
Chargers
Protections
SP-18-V2 programmer
Guided sockets
Sleeve drive adaptors

Download the file in pdf

Frequently Asked Questions

Guide to choosing DPTC-2 series cordless impulse screwdriver

Screwdrivers are designed for use with hard and soft joints (up to 180° after the screw is tightened).
When using on soft or highly soft joints (> 180° after tightening), choose a screwdriver model that will operate at the bottom of its torque range.

e.g.:

  • For an soft joint at 30 Nm, DPTC-2-60 model is more suitable than DPTC-2-45 model.
  • For an soft joint at 50 Nm, DPTC-2-90 model is more suitable than DPTC-2-80 model.

The recommended use is 6 tightenings per minute, to be balanced with the rate and frequency of use of the screwdriver.
