DSEL PA50G650 shut-off pneumatic screwdriver

Code 4-1588806

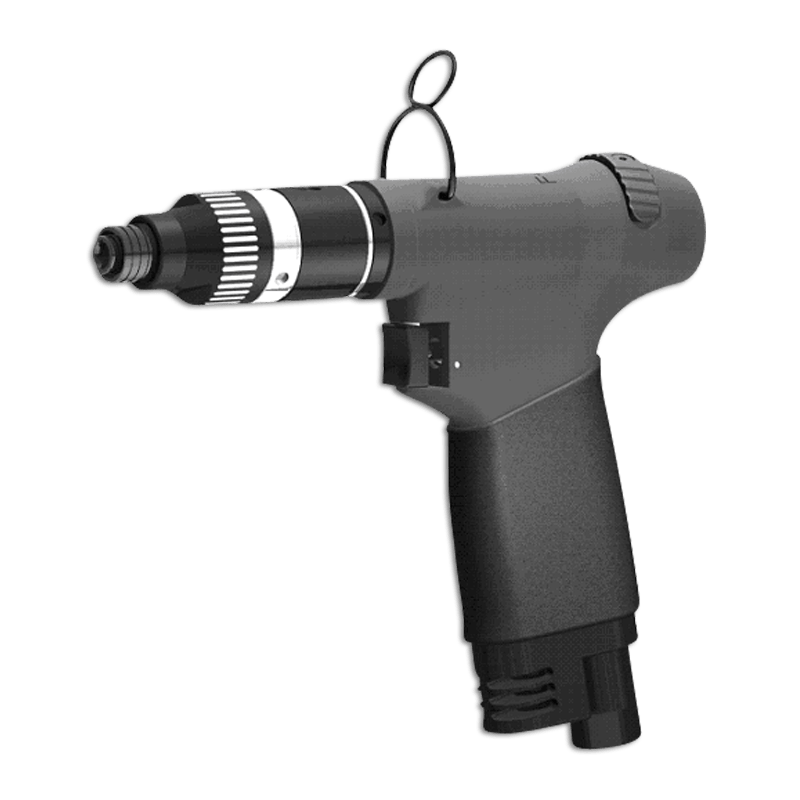

DSEL PA50G650 shut-off pneumatic screwdriver

Code 4-1588806

The DSEL PA50G650 pneumatic screwdriver is mainly intended for horizontal use. The startup is trigger activated. It is equipped with an air-cutoff clutch which guarantees tightening precision.

Technical details

Type of screwdriver
Shut-off pneumatic screwdriver
Min Torque
0.4 Nm lbf.in
Max Torque
5 Nm lbf.in
Nominal speed
650 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.72 kg lbs
Shape
Pistol
Starting system
Trigger
Power
Pneumatic
Air inlet
G1/4
Noise level
73
Air flow
510

Benefits

Productivity
  • Power and rotation speed are optimized thanks to its 5-blade pneumatic motor
Comfort
  • The push-to-start is facilitated by a flared ring located at the tip of the tool
  • The body of the screwdriver is covered with a bi-material non-slip flexible ergonomic sheath
Quality production
  • The torque is durably reproduced with precision thanks to an air-cutoff clutch
  • The start lever optimizes startup control
  • The processing of 2CS pneumatic signals on the screwdriver secures tightening operations
Economy
  •  The simple mechanical design gives it maximum robustness for minimum maintenance

Product description

Robust and lightweight, the DSEL PA50G650 screwdriver has an ergonomic design that brings maximum comfort over long periods of use.
Its pistol grip is covered with a non-slip, flexible, ergonomic rubber coating. Positioned at the center of the tool, it ensures perfect balance.
Equipped with a start-up trigger and a mechanical clutch with cutting-edge air-cutoff, it combines precision of movement and quality tightening.
