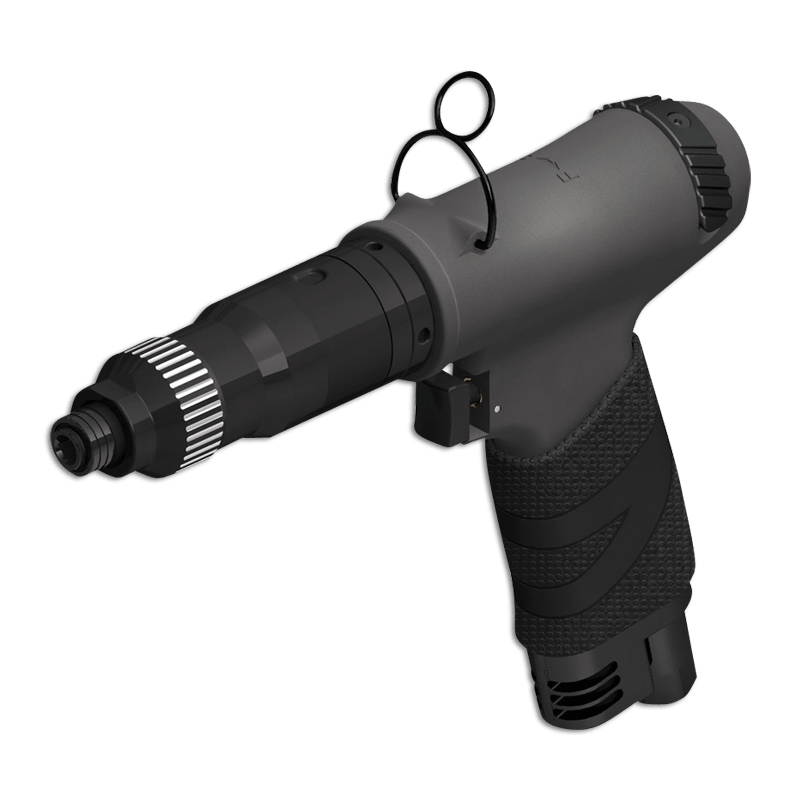

DSEI PA40G2000 2CS shut-off pneumatic screwdriver

Code 4-1501715

DSEI PA40G2000 2CS shut-off pneumatic screwdriver

Code 4-1501715

The DSEI PA40G2000 2CS pneumatic screwdriver is mainly intended for horizontal use. The startup is trigger activated. It is equipped with an air-cutoff clutch which guarantees tightening precision and with two air intakes referred to as 2CS.

Technical details

Type of screwdriver
Shut-off pneumatic screwdriver
Min Torque
0.4 Nm lbf.in
Max Torque
4 Nm lbf.in
Nominal speed
2000 tr/min rpm
Drive Size
1/4" F/Hex
Weight
1 kg lbs
Shape
Pistol
Starting system
Trigger
Power
Pneumatic
Functionalities
Torque reach signal
Air inlet
G1/4
Noise level
73
Air flow
760

Benefits

Productivity
  • Efficiency, power and rotation speed are optimized thanks to its 5-blade pneumatic motor
Comfort
  • The pistol handle makes it easier to push
  • The central position of the handle gives the tool perfect balance
  • Covered with a rubber sheath, the handle is non-slip, flexible and ergonomic
Quality production
  • The torque is precisely repeated thanks to an air-cutoff clutch
  • Trigger start optimizes start control
  • The processing of 2CS pneumatic signals on the screwdriver secures tightening operations
Economy
  •  The simple mechanical design gives it maximum robustness for minimum maintenance

Product description

Robust and lightweight, the DSEI PA40G2000 2CS screwdriver has an ergonomic design that brings maximum comfort over long periods of use.
Its pistol grip is covered with a non-slip, flexible, ergonomic rubber coating. Positioned at the center of the tool, it ensures perfect balance.
Equipped with a start-up trigger and a mechanical clutch with cutting-edge air-cutoff, it combines precision of movement and quality tightening.
2CS pneumatic signals are collected on the start trigger and the evacuation outlet.
Their treatment with simple pressure switches makes it possible to determine whether the tightening cycle is ok / nok.

Resources

1Commercial documentation

Pneumatic tools – DSE series - DOC.60243

Straight tools
Pistol tools
Angle tools
Accessories / Options

Download the file in pdf

2Technical documentation

Thumbnail

Manuel d'utilisation visseuses pneumatiques / Instructions manual pneumatic screwdrivers – DSE serie (FR / EN) - DOC.40913

Recommandations générales
Installation
Recommandations d'utilisation / General safety rules
Maintenance et réparation / Replacement and maintenance
Stockage après utilisation
Démolition
Emballages
Fonctionnement / Tool use
Conditions de garantie / Warranty terms

Download the file in pdf

Frequently Asked Questions

What does 2CS mean?

2CS means 2 Signal Cutoffs.
2CS screwdrivers are designed to send the captured pneumatic signals during tightening indicating if the torque is achieved.

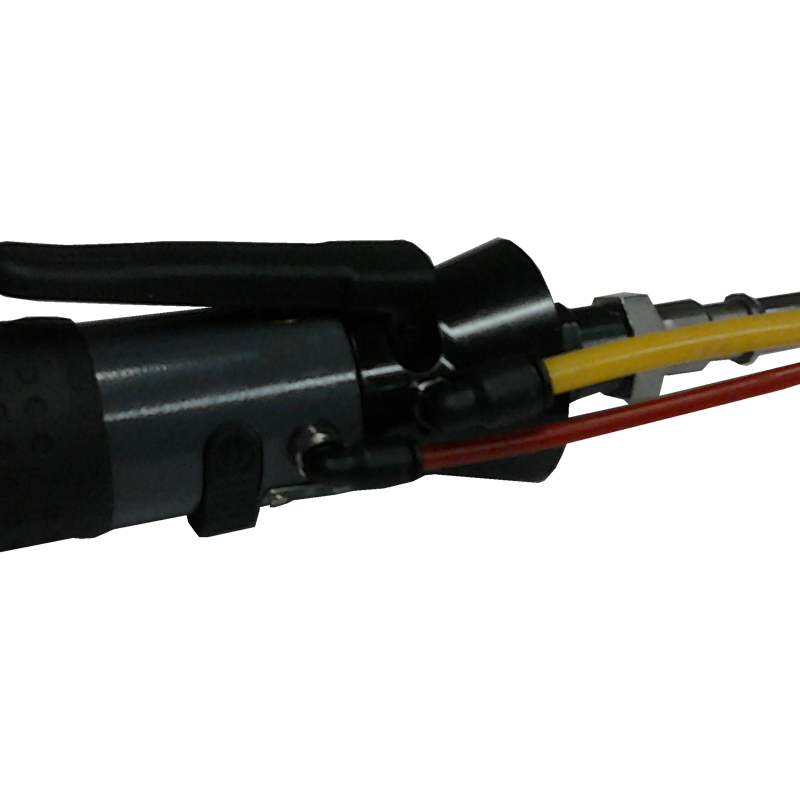

It is in fact about recovering 2 pneumatic flows on the screwdrivers through 2 connections tightened into them.
- one at the start air inlet
- one at the air evacuation outlet
The treatment of these flows by simple equipment and their change of state before, during and after tightening determines whether the tightening cycle is ok / nok.
