DSEL A35L1400 2CS shut-off pneumatic screwdriver

Code 4-1501720

DSEL A35L1400 2CS shut-off pneumatic screwdriver

Code 4-1501720

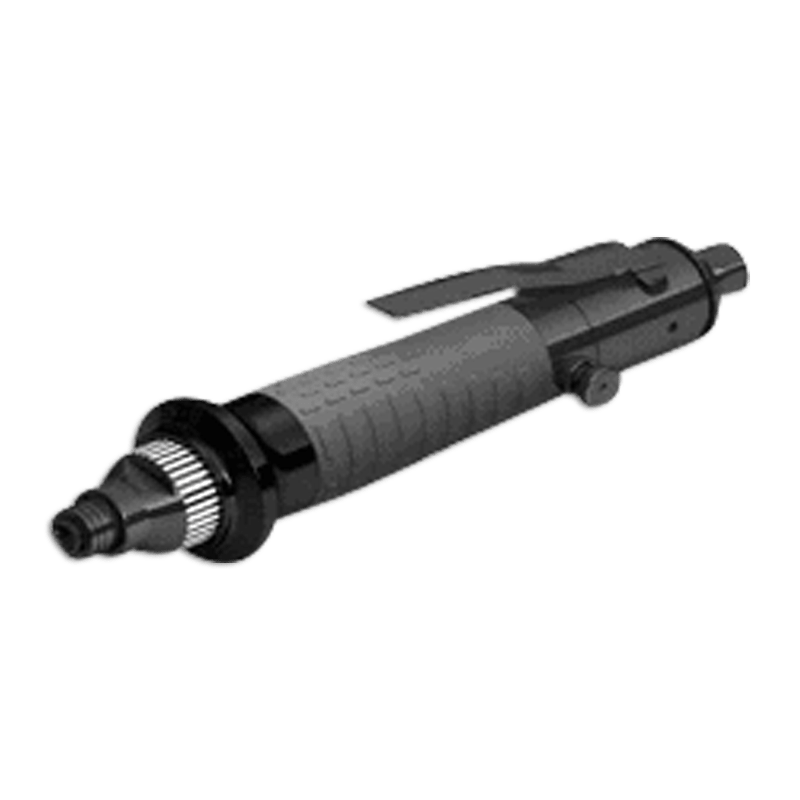

The DSEL A35L1400 2CS pneumatic axial screwdriver is intended for vertical use. The startup is activated by a lever. It is equipped with an air-cutoff clutch which guarantees tightening precision and with two air intakes referred to as 2CS.

Technical details

Type of screwdriver
Shut-off pneumatic screwdriver
Min Torque
0.4 Nm lbf.in
Max Torque
3.5 Nm lbf.in
Nominal speed
1400 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.6 kg lbs
Shape
Straight
Starting system
Lever
Power
Pneumatic
Functionalities
Torque reach signal
Air inlet
G1/4
Noise level
73
Air flow
460

Benefits

Productivity
  • Power and rotation speed are optimized thanks to its 5-blade pneumatic motor
Comfort
  • The push-to-start is facilitated by a flared ring located at the tip of the tool
  • The body of the screwdriver is covered with a bi-material non-slip flexible ergonomic sheath
Quality production
  • The torque is durably reproduced with precision thanks to an air-cutoff clutch
  • The start level optimizes startup control
  • The processing of 2CS pneumatic signals on the screwdriver secures tightening operations
Economy
  •  The simple mechanical design gives it maximum robustness for minimum maintenance

Product description

Robust and lightweight, the DSEL A35L1400 2CS screwdriver has an ergonomical design that brings maximum comfort over long periods of use.
Its body is covered with a bi-material, non-slip, slightly curved coating that follows the shape of the palm.
The vertical push is facilitated by a flared ring serving as a support at the tip of the tool.
Equipped with a Push to Start system and a mechanical clutch with cutting-edge air-cutoff, it combines productivity and quality assembly.

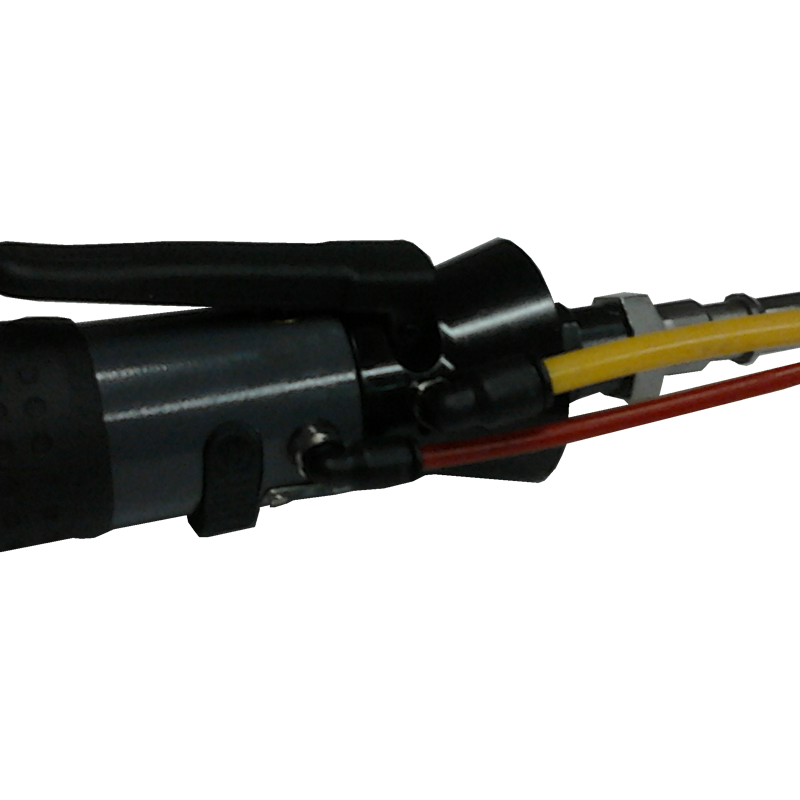

2CS pneumatic  signals are collected on the starter lever and the evacuation outlet.
Their processing with simple pressure switches makes it possible to determine if the tightening cycle is ok / nok.

Resources

1Commercial documentation

Pneumatic tools – DSE series - DOC.60243

Straight tools
Pistol tools
Angle tools
Accessories / Options

Download the file in pdf

2Technical documentation

Thumbnail

Manuel d'utilisation visseuses pneumatiques / Instructions manual pneumatic screwdrivers – DSE serie (FR / EN) - DOC.40913

Recommandations générales
Installation
Recommandations d'utilisation / General safety rules
Maintenance et réparation / Replacement and maintenance
Stockage après utilisation
Démolition
Emballages
Fonctionnement / Tool use
Conditions de garantie / Warranty terms

Download the file in pdf

Frequently Asked Questions

What does 2CS mean?

2CS means 2 Signal Cutoffs.
2CS screwdrivers are designed to send the captured pneumatic signals during tightening indicating if the torque is achieved.
It is in fact about recovering 2 pneumatic flows on the screwdrivers through 2 connections tightened into them.
- one at the start air inlet
- one at the air evacuation outlet
The treatment of these flows by simple equipment and their change of state before, during and after tightening determines whether the tightening cycle is ok / nok.
