DSEI A80L1000 2CS shut-off pneumatic screwdriver

Code 4-1501712

DSEI A80L1000 2CS shut-off pneumatic screwdriver

Code 4-1501712

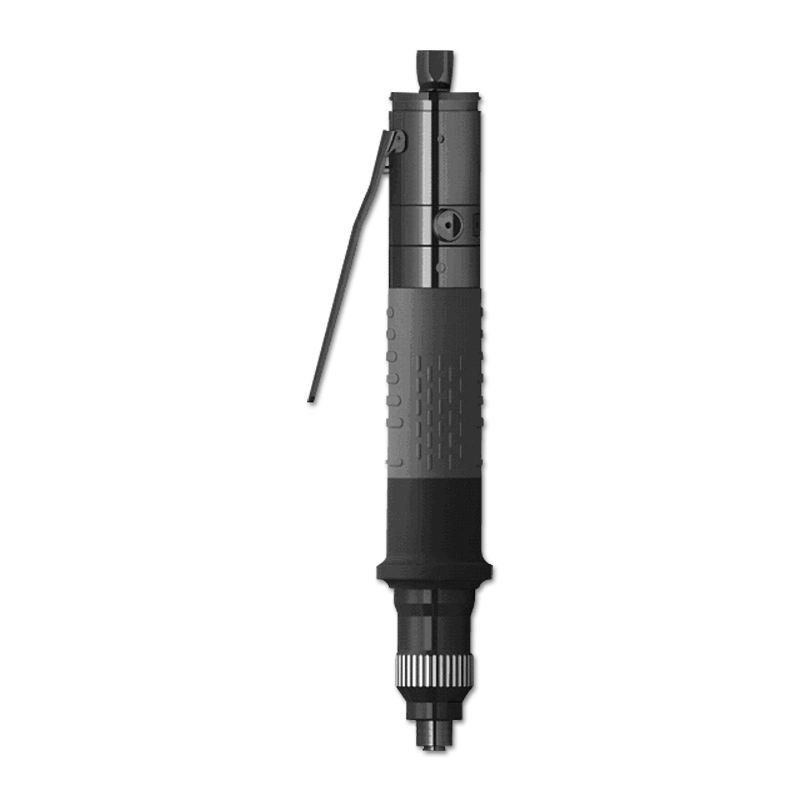

The DSEI A80L1000 2CS pneumatic axial screwdriver is intended for vertical use. The startup is activated by a lever. It is equipped with an air-cutoff clutch which guarantees tightening precision and with two air intakes referred to as 2CS.

Technical details

Type of screwdriver
Shut-off pneumatic screwdriver
Min Torque
3.5 Nm lbf.in
Max Torque
8 Nm lbf.in
Nominal speed
1000 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.93 kg lbs
Shape
Straight
Starting system
Lever
Power
Pneumatic
Functionalities
Torque reach signal
Air inlet
G1/4
Noise level
73
Air flow
500

Benefits

Productivity
  • Power and rotation speed are optimized thanks to its 5-blade pneumatic motor
Comfort
  • The push-to-start is facilitated by a flared ring located at the tip of the tool
  • The body of the screwdriver is covered with a bi-material non-slip flexible ergonomic sheath
Quality production
  • The torque is durably reproduced with precision thanks to an air-cutoff clutch
  • The start lever optimizes startup control

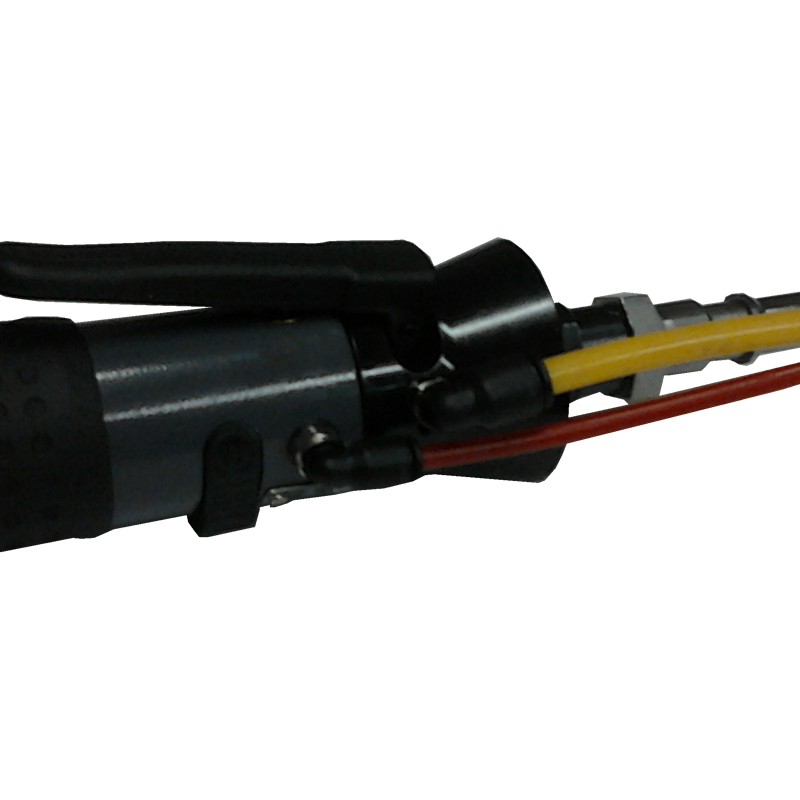

  • The processing of 2CS pneumatic signals on the screwdriver secures tightening operations
Economy
  •  The simple mechanical design gives it maximum robustness for minimum maintenance

Product description

Robust and lightweight, the DSEI A80L1000 2CS screwdriver has an ergonomic design that gives the operator maximum comfort over long periods of use.
Its body is covered with a non-slip coating with a massaging effect in the hand.
The vertical push is facilitated by a flared ring serving as a support at the tip of the tool.
Equipped with a Push-to-Start system and a mechanical clutch with cutting-edge air-cutoff, it combines productivity and tightening quality.
