Assembly technology

DSEL RA40L950 BITS shut-off pneumatic screwdriver

Code 4-1500902

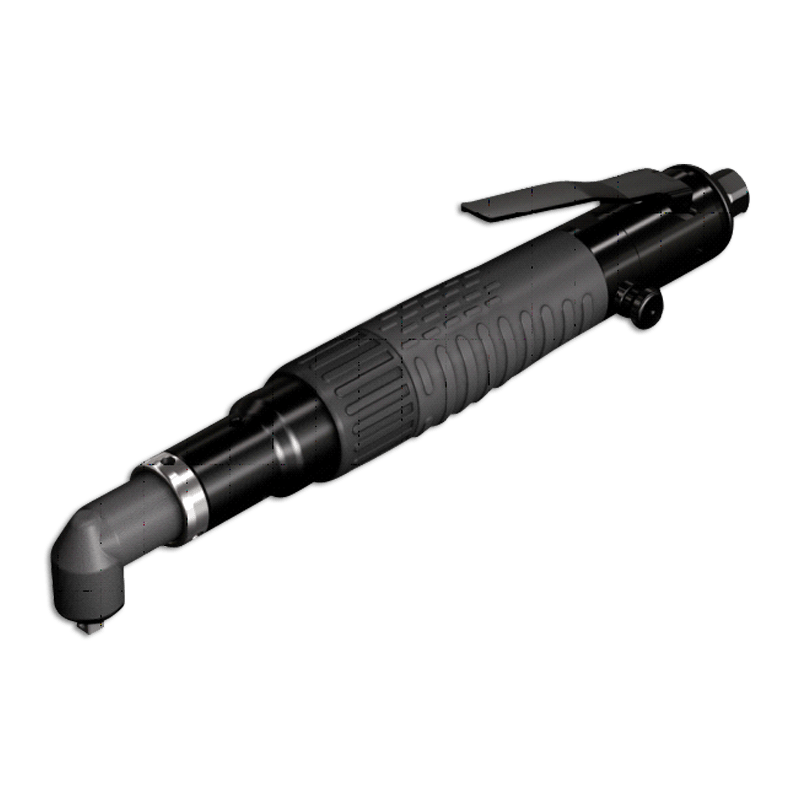

DSEL RA40L950 BITS shut-off pneumatic screwdriver

Code 4-1500902

The DSEL-RA40L950 BITS pneumatic angle screwdriver has a female hexagonal output for small capacity tightening in hard-to-reach and multi-plane environments. The startup is activated by a lever. It is equipped with an air-cutoff clutch which guarantees tightening precision.

Contact us
Technical details Benefits Product description Resources

Technical details

Type of screwdriver
Shut-off pneumatic screwdriver
Min Torque
0.8 Nm lbf.in
Max Torque
4 Nm lbf.in
Nominal speed
950 tr/min rpm
Drive Size
1/4" F/Hex
Weight
0.7 kg lbs
Shape
Angle head
Starting system
Lever
Power
Pneumatic
Air inlet
G1/4
Noise level
73
Air flow
460

Benefits

Productivity
  • Efficiency, power and rotation speed are optimized thanks to its 5-blade pneumatic motor
  • Equipped with hexagonal female output, it occupies minimum space.
Comfort
  • The lever arm of this angle tool cancels out the negative effects of the torque reaction
  • The body is covered with a bi-material, non-slip, flexible, ergonomic sheath.
Quality production
  • The torque is precisely repeated thanks to an air-cutoff clutch
  • The  start level optimizes startup control
Economy
  •  The simple mechanical design gives it maximum robustness for minimum maintenance

Product description

Robust and lightweight, the DSEL-RA40L950 BITS screwdriver features an ergonomic design that brings maximum comfort over long periods of use.
Equipped with an hexagonal female output, it accesses the smallest spaces.
Its body is covered with a bi-material, non-slip, slightly curved coating which follows the shape of the palm.
The lever arm of this angle tool cancels out the negative effects of the torque reaction.
Equipped with a start-up lever and a mechanical clutch with cutting-edge air-cutoff, it combines precision of movement and quality tightening.

Resources

1Commercial documentation

Pneumatic tools – DSE series - DOC.60243

Straight tools
Pistol tools
Angle tools
Accessories / Options

Download the file in pdf

2Technical documentation

Thumbnail

Manuel d'utilisation visseuses pneumatiques / Instructions manual pneumatic screwdrivers – DSE serie (FR / EN) - DOC.40913

Recommandations générales
Installation
Recommandations d'utilisation / General safety rules
Maintenance et réparation / Replacement and maintenance
Stockage après utilisation
Démolition
Emballages
Fonctionnement / Tool use
Conditions de garantie / Warranty terms

Download the file in pdf
